RASOR FP100L User Manual

Pneumatic cutting unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FP100L
PNEUMATIC
CUTTING UNIT
USE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP100L and is the answer not in the manual?

Questions and answers

Related Manuals for RASOR FP100L

Summary of Contents for RASOR FP100L

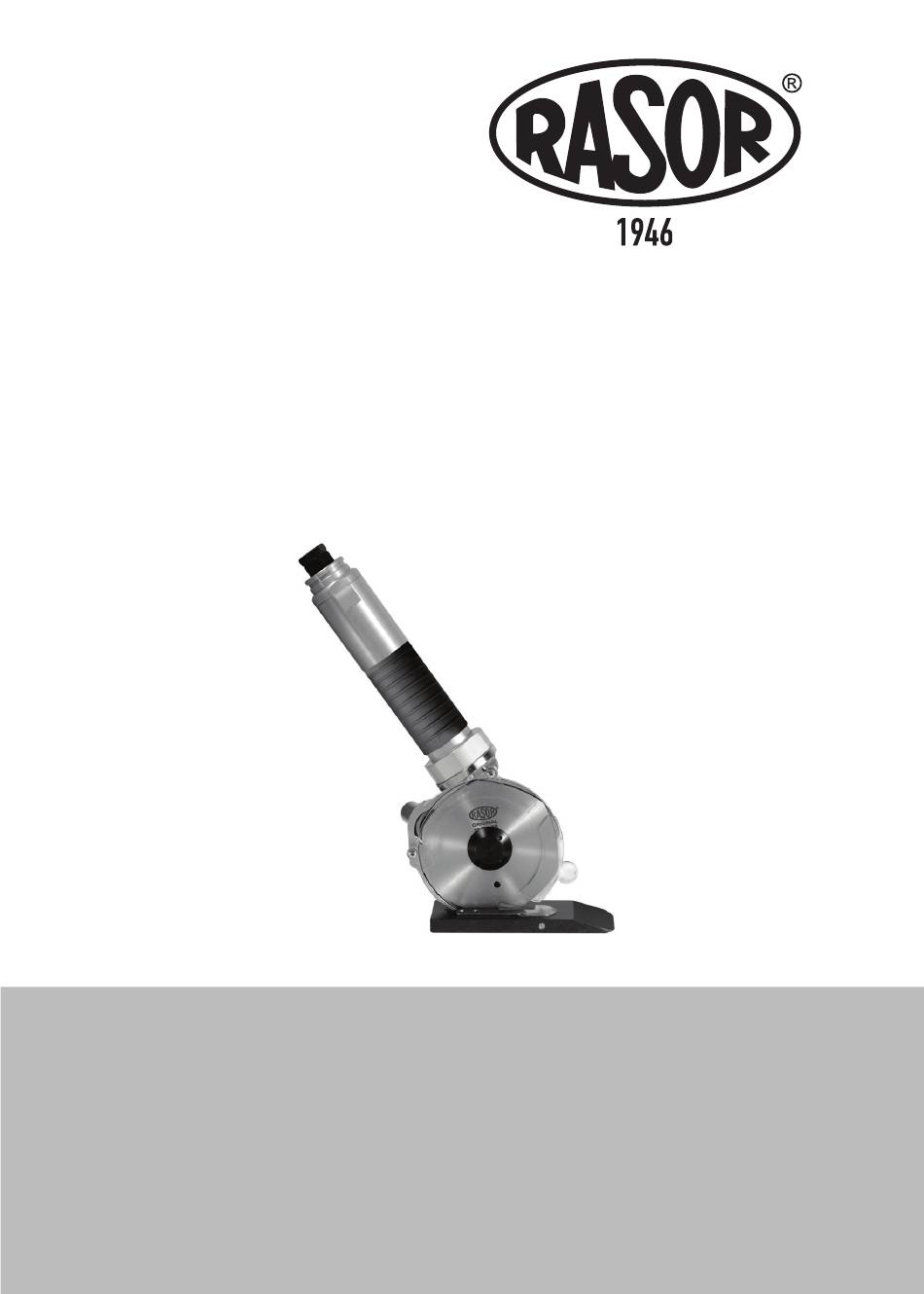

  • Page 1 FP100L PNEUMATIC CUTTING UNIT USE MANUAL...
  • Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...

  • Page 3: General Safety Rules

    1. GENERAL SAFETY RULES This manual is an integral part of cutting unit FP100L and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care.
  • Page 4 Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of ® explosions and at high risk of fire. In case of damage or malfunction, cutting unit FP100L must not be used until the Customer Care Technical Service has repaired them.

  • Page 5: Transport And Packaging

    READ THE INSTRUCTION MANUAL USE METAL GLOVES Model Serial number _ _ _ _ _ _ _ _ _ _ FP100L Motor USE GOGGLES Year of production data SHEARING RISK...

  • Page 6: Product Description

    (even hide). One special feature of cutting unit FP100L is its ability to sharpen the blade in each moment without disassembling it by means of a sharpener mounted on the cutting unit head. After carrying out this operation, it is possible to start cutting again.

  • Page 7: Technical Features

    This technical data is only indicative and may be subject to change without notice. 6. NOISE LEVEL The maximum acoustic pressure level emitted by cutting unit FP100L is about 72 dB (A). Noise tests have been carried out in compliance with Standard ISO 15744:2008. The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A).

  • Page 8: Use Warnings

     Always pay attention to the air pipe position to prevent it from being cut or damaged by the blade.  It is allowed to assemble cutting unit FP100L on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®...

  • Page 9: Installation And Use

    WARNING Never use the two bolts which fix the motor to the cutting part to fasten cutting unit FP100L. This operation may cause the motor shaft to break. In this case, warranty is not valid. 11. AIR PRESSURE GAUGE (OPTION) The cutting unit must be necessarily supplied with lubricated air with a pressure of 4-6 bar.

  • Page 10: Blade Sharpening

    To carry out this operation, remove protective plug “A” located on the cutting unit head and fill it with lubricating grease Rasor. Screw plug “A” again few turns. Screw plug “A” some turns every 3-4 consecutive working days (see picture 11).

  • Page 11: Blade Replacement

    5) Replace the worn blade with the new one “2”, being careful to center the blade on the gear, in the correct position, and remember to assemble it, so that the Rasor writing can be seen by the operator. 6) Assemble all the components again and carry out...

  • Page 12: Troubleshooting

    15. TROUBLESHOOTING PROBLEM SOLUTION Check the counterblade integrity Check the kind of fabric Sharpen the blade The fabric is not cut or it gets stuck between Check the fabric thickness the blade and the counterblade Check the compatibility between blade and fabric Make sure that the turbine turns correctly Reduce the feeding speed Carry out the lubrication...
  • Page 13 ® dal 1946...
  • Page 14 WARRANTY Rasor Elettromeccanica S.r.l. cutting unit has a 12 month warranty from the date indicated ® on the last page of this manual, except in case of different written agreements. The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop.
  • Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
