Summary of Contents for RASOR FP862MT

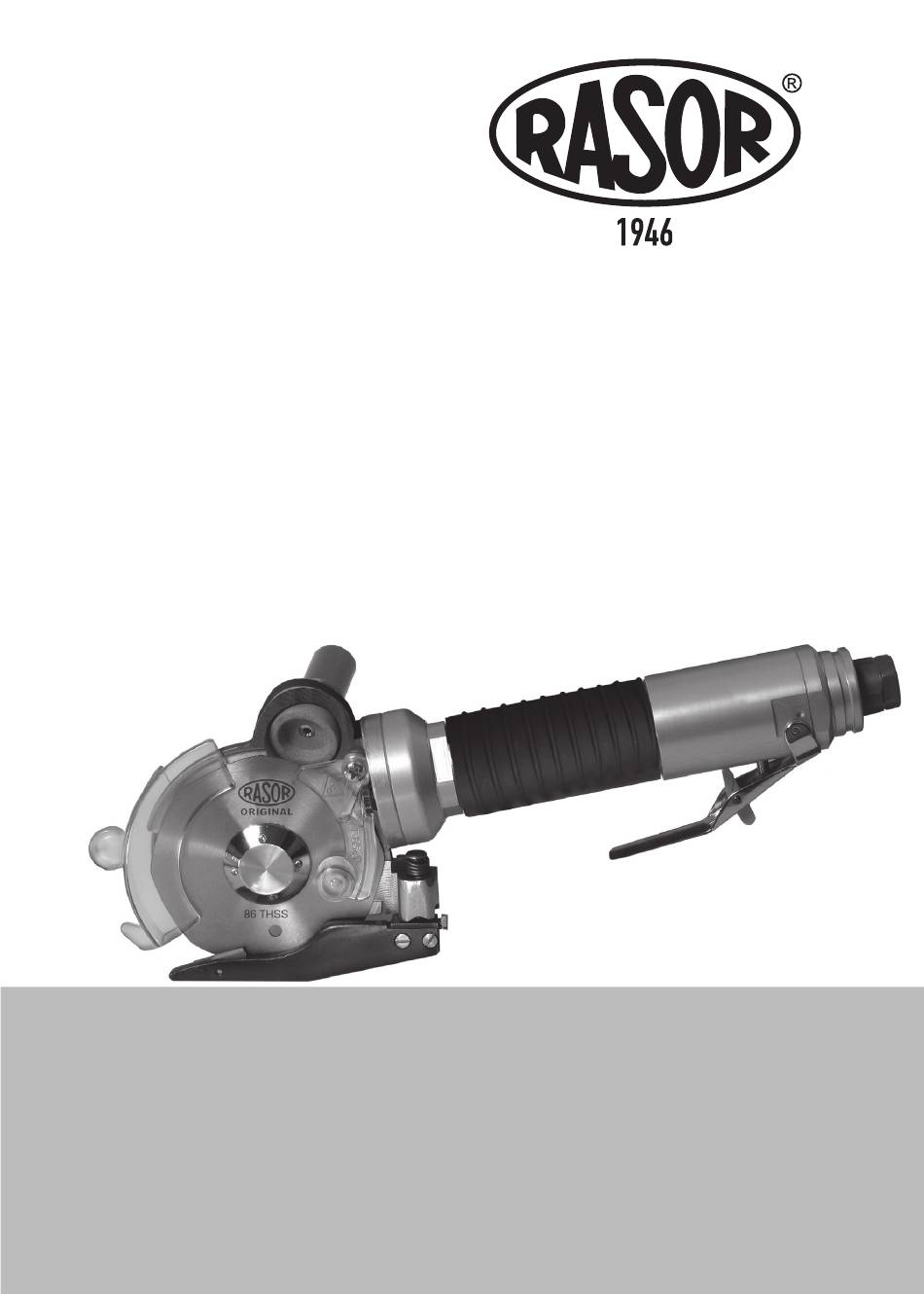

- Page 1 FP862 PNEUMATIC SCISSORS USE MANUAL...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of pneumatic scissors FP862MT and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. -
Page 4: Informative Letter
Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of ® explosions and at high risk of fire. In case of damage or malfunction, pneumatic scissors FP862MT must not be used until the Customer Care Technical Service has repaired them. Customer Care Technical Service... -
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Model FP862MT Serial number Year of production 1400... -
Page 6: Product Description
4. PRODUCT DESCRIPTION The fixture described in this manual is a pneumatic scissor model FP862MT which has been designed to cut composite materials such as Kevlar, fiberglass or carbon fibre. It is extremely versatile, light and precise in the cutting operation, suitable also for very difficult cuttings. -
Page 7: Technical Features
The technical data are only indicative and they can be changed without notice. 6. NOISE LEVEL The maximum acoustic pressure level emitted by pneumatic scissors FP862MT is about 60 dB (A). Noise tests have been carried out in compliance with Standard ISO 11202. The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A). -
Page 8: Use Warnings
Always pay attention to the position of the air pipe to prevent it from being cut or damaged by the blade. It is allowed to assemble pneumatic scissors FP862MT on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... -
Page 9: Residual Risks
9. RESIDUAL RISKS Even though the pneumatic scissors are safe, operators must pay attention to preserve their and other people’s safety. The cutting blade can work even when the protective device is disassembled. 10. USE To use the pneumatic scissors manually, proceed as follows: Lay the material to be cut on the table;... -
Page 10: Blade Sharpening
11. AIR PRESSURE GAUGE (OPTIONAL) The pneumatic scissors must be necessarily fed with lubricated air with a pressure of maximum 6 bar. Rasor offers, as optional, a reduction unit filter with ® a pressure gauge already calibrated with the quantity of oil to be delivered as optional. -
Page 11: Blade Replacement
(the one with the writing Rasor) positioned towards the external side of the pneumatic scissors. 6) Assemble all the components again and carry out some cutting and sharpening tests. -
Page 12: Troubleshooting
15. TROUBLESHOOTING • PROBLEM • SOLUTION Check the counterblade integrity Check the kind of fabric Sharpen the blade Check the fabric thickness The fabric is not cut or it gets stuck between the blade and the counterblade Check the compatibility between blade and fabric Make sure that the turbine turns correctly Check the force of the steel foot springs Reduce the feeding speed... -
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. In case of returned goods for repair under warranty, the Customer must send to Rasor ®... - Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
