Summary of Contents for RASOR FP100

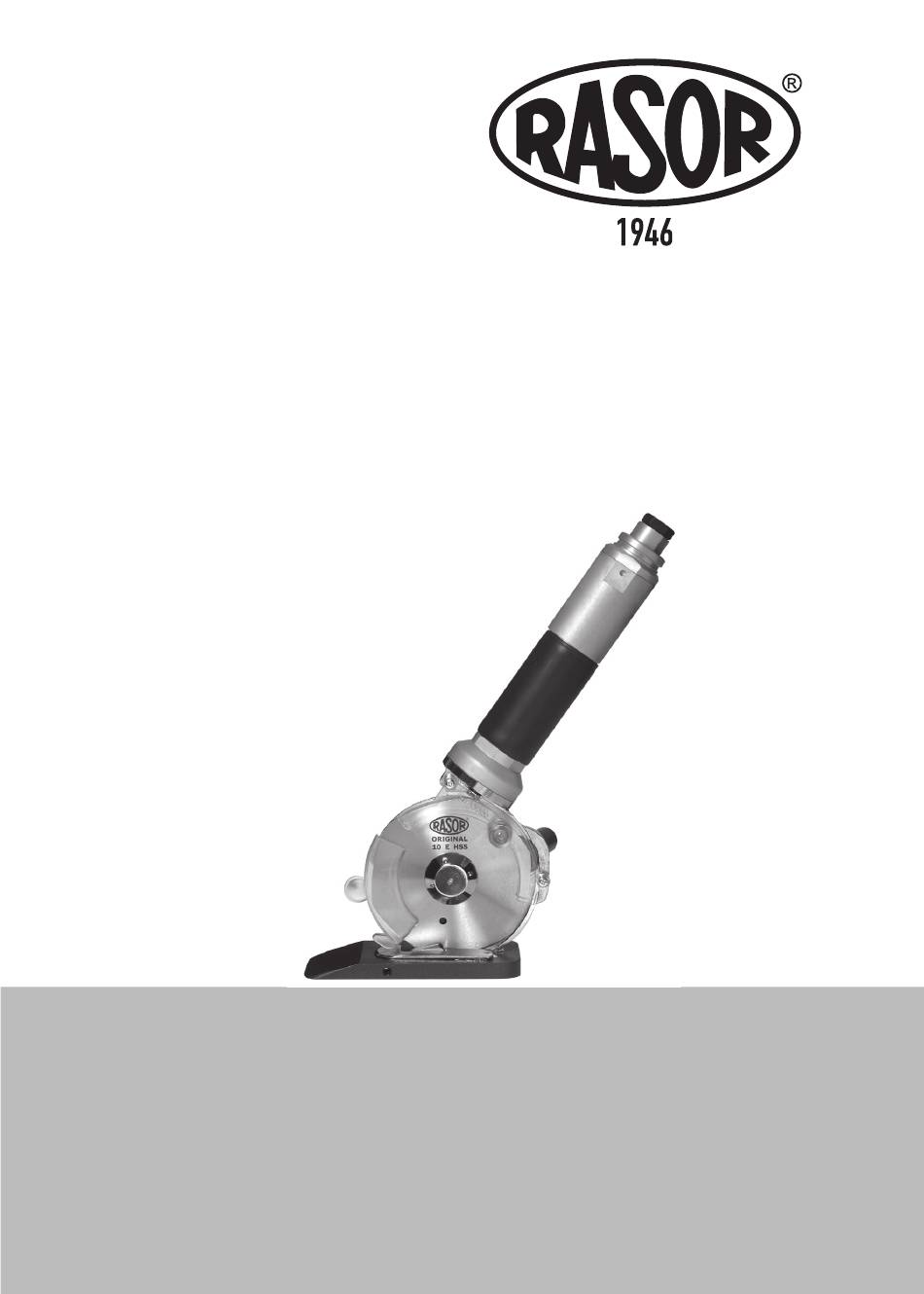

- Page 1 FP100 PNEUMATIC CUTTING UNIT USE MANUAL...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...
-
Page 3: General Safety Rules
Do not use large clothes or accessories that might get stuck in the moving parts. • GOGGLES AND PROTECTIVE METAL MESH GLOVES. Always use goggles, protective metal mesh gloves approved by Rasor during ® use and maintenance operations (according to UNI EN 388:2004 standard). - Page 4 ALL RIGHTS ARE RESERVED ACCORDING TO THE INTERNATIONAL COPYRIGHT CONVENTIONS, The reproduction of any part of this manual, in any form, is forbidden without the prior written authorization of Rasor Elettromeccanica S.r.l. ® The content of this guide can be modified without prior notice. Great care has been taken in collecting and checking the documentation contained in this manual to make it as complete and comprehensible as possible.
-
Page 5: Transport And Packaging
2. TRANSPORT AND PACKAGING The cutting unit is delivered in a cardboard box, inside which there are various options. The code of the ordered product and its serial number are indicated outside the package (see picture 1). The following accessories are contained in a bag inside the package (see picture HSS steel blade (6 sides);... -
Page 6: Product Description
4. PRODUCT DESCRIPTION The fixture described in this manual is a pneumatic cutting unit model FP 100 which can be assembled on automatic machines (e.g. spreaders, computerized cutting) by means of a proper bracket. Thanks to the use of a front point of reference and of an effective cutting system with a hexagonal blade it is possible to use the cutting unit to cut different materials. - Page 7 5. TECHNICAL FEATURES Features of the available blades Cutting unit FP 100 features 10EHSS Blade diameter 100 mm, with counterblade - hard metal 6 side blade Ø 100 mm, H.S.S. steel Blade speed 10CSW 900 rev/min Circular blade Ø 100 mm, Extra steel Cutting working depht ≈...
-
Page 8: Use Warnings
• It is allowed to assemble cutting unit FP 100 on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ® 9. RESIDUAL RISKS Even though the cutting unit is safe, operators must pay attention to preserve their safety and that of others. -
Page 9: Installation And Use
11. AIR PRESSURE GAUGE (OPTION) The cutting unit must be necessarily supplied with lubricated air with a pressure of 4-6 bar. Rasor offers, as option, a reduction unit filter with a ® pressure gauge already calibrated with the quantity of oil to be delivered. -
Page 10: Blade Sharpening
To carry out this operation, remove protective plug “A” located on the cutting unit head and fill it with lubricating grease Rasor. Screw plug “A” again few turns. Screw plug “A” some turns every 3-4 consecutive working days (see picture 11). -
Page 11: Blade Replacement
5) Replace the worn blade with the new one “2”, being careful to center the blade on the gear, in the correct position, and remember to assemble it, so that the Rasor writing can be seen by the operator. 6) Assemble all the components again and carry... -
Page 12: Troubleshooting
15. TROUBLESHOOTING PROBLEM SOLUTION Check the counterblade integrity Check the kind of fabric Sharpen the blade The fabric is not cut or it gets stuck between the Check the fabric thickness blade and the counterblade Check the compatibility between blade and fabric Make sure that the turbine turns correctly Reduce the feeding speed Carry out the lubrication... -
Page 14: Warranty
WARRANTY Rasor Elettromeccanica S.r.l. cutting unit has a 12 month warranty from the date indicated ® on the last page of this manual, except in case of different written agreements. The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. - Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
