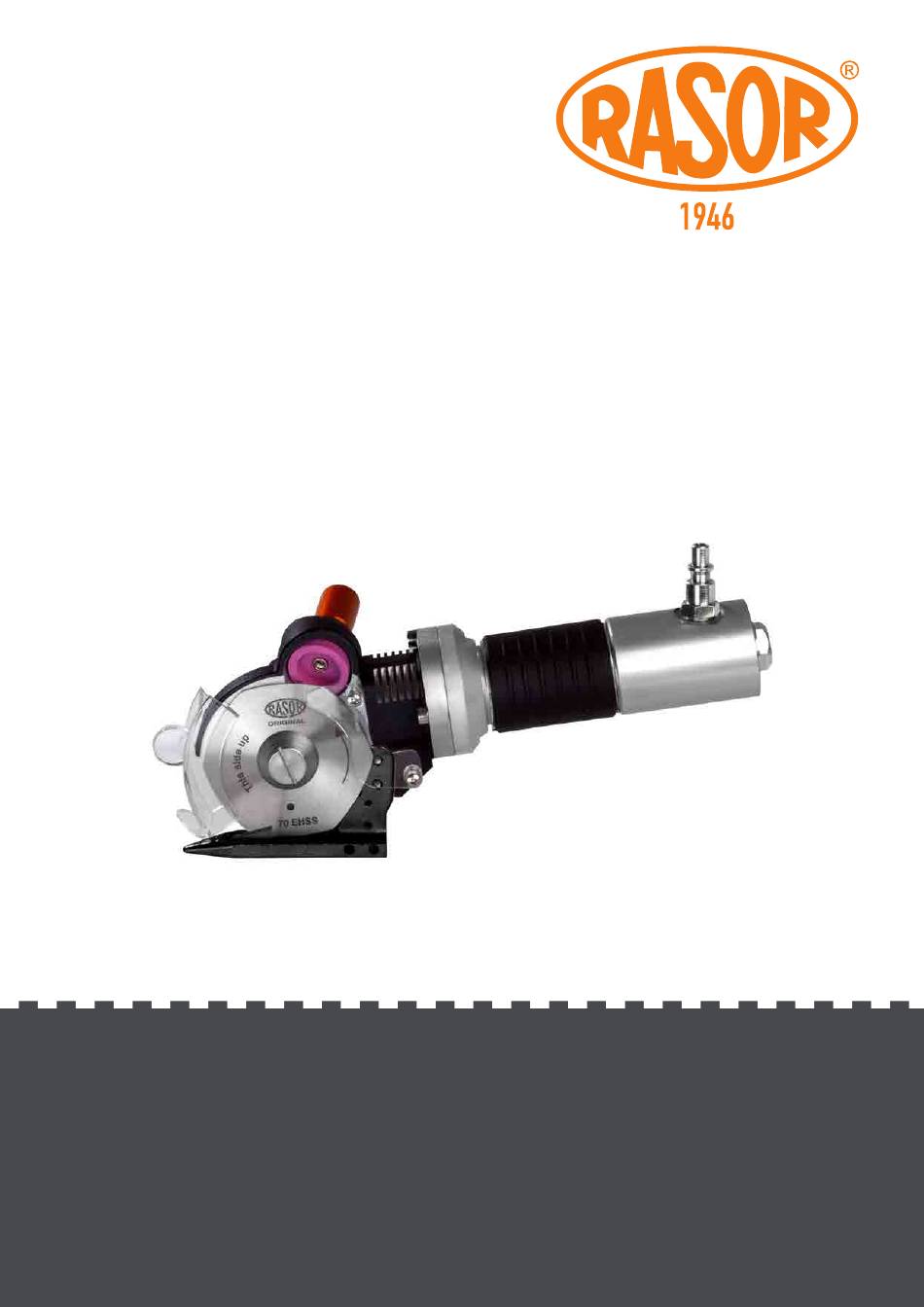

- Page 1 PNEUMATIC CUTTING UNIT FP-CROSS USE AND MAINTENANCE INSTRUCTIONS Please read this manual carefully before using the device and keep it safe with the product. TRANSLATION OF ORIGINAL AND COMPLETE INSTRUCTIONS...
-
Page 2: Table Of Contents
RASOR ELETTROMECCANICA SRL Via Giannetto Mattei, 41/43 - 20044 Arese- (MI) - ITALY Model: FP-CROSS Rasor Elettromeccanica S.r.l. declares, under its own re- sponsibility, that the aforementioned products, to which this declaration refers, comply with the Directives on the approxi- mation of the laws of EEC member states relating to: –... -
Page 3: General Information
– Reproduction, in whole or in part, of the illustra- tions or text given in these instructions is prohibited. Rasor Elettromeccanica S.r.l. reserves the right to amend the documentation without prior notice. CAUTION HAZARD The cutting unit also works without a safety guard. -
Page 4: Prohibitions
Vibrations – It is FORBIDDEN to remove parts of the product. The FP-CROSS cutting unit complies with Leg. Dec. 187 of – It is FORBIDDEN to use the product in areas at risk of 19/8/2005, which implements European Directive 2002/44/EC explosion and/or fire. -
Page 5: Package Contents
1 10 Package contents 1 11 Description of the device The FP-CROSS is delivered with its accessories in a case (A). The FP-CROSS cutting unit is designed to be fitted onto au- The product code and serial number are specified on the outer tomatic machinery (e.g. -
Page 6: Use
For the pneumatic connection, use hoses with an interior diameter of at least 8 mm. Proceed as follows to use the cutting unit: – Install the FP-CROSS cutting unit onto the O.E.M. machine using a fitting system (1). – Set the pressure gauge to 6 bar (optional);... -
Page 7: Air Handling Unit (Optional)
Rasor Elettromeccanica S.r.l. recommends using Rasor VG longer cutting as it should, sharpen the blade. 10 special pneumatic oil. Rasor Elettromeccanica S.r.l. makes available a “reducer fil- ter with pressure gauge” already calibrated with the quantity of CAUTION oil to be dispensed (optional). -
Page 8: Lubrication
Unscrew the screws (3) and (4) and remove the rear pro- tection (A); CAUTION Unscrew the screw (5) and remove the blade protection case (B); The blade must never be dirty with grease or oil, as this may damage the material being cut. https://www.rasor-cutters.com... -
Page 9: Available Blades
6-sided Ø 70 mm solid carbide blade (Widia®) 70DHSS 10-sided Ø 70 mm HSS Steel blade 70DHSSTN 10-sided Ø 70 mm Titanium-coated HSS Steel blade 70DHSSTF 10-sided Ø 70 mm Teflon®-coated HSS Steel blade Technical data are indicative and subject to change without notice. https://www.rasor-cutters.com... -
Page 10: Spare Parts
CAUTION The warranty will be voided if non-original spare parts are installed. Existing local regulations may impose heavy penalties for improper disposal of this product. WARNINGS For an exploded diagram of spare parts with item codes, visit www.rasor-cutters.com https://www.rasor-cutters.com... -
Page 11: Warranty
– if the cutting unit is used for purposes other than those sta- ted in this manual; – if parts other than Rasor® original spare parts are used. Repairs made under warranty do not interrupt its duration. The competent court for all disputes is the court of Milan. - Page 12 RASOR ELETTROMECCANICA SRL RASOR ELETTROMECCANICA SRL Via Giannetto Mattei 41/43 Via Giannetto Mattei 41/43 20044 Arese (MI) ∙ Italy 20044 Arese (MI) ∙ Italy ph. +39 02 66 22 12 31 ph. +39 02 66 22 12 31 info@rasor-cutters.com info@rasor-cutters.com www.rasor-cutters.com...
