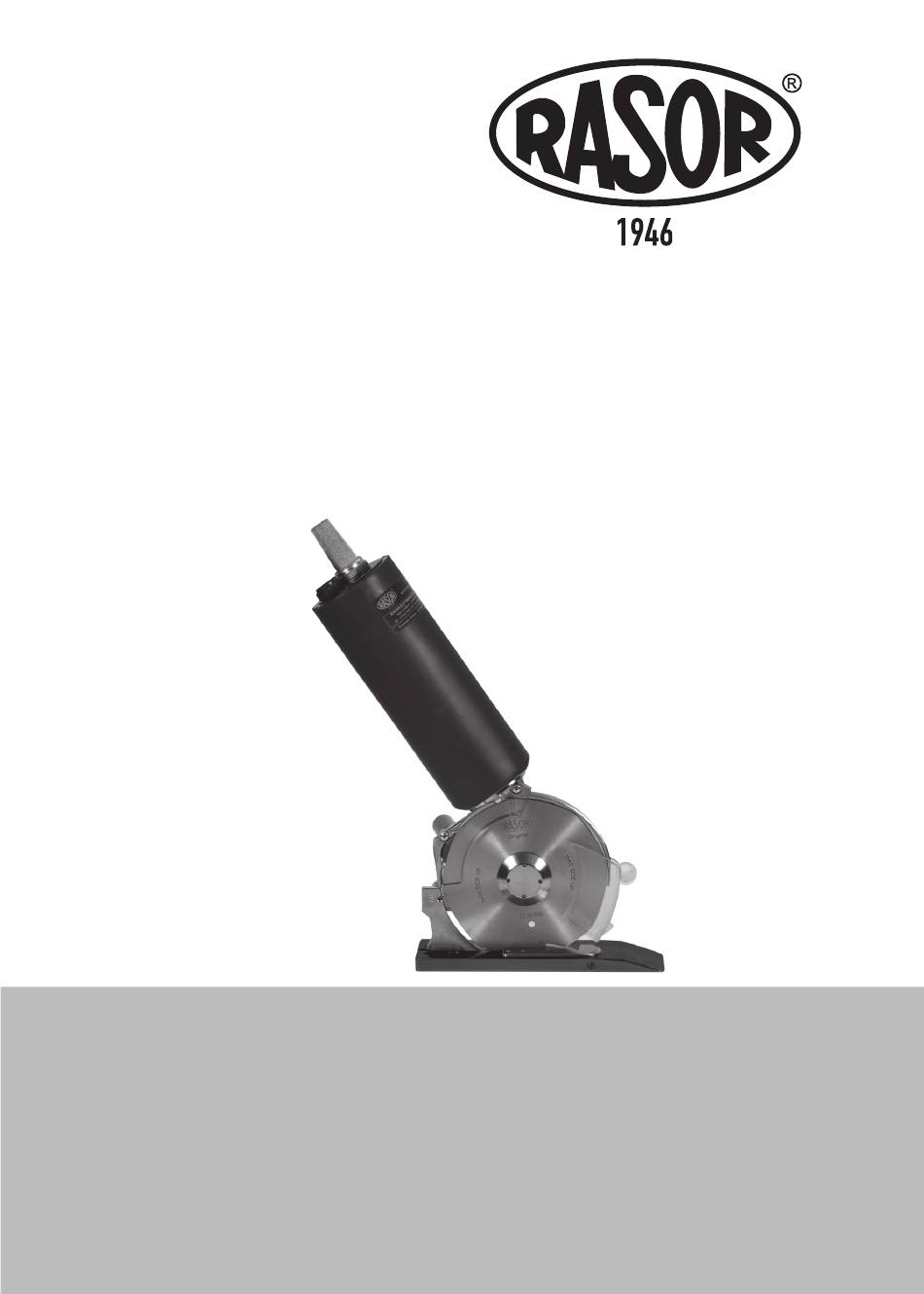

- Page 1 FP120SM PNEUMATIC CUTTING UNIT USE MANUAL...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head office...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of cutting unit FP120SM and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of ® explosions and at high risk of fire. In case of damage or malfunction, cutting unit FP120SM must not be used until the Customer Care Technical Service has repaired them.
-
Page 5: Transport And Packaging
READ THE SHEARING INSTRUCTION R ISK MANUAL Model U S E REMOVE THE Serial number FP120SM FM______ METAL S A F E T Y GLOVES M o t o r 18 l/sec. DEVICES data Year of production... -
Page 6: Product Description
Thanks to the presence of a 1HP pneumatic motor, FP120SM is able to cut difficult materials with thickness up to 50 mm. It is particularly suitable for technical fabrics and composite materials. -
Page 7: Technical Features
(A). NOTE It is advisable for cutting unit FP120SM owners to verify the compliance with the local standard concerning safety at work. The use of ear protecting devices is compulsory. 7. FIELD OF APPLICATION Cutting unit FP120SM has been designed, manufactured and assembled to cut any kind of fabrics or materials, with the exception of metal, plastic or wood, by means of rotary blades. -
Page 8: Use Warnings
• Always pay attention to the air pipe position to prevent it from being cut or damaged by the blade. • It is allowed to assemble cutting unit FP120SM on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... -
Page 9: Installation And Use
7) Enable the air remotely and carry out the cutting operation. NOTE Cutting unit FP120SM can work in a fixed position (the material moves) or it can move forward while the material is kept in the same position. Make sure the material to be cut is properly stretched, preventing it from curling. -
Page 10: Blade Sharpening
To carry out this operation, remove protective plug “A” located on the cutting unit head and fill it with lubricating grease Rasor. Screw plug “A” again few turns. Screw plug “A” some turns every 2-3 consecutive working days (see picture 9). -
Page 11: Blade Replacement
Rasor can be seen by the operator. 6) Assemble all the components again and carry out... -
Page 12: Troubleshooting
16. TROUBLESHOOTING PROBLEM SOLUTION Check the counterblade integrity Check the kind of fabric Sharpen the blade The fabric is not cut or it gets stuck between Check the fabric thickness the blade and the counterblade Check the compatibility between blade and fabric Make sure that the turbine turns correctly Reduce the feeding speed Carry out the lubrication... -
Page 14: Warranty
WARRANTY Rasor Elettromeccanica S.r.l. cutting unit has a 12 month warranty from the date indicated ® on the last page of this manual, except in case of different written agreements. The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. - Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
