RASOR FP861V2 Use Manual

Pneumatic cutting unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FP861V2
PNEUMATIC
CUTTING UNIT
USE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FP861V2 and is the answer not in the manual?

Questions and answers

Related Manuals for RASOR FP861V2

Summary of Contents for RASOR FP861V2

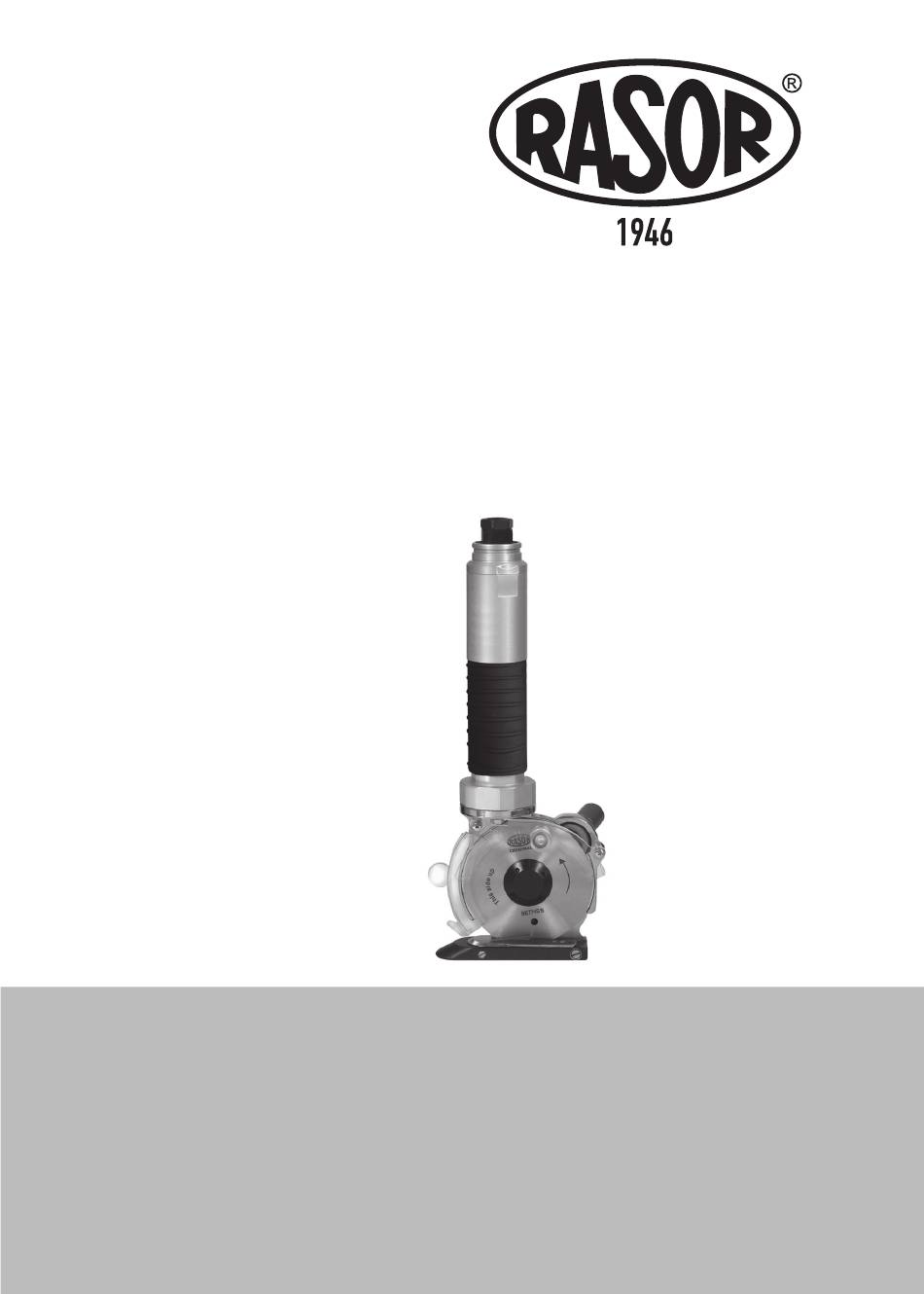

  • Page 1 FP861V2 PNEUMATIC CUTTING UNIT USE MANUAL...
  • Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...

  • Page 3: General Safety Rules

    1. GENERAL SAFETY RULES This manual is an integral part of cutting unit FP861V2 and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care.
  • Page 4 Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of ® explosions and at high risk of fire. In case of damage or malfunction, cutting unit FP861V2 must not be used until the Customer Care Technical Service has repaired them. Customer Care Technical Service...

  • Page 5: Transport And Packing

    READ THE INSTRUCTION MANUAL Model Serial number USE METAL GLOVES H _ _ _ _ _ _ _ _ _ _ FP861V2 Motor Year of production data USE GOGGLES SHEARING RISK...

  • Page 6: Product Description

    One special feature of cutting FP861V2 is its ability to sharpen the blade in each moment without disassembling it by means of a grinding wheel mounted on the cutting unit head.

  • Page 7: Technical Features

    The technical data are only indicative and they can be changed without notice. 6. NOISE LEVEL The maximum acoustic pressure level emitted by cutting unit FP861V2 is about 72 dB (A). Noise tests have been carried out in compliance with Standard ISO 15744:2008. The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A).

  • Page 8: Use Warnings

     Always pay attention to the position of the air pipe to prevent it from being cut or damaged by the blade.  It is possible to assemble cutting unit FP861V2 on machines O.E.M. only if their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®...

  • Page 9: Installation And Use

    WARNING Do not use the two bolts which connect the motor to the cutting part to fix cutting unit FP861V2, otherwise the motor shaft could break. In this case the warranty will be void. 11. AIR PRESSURE GAUGE (OPTION) The cutting unit must be necessarily fed with lubricated air with a pressure of 4-6 bar.

  • Page 10: Blade Sharpening

    In order to carry out this operation, remove protective plug “A” located on the head of the cutting unit and fill it with Rasor lubricating grease. Screw plug “A” again a few turns. Screw plug “A” a few turns every 2-3 working days (see picture 9).

  • Page 11: Blade Replacement

    5) Replace the worn blade with the new one “2”, being careful to center the blade on the shaft, in the correct position, and remember to assemble it so that the operator can see the writing “Rasor”. 6) Assemble all the components again and sharpen the blade.

  • Page 12: Troubleshooting

    15. TROUBLESHOOTING PROBLEM SOLUTION Check the counterblade integrity Check the kind of fabric Sharpen the blade The fabric is not cut or it gets stuck between Check the fabric thickness the blade and the counterblade Check the compatibility between blade and fabric Make sure that the turbine turns correctly Reduce the feeding speed Carry out the lubrication...
  • Page 14 WARRANTY Rasor Elettromeccanica S.r.l. cutting unit has a 12 month warranty from the date indicated ® on the last page of this manual, except in case of different written agreements. The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop.
  • Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
