Summary of Contents for RASOR FP503

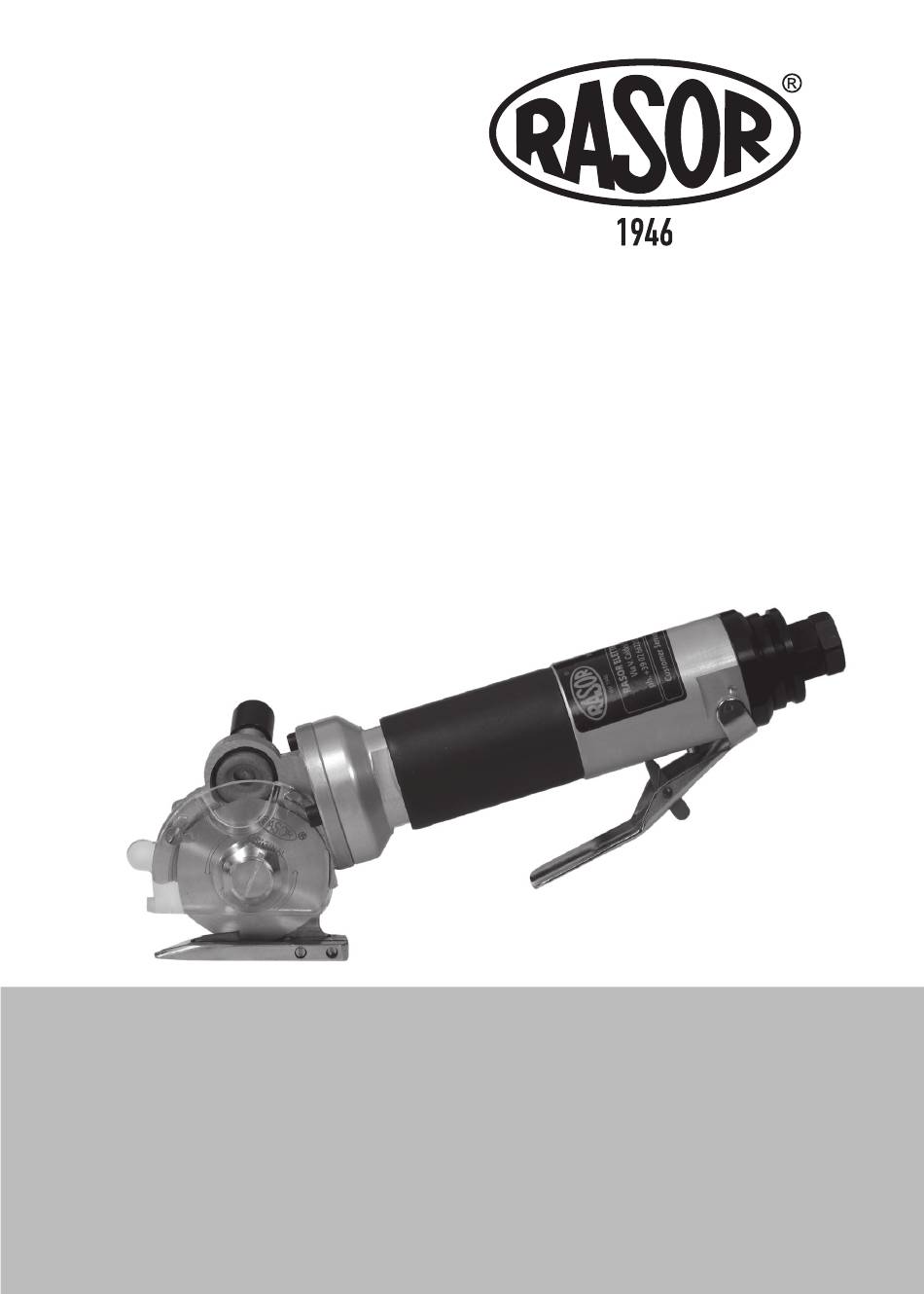

- Page 1 FP503 PNEUMATIC SCISSORS USE MANUAL...
- Page 2 All the parts of the devices have been designed and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended using only original spare parts and contacting the head office...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of pneumatic scissors FP503 and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of ® explosions and at high risk of fire. In case of damage or malfunction, pneumatic scissors FP503 must not be used until the Customer Care Technical Service has repaired them. Customer Care Technical Service...
-
Page 5: Transport And Packing
2. TRANSPORT AND PACKING The pneumatic scissors are delivered in a carrying case, inside which there are various options. The code of the ordered product and its serial number are indicated outside the package (see picture 1). The following accessories are contained in a bag inside the package (see picture 2): Hexagonal blade (6 sides);... -
Page 6: Product Description
One special feature of pneumatic scissors FP503 is their ability to sharpen the blade in each moment without disassembling it by means of a grinding wheel mounted on the scissors head. After carrying out this operation, it is possible to start cutting again. - Page 7 The silencer must never be removed. NOTE It is advisable for pneumatic scissors FP503 owners to verify the compliance with the standard concerning safety of workers: Italian legislative decree 81/08. The use of ear protecting devices is compulsory.
-
Page 8: Use Warnings
Rasor ® · The pneumatic scissors FP503 are equipped with double safety push button with a lever and a ratchet on the handle: the ratchet prevents the start push button from being enabled accidentally, the lever operates the scissors. Never remove the ratchet. -
Page 9: Residual Risks
9. RESIDUAL RISKS Even though the pneumatic scissors are safe, operators must pay attention to preserve their and other people’s safety. The cutting blade can work even when the protective device is disassembled. 10. USE To use the pneumatic scissors manually, proceed as follows: Lay the material to be cut on the table;... -
Page 10: Blade Sharpening
11. AIR PRESSURE GAUGE (OPTION) The pneumatic scissors must be necessarily fed with lubricated air with a pressure of 4-6 bar. Rasor offers, as option, a reduction unit filter with a ® pressure gauge already calibrated with the quantity of oil to be delivered. -
Page 11: Blade Replacement
(the one with the writing Rasor) positioned towards the external side of the pneumatic scissors. 6) Assemble all the components again and carry out... -
Page 12: Troubleshooting
FP86146 COMPLETE CONTROL LEVER F 5059 BLADE DISASSEMBLY KEY FP074 REAR FLANGE FP096 COMPENSATION RING NUT FRNF503 SET OF ACCESSORIES FP503 F 5065 SCREW FIXING THE FOOT FP075 REAR FLANGE PLUG FP86010 PISTON GUIDE P001 WORM SCREW PLATE LOCKING THE THREADS... -
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete scissors to Rasor ®... - Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
