Summary of Contents for RASOR SW100S
-

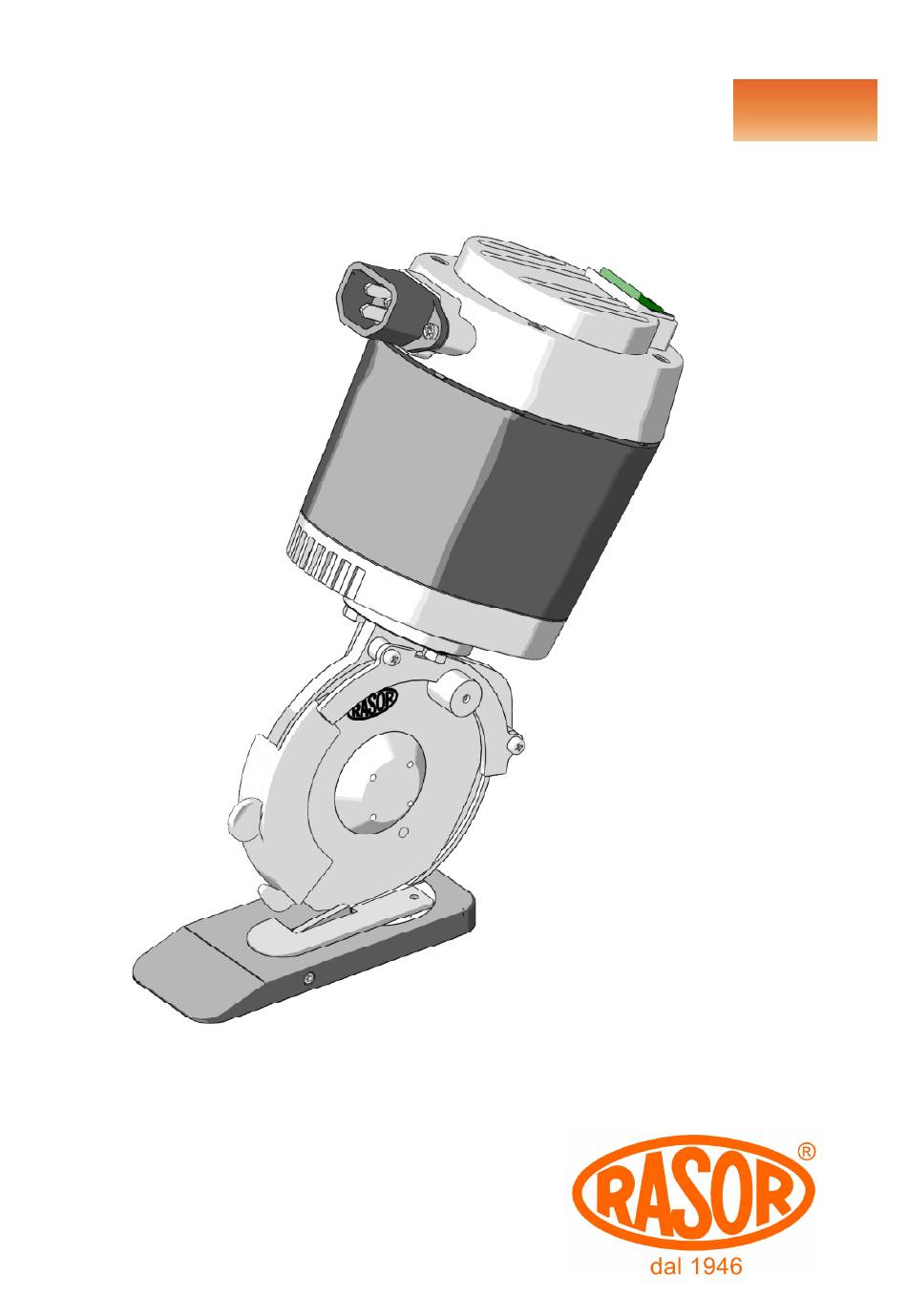

Page 1: Cutting Unit
USE MANUAL English CUTTING UNIT MOD. SW100S ED.1-06/09... - Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of cutting unit SW100S and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Moreover, they cannot work in case of rain. In case of damage or malfunction, cutting unit SW100S must not be used until the Customer Care Technical Service has repaired them.
-
Page 5: Transport And Packaging
In such a case, the operator is the only person responsible. Class II double insulation Model Serial number SW100S 220 230 50 60 Electric data Year of production R EAD... -
Page 6: Product Description

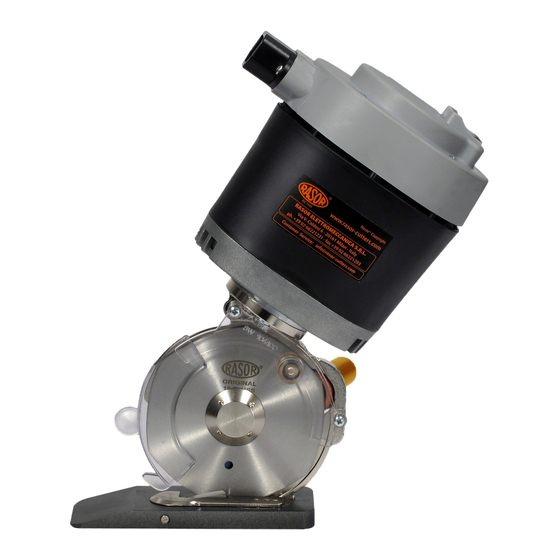

4. PRODUCT DESCRIPTION The fixture described in this manual is a cutting unit model SW100S which can be assembled on automatic machines (e.g. spreaders, computerized cutting) by means of proper holes located in the motor support. SW100S can operate continuously and it can cut at various widths by means of multiple installation. -
Page 7: Technical Features
This technical data is only indicative and may be subject to change without notice. 6. NOISE LEVEL The maximum acoustic pressure level emitted by cutting unit SW100S is about 60 dB (A). Noise tests have been carried out in compliance with Standard ISO 11202 (1995). The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A). -
Page 8: Use Warnings
• Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade. • It is allowed to assemble cutting unit SW100S on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... -
Page 9: Residual Risks
WARNING Never use the two bolts which fix the motor to the cutting part to fasten cutting unit SW100S. This operation may cause the motor shaft to break. In this case, warranty is not valid. -
Page 10: Blade Sharpening
To carry out this operation, remove protective plug “A” located on the motor support of the cutting unit and fill it with lubricating grease Rasor. Screw plug “A” again few turns. Screw plug “A” some turns every 3-4 working hours (see picture 11). -
Page 11: Blade Replacement
5) Replace the worn blade with the new one “2”, being careful to center the blade on the gear, in the correct position, and remember to assemble it, so that the Rasor writing can be seen by the operator. 6) Assemble all the components again and carry out... -
Page 12: Troubleshooting
16. TROUBLESHOOTING à PROBLEM SOLUTION Check that the blade and the counterblade are in contact Check the kind of fabric Sharpen the blade The fabric is not cut or it gets stuck between Check the fabric thickness the blade and the counterblade Check the compatibility between blade and fabric Make sure that the motor turns correctly Reduce the speed of travel... - Page 13 ® dal 1946...
-
Page 14: Warranty
WARRANTY Rasor Elettromeccanica S.r.l. cutting unit has a 12 month warranty from the date indicated ® on the last page of this manual, except in case of different written agreements. The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. -
Page 15: Declaration Of Conformity
EN 414:2002, UNI EN ISO 12100-1:2005 and UNI EN ISO 12100-2:2005. Noise tests have been carried out according to UNI EN ISO 11202 Standards. Cutting unit SW100S has been produced according to workmanlike standards. We declare that the above-mentioned goods comply with the standards in force concerning safety and hygiene at work that can be applied to the material itself according to the local standard;... - Page 16 Authorized dealer (Stamp)
