Introduction

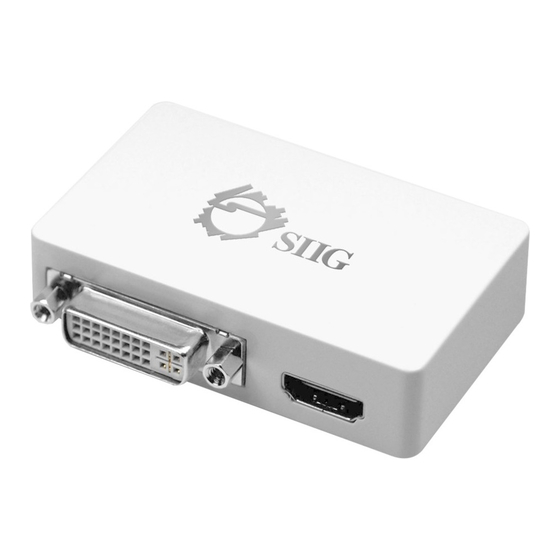

The USB 3.0 to HDMI/DVI Dual Display Adapter
lets you easily and quickly add dual displays to
your USB 3.0 enabled system.
Key Features and Benefits
•
Adds an HDMI and DVI-I port to Windows
and Mac computers
•
SuperSpeed USB 3.0 data transfer rate
supports smooth video and images
•
Supports high resolutions up to 1080p (Full
HD) and 2048x1152
•
Easy and quick installation, no external
power adapter required
•
Allows connecting up to 3 adapters per
system
04-1005B
USB 3.0 to HDMI/DVI Dual
Display Adapter
Installation Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JU-H20511-S1 and is the answer not in the manual?

Questions and answers

Related Manuals for SIIG JU-H20511-S1

Summary of Contents for SIIG JU-H20511-S1

  • Page 1 USB 3.0 to HDMI/DVI Dual Display Adapter Installation Guide Introduction The USB 3.0 to HDMI/DVI Dual Display Adapter lets you easily and quickly add dual displays to your USB 3.0 enabled system. Key Features and Benefits • Adds an HDMI and DVI-I port to Windows and Mac computers •...

  • Page 2: Package Contents

    System Requirements • Intel Core Due 2.0 GHz CPU with an available USB 2.0/3.0 port (USB 3.0 recommended) • Windows 10 (32-/64-bit) / 8 (32-/64-bit) / ® 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32- bit) • Mac OS X v10.6 to 10.11 ®...
  • Page 3 USB 3.0 Type B Figure 2: Back Layout Application Display HDMI Display One PC can connect up to three USB 3.0 to HDMI/DVI Dual Display Adapters, equivalent to up to six monitors. Figure 3: Application...

  • Page 4: Windows Installation

    Windows Installation Follow the instructions below to install the USB 3.0 to HDMI/DVI Dual Display Adapter drivers. Insert the driver CD. The AutoPlay window will pop- up. If not, browse the CD/DVD manually. Run Setup.exe, and click Yes at the User Account Control window.
  • Page 5 To Verify Windows Installation Right click This PC, Computer or My Computer on the desktop, and click Manage. Select Device Manager and expand Sound, Video and game controllers. U3 Multi Video Audio should be displayed in the list. Note: If there is a (yellow question mark) (exclamation mark) next to that item, then the driver is not properly installed.

  • Page 6: Display Configuration

    Display Configuration Note: The screen shots in this section are using Windows 7 operating system. Other operating systems may not match, however, the buttons, tabs and menus will be similar. Utility Settings The supplied utility allows configuring display mode, screen rotation, screen resolution, and physical arrangement of your monitors.
  • Page 7 Description of the Settings • DisplayLink Manager: Shows the version of the software USB 3.0 Dual Video Adapter: • Screen Resolution: Click to select an available resolution. This function is disabled in mirror mode, as the resolution is defined by the resolution of the primary monitor •...
  • Page 8 • Fit to TV: Adjusts the size of Windows Desktop on the TV. Note that this function works only when one add-on monitor is connected • Audio Setup: Enables the Windows audio configuration page. This function works only in specific models •...
  • Page 9 Cursor Disappearing In some cases, when removing the adapter in extended mode, the desktop will still be paired to the add-on monitor(s) and the mouse cursor may not return to the primary monitor. If this happens, connect the add-on monitor(s) and adapter again or keep moving the mouse until the curser appears.

  • Page 10: Uninstalling The Driver

    Uninstalling the Driver For Windows 10 / 8 / 7 (32-/64-bit) Open the Control Panel > Programs > Programs and Features. Under the Uninstall or change a program, double click DisplayLink Graphics. For Windows 10 / 8: Click Yes, Yes, and OK. For Windows 7: Click Yes two times.
  • Page 11 MAC OS Driver Installation Insert the driver CD. Select the Driver CD icon on the Desktop and browse the folder according to your Double click DisplayLink_Mac_..dmg, and a pop-up window will show. Run DisplayLink Software Installer.pkg then follow the on-screen steps to install the driver.

  • Page 12: Setting The Display Resolution

    Mac Display Utility Click the utility icon in the taskbar to change the mode or resolution, or click System Preference, click the Displays icon, then select the Arrangement pane. Setting the Display Resolution Select an available resolution from the Display Preferences window.

  • Page 13: Changing The Main Display

    Setting the Display to Mirror/Extend Mode Check Mirror Displays box on the Arrangement pane to enable mirror mode. Uncheck the box to set the display to extend mode. See Figure 7. Change the main display by simply dragging the white menu bar between the displays.
  • Page 14 Frequently Asked Questions Q1: Why won't my DVD video play when I move it over to the extended display? A1: Some DVD playback software packages do not support playing on a second display adapter. Q2: There are lines running up and down my screen or the screen is distorted A2: This is due to a low or unsupported refresh rate.
  • Page 15 Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.
  • Page 16 Fremont, CA 94538-3152, USA Phone: 510-657-8688 USB 3.0 to HDMI/DVI Dual Display Adapter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
