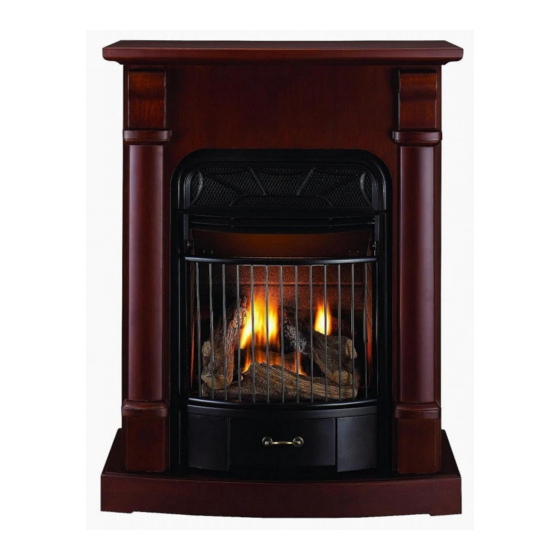

VENT-FREE GAS FIREPLACE SYSTEM
WARNING: This appliance is
equipped for (Natural and
Propane) gas. Field conversion is
not permitted other than between
natural or propane gases.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
Refer to Air For Combustion and Ventilation section on page 8 of this manual.
INSTALLER : DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER'S
FUTURE REFERENCE.
This appliance may be installed in an aftermarket, permanently located manufactured
(mobile) home, where not prohibited by local codes. This appliance is for use with the
type of gas indicated on the rating plate only. This appliance is not convertible for use
with other gases.
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m., EST,
Monday - Friday or e-mail customerservice@usaprocom.com.
CAUTION - FOR YOUR SAFETY
ITEM #0293808
MODEL #SSD200TA2
Español p. 34
LS-ED200T2651B-0902

Advertisement

Table of Contents
loading

Related Manuals for Style selections SSD200TA2

Summary of Contents for Style selections SSD200TA2

  • Page 1 ITEM #0293808 VENT-FREE GAS FIREPLACE SYSTEM MODEL #SSD200TA2 Español p. 34 WARNING: This appliance is equipped for (Natural and Propane) gas. Field conversion is not permitted other than between natural or propane gases. CAUTION - FOR YOUR SAFETY WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information..........................3 Product Features..........................6 Air For Combustion and Ventilation....................8 Installation ............................11 Installing Logs..........................17 Operation............................18 Care and Maintenance.........................22 Troubleshooting..........................24 Replacement Parts........................27 WARNING: Read the installation & operation instructions before using this appliance. IMPORTANT: Read instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.

  • Page 3: Safety Information

    SAFETY INFORMATION IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning. Only a qualified installer, service agent, or local gas supplier may install and service this product.
  • Page 4 Do not place Propane/LP supply tank(s) inside any structure. Propane/LP supply tank(s) must be placed outdoors. This heater needs fresh air ventilation to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety shut-off system. The ODS shuts down the heater if not enough fresh air is available.
  • Page 5 Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool. Using these added items can cause sooting. Do not add lava rock around base. Rock and debris could fall into the control area of heater. After servicing, always replace screen before operating heater.

  • Page 6: Product Features

    PRODUCT FEATURES SAFETY PILOT This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot shuts off the heater if there is not enough fresh air. PIEZO IGNITION SYSTEM This heater is equipped with an electronic piezo control system. This system requires AAA batteries (provided).
  • Page 7 UNPACKING 1. Remove top inner pack. 2. Tilt carton so that heater is upright. 3. Remove protective side packaging. 4. Slide heater out of carton. 5. Remove protective plastic wrap. 6. Remove screws on the top of the screen 7. Hold the screen, lift, and pull forward. 8.

  • Page 8: Air For Combustion And Ventilation

    AIR FOR COMBUSTION AND VENTILATION WARNING: This heater should not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to ensure proper fresh air for this and other fuel burning appliances in your home.
  • Page 9 DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION Determining if You Have a Confined or Unconfined Space Use this worksheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining rooms with door-less passageways or ventilation grills between the rooms.
  • Page 10 WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the National Fuel Gas Code, ANS Z223.1, Section 5.3 or applicable local codes.

  • Page 11: Installation

    INSTALLATION NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater.
  • Page 12 CONNECTING TO GAS SUPPLY WARNING: A qualified technician must connect heater to gas supply. Follow all local codes. WARNING: This appliance requires a 3/8 in. NPT inlet connection to pressure regulator (see Fig. 5). CAUTION: Never connect heater directly to the gas supply. This heater requires an external regulator (not supplied).
  • Page 13 CAUTION: Use only new black iron or steel pipe. Internally tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of ½ in. diameter or greater to allow proper volume gas to heater. If pipe is too small, loss of pressure will occur.
  • Page 14 CAUTION: Two gas line installations at the same time is forbidden. Do not open the cover while the machine is running. Heater is pre-set at factory for propane gas; no changes are required for connecting to propane. Only a qualified installer or service technician can perform gas selection and connecting to gas supply.
  • Page 15 Fig. 8 Fig. 9 NATURAL GAS PLUG PROPANE GAS Fig. 10 NATURAL GAS PLUG PROPANE GAS...
  • Page 16 CHECKING GAS CONNECTIONS WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks immediately. WARNING: Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. If bubbles form, there may be a leak. Correct all leaks immediately. Pressure Testing Gas Supply Piping System Test Pressures In Excess Of 1/2 PSIG ( 3.5kPa ) 1.

  • Page 17: Installing Logs

    INSTALLING LOGS WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury. CAUTION: After installation, and Fig. 13 - Installing Mid Log Bracket periodically thereafter, check to ensure that no Locate Mid Log Bracket and screws in hardware flame comes in contact with any log.

  • Page 18: Operation

    OPERATION FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. NOTICE: During initial operation of new heater, burning logs will give off a paper burning smell.
  • Page 19 LIGHTING INSTRUCTIONS Unscrew ignitor cap and install a AAA battery (included) with the + pointing out. Replace cap. 1. STOP! Read the safety information on page 18. 2. Warning: You must operate this heater with the screen in place. Make sure screen is installed before running heater.
  • Page 20 TO TURN OFF GAS TO APPLIANCE Shut off heater. Turn Control Knob clockwise to the OFF position. Do not force. MANUAL LIGHTING PROCEDURE 1. Remove screws on the top of the screen 2. Remove screen by lifting and pulling forward. 3.
  • Page 21 INSPECTING BURNERS Check pilot flame pattern and burner flame patterns often. PILOT FLAME PATTERN 1. Turn control knob to pilot position. 2. Inspect pilot flame and refer to Fig. 16 and 17. • Fig. 16 shows a correct pilot flame pattern. •...

  • Page 22: Care And Maintenance

    CARE AND MAINTENANCE WARNING: Failure to keep primary air openings of burners clean may result in sooting and property damage. CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service person.
  • Page 23 CLEANING ODS/PILOT Use a vacuum cleaner, pressurized air, or a small, soft bristled brush to clean. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Fig.

  • Page 24: Troubleshooting

    TROUBLESHOOTING WARNING: If you smell gas: • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
  • Page 25 Problem Possible Cause Corrective Action ODS/pilot lights 1. Control knob is not fully pressed 1. Press in control knob fully. but flame goes out when control knob is 2. Control knob is not pressed in 2. After ODS/pilot lights, keep released.
  • Page 26 Problem Possible Cause Corrective Action Slight smoke or 1. Residues from manufacturing 1. Problem will stop after a odor during initial process. few hours of operation. operation. Heater produces a 1. Turning control knob to high (5) 1. Turn control knob to low (1) whistling noise when position when burner is cold.

  • Page 27: Replacement Parts

    REPLACEMENT PARTS NOTE: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Call Customer Service toll free at (1-866-573-0674) for referral information. When calling Customer Service, have ready: • Your name •...
  • Page 28 REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m., EST, Monday - Friday or e-mail customerservice@usaprocom.com. Part. Description Part # DF ODS NDD0308 Piezo Ignitor PIMSC1-01 DF Regulator RV83FI-4/9 Gas Selection Valve YDF06 Rear Barrier ED200L7C-06...
  • Page 30 CORNER MANTEL TRIM CAUTION: If baseboards are installed where the fireplace is intended to be displayed, then the fireplace will not fit flush against the wall. For a proper flush fit, you may need to remove part of the baseboard molding if necessary.
  • Page 31 ASSEMBLY INSTRUCTIONS 1. Turn the fireplace top panel over. Fig. 1 Using the connector brackets that are supplied, connect the fireplace top Fireplace Top panel to the triangular top triangle panel with ST4 screw - 5/8 in. (CC) as shown in Fig. 1. Top Triangle Panel Hardware Used With the fireplace top panel assembled,...
  • Page 32 Fig. 3 3. Drill two holes (5/16 in.) in the corner Mitered Corner where the fireplace is to be displayed. Joints Drill the first hole 34 in. from the 5/16 ground up; and the second hole in. from the ground up as shown 1/16 in Fig.
  • Page 33 2-YEAR LIMITED WARRANTY The manufacturer warrants this product to be free from defects in workmanship and material present at time of shipment from the factory for two (2) years from the date of purchase. This warranty applies only to the original purchaser. The manufacturer agrees to correct such defect at no charge or, at our option, replace the product with a comparable or superior model.

This manual is also suitable for:
