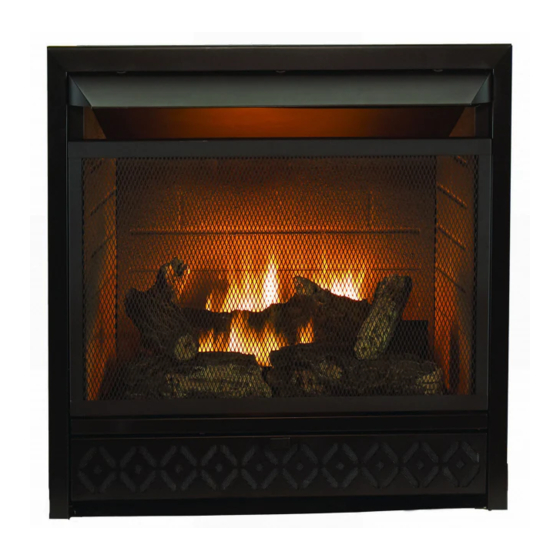

Style selections SSFBD28T Manual

Vent-free gas fireplace insert
Hide thumbs
Table of Contents

Advertisement

Quick Links

WARNING: This appliance
is equipped for (Natural and
Propane) gas. Field conversion is
not permitted other than between
natural or propane gases.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable vapors and liquids in vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
Refer to Air For Combustion and Ventilation section on page 8 of this manual.
INSTALLER : DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER'S
FUTURE REFERENCE.
This appliance may be installed in an aftermarket, permanently located manufactured
(mobile) home, where not prohibited by local codes. This appliance is for use with the
type of gas indicated on the rating plate only. This appliance is not convertible for use
with other gases.
Questions, problems, missing parts? Before returning to your retailer, contact
our customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m.,
EST, Monday - Friday or e-mail customerservice@usaprocom.com.
VENT-FREE GAS FIREPLACE INSERT
CAUTION - FOR YOUR SAFETY
ITEM #0030334
MODEL #SSFBD28T
Español p. 32
LS-FBD28D654-1002
