Style selections SSEB18RT Instruction Manual

Vent-free gas logs
Hide thumbs
Table of Contents

Advertisement

Quick Links

WARNING: This appliance is
equipped for (Natural and
Propane) gas. Field
conversion is not permitted
other than between natural
or propane gases.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
Refer to Air For Combustion and Ventilation section on page 8 of this manual.
INSTALLER : DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER'S
FUTURE REFERENCE.
This appliance may be installed in an aftermarket, permanently located manufactured
(mobile) home, where not prohibited by local codes. This appliance is for use with the
type of gas indicated on the rating plate only. This appliance is not convertible for use
with other gases.
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-866-573-0674, 8:00 a.m -4:30 p.m., EST,
Monday - Friday or e-mail customerservice@usaprocom.com.
VENT-FREE GAS LOGS
MODEL #SSEB18RT, SSEB24RT, SSEB30RT
CAUTION - FOR YOUR SAFETY
ITEM # 0110999, 0112970, 0114757
Español p.40
LS-SSEB30RT501

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSEB18RT and is the answer not in the manual?

Questions and answers

Related Manuals for Style selections SSEB18RT

Summary of Contents for Style selections SSEB18RT

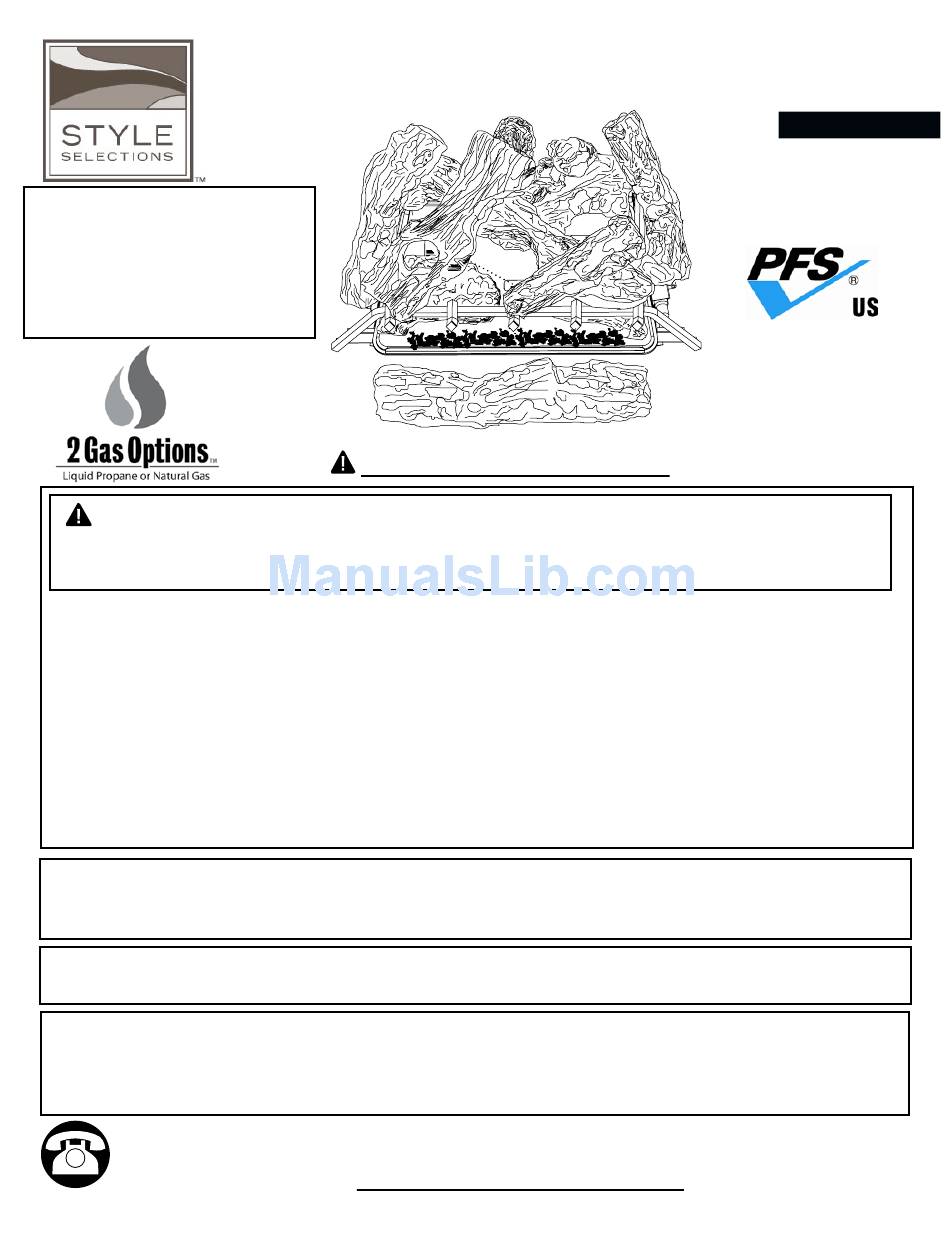

  • Page 1 ITEM # 0110999, 0112970, 0114757 VENT-FREE GAS LOGS MODEL #SSEB18RT, SSEB24RT, SSEB30RT Español p.40 WARNING: This appliance is equipped for (Natural and Propane) gas. Field conversion is not permitted other than between natural or propane gases. CAUTION - FOR YOUR SAFETY...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information.........................3 Product Features...........................6 Air For Combustion and Ventilation....................8 Installation ...........................11 Installing Logs..........................21 Operation.............................23 Care and Maintenance........................29 Troubleshooting...........................31 Replacement Parts........................34 WARNING: Read the installation & operation instructions before using this appliance. IMPORTANT: Read instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty.

  • Page 3: Safety Information

    SAFETY INFORMATION IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning. Only a qualified installer, service agent, or local gas supplier may install and service this product.
  • Page 4 Do not place propane/LP supply tank(s) inside any structure. Propane/LP supply tank(s) must be placed outdoors. This heater should not be installed in a bedroom or bathroom unless installed as a vented appliance. Solid fuels should not be burned in a fireplace in which vent-free log set is installed. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool.
  • Page 5 Do not use heater if any part has been underwater. Immediately call a qualified service technician to inspect the room heater and replace any part of the control system and any gas control which has been underwater. 13. Turn off and let cool before servicing. Only a qualified service technician should service and repair heater.

  • Page 6: Product Features

    PRODUCT FEATURES This log set has been tested and approved to ANSI Z21.11.2 standard for Unvented Heaters and can be operated with the flue damper closed. State and local codes in some areas prohibit the use of vent-free heaters. SAFETY PILOT This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system.
  • Page 7 PREPARING FOR INSTALLATION Before beginning assembly or operation of the product, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement parts. Estimated Assembly Time: 1 to 2 hours Tools Required for Assembly: Before installing heater, make sure you have the the following:...

  • Page 8: Air For Combustion And Ventilation

    AIR FOR COMBUSTION AND VENTILATION WARNING: This heater should not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to ensure proper fresh air for this and other fuel burning appliances in your home.
  • Page 9 DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION Determining if You Have a Confined or Unconfined Space Use this worksheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.
  • Page 10 WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the National Fuel Gas Code, ANS Z223.1, Section 5.3 or applicable local codes.

  • Page 11: Installation

    INSTALLATION NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater.
  • Page 12 Call dealer where you purchased heater for proper gas log set. LOG SIZING REQUIREMENTS Log Size Minimum Firebox Size Height Depth Front Width Rear Width SSEB18RT 20 in. 14 in. 24 in. 19 in. SSEB24RT 20 in. 15 in.
  • Page 13 If Using Mantel You must have noncombustible material(s) (such as slate, marble, tile, etc.) at least 1/2 in. thick. With sheet metal, you must have noncombustible material behind it. Noncombustible material must extend at least 8 inches up. If noncombustible material is less than 12 in., you must install the fireplace hood accessory.
  • Page 14 NOTICE: Surface temperature of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become too hot to touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.
  • Page 15 INSTALLING DAMPER CLAMP ACCESSORY FOR VENTED OPERATION NOTE: When used as a vented heater, appliance must be installed only in a solid-fuel burning fireplace with a working flue constructed of noncombustible material. You may use this heater as a vented product. There are three reasons for operating your heater as a vented model: 1.
  • Page 16 GAS SELECTION CAUTION: Two gas line installation at the same time is forbidden. Do not open the cover while the machine is running. Heater is pre-set at factory for propane gas; no changes are required for connecting to propane. Only a qualified installer or service technician can perform gas selection and connecting to gas supply.
  • Page 17 A CSA/AGA design-certified equipment shutoff Fig. 13 - Attaching Flexible Gas valve with 1/8-inch NPT tap is an acceptable Hose to Heater Gas Regulator alternative to test gauge connection. Purchase Fitting the optional CSA/AGA design-certified equipment shutoff valve. Heating Gas The installer must supply an external regulator for Regulator liquid propane.
  • Page 18 CONNECTING TO GAS SUPPLY WARNING: A qualified technician must connect heater to gas supply. Follow all local codes. WARNING: This appliance requires 1/2-in. NPT (National Pipe Thread) inlet connection to the pressure regulator. WARNING: Never connect heater to private (non-utility) gas wells. This is commonly known as well-head gas.
  • Page 19 CHECKING GAS CONNECTIONS WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks immediately. WARNING: Never use an open flame to check for a leak. Apply a mixture of liquid soap and water to all joints. If bubbles form, there may be a leak. Correct all leaks immediately. Pressure Testing Gas Supply Piping System Test Pressures In Excess Of 1/2 PSIG ( 3.5kPa ) 1.
  • Page 20 PLACING EMBER MATERIAL Fig. 19 - Placing Ember Material Seperate the ember material into small light pieces smaller than the size of a dime. Place the pieces around the small round gas ports starting in the front of the burner and working your way towards the back of the burner.

  • Page 21: Installing Logs

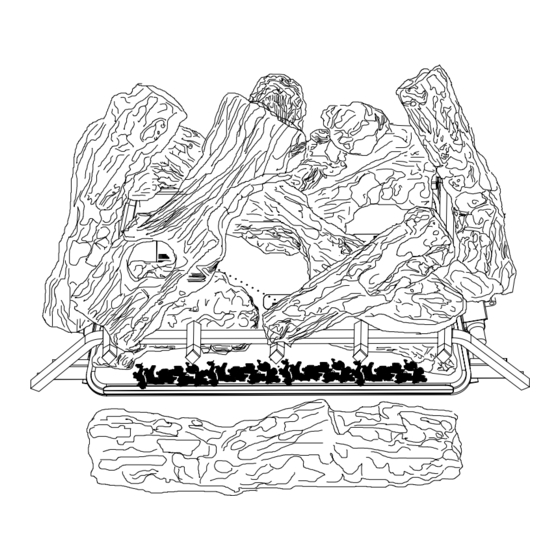

    INSTALLING LOGS 18 IN. VENT-FREE GAS LOGS WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury. CAUTION: After installation and periodically thereafter, check to ensure that no yellow flame comes in contact with any log.
  • Page 22 INSTALLING LOGS 24 IN. VENT-FREE GAS LOGS and 30 IN. VENT-FREE GAS LOGS WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

  • Page 23: Operation

    OPERATION FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. NOTICE: During initial operation of new heater, burning logs will give off a paper burning smell.
  • Page 24 REMOTE CONTROL LIGHTING INSTRUCTIONS MODELS CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve. 1. Unscrew ignitor cap and install an AAA type battery with the anode (+) pointing out. Replace cap. 2. STOP! Read the safety information on the front and back of the warning plate. 3.
  • Page 25 MATCHING SECURITY CODES Program the remote receiver to LEARN a new security code by pushing in the LEARN button the top of the remote receiver and then pressing any button on the transmitter. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 26 LCD Liquid Crystal Display Fig. 25 1. DISPLAY Indicates CURRENT room temperature. 2. °F or °C Indicates degrees Fahrenheit or Celsius. 3. FLAME Indicates bumer/valve in operation. 4. ROOM Indicates remote is in THERMO operation. 5. TEMP Appears during manual operation. 6.
  • Page 27 THERMOSTAT FUNCTION SETTING DESIRED ROOM TEMPERATURE This remote control system can control the thermostat when the transmitter is in the THERMO mode (The word ROOM must be displayed on the screen). To set the THERMO MODE and desired room temperature: 1.
  • Page 28 INSPECTING BURNERS Check pilot flame pattern and burner flame patterns often. PILOT FLAME PATTERN 1. Turn control knob to pilot position. 2. Inspect pilot flame and refer to Fig. 33 and 34. • Fig. 33 shows a correct pilot flame pattern. •...

  • Page 29: Care And Maintenance

    CARE AND MAINTENANCE WARNING: Failure to keep primary air openings of burners clean may result in sooting and property damage. CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service person.
  • Page 30 CLEANING ODS/PILOT Use a vacuum cleaner or pressurized air. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Fig.

  • Page 31: Troubleshooting

    TROUBLESHOOTING WARNING: If you smell gas: • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
  • Page 32 Problem Possible Cause Corrective Action ODS/pilot lights 1. Gas supply turned off or 1. Turn on gas supply or open but flame goes out equipment shutoff valve closed. equipment shutoff valve. when control knob is 2. Control knob not fully pressed 2.
  • Page 33 Problem Possible Cause Corrective Action Slight smoke or odor 1. Residues from 1. Problem will stop after a few during initial operation manufacturing process. hours of operation. 2. Not enough 2. Refer to air for combustion and combustion/ventilation air. ventilation requirements. Heater produces a 1.

  • Page 34: Replacement Parts

    REPLACEMENT PARTS NOTE: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Call Customer Service toll free at (1-866-573-0674) for referral information. When calling Customer Service, have ready: • Your name •...
  • Page 35 REPLACEMENT PARTS LIST (Item #0110999 Model #SSEB18RT) For replacement parts, call our customer service department at 1-866-573-0674, 8:00 a.m - 4:30 p.m., EST, Monday - Friday or e-mail customerservice@usaprocom.com. Part. Description Part # Grate Assembly SSEB18RT100 Ignitor PIMSC1-01 Dual Fuel Regulator...
