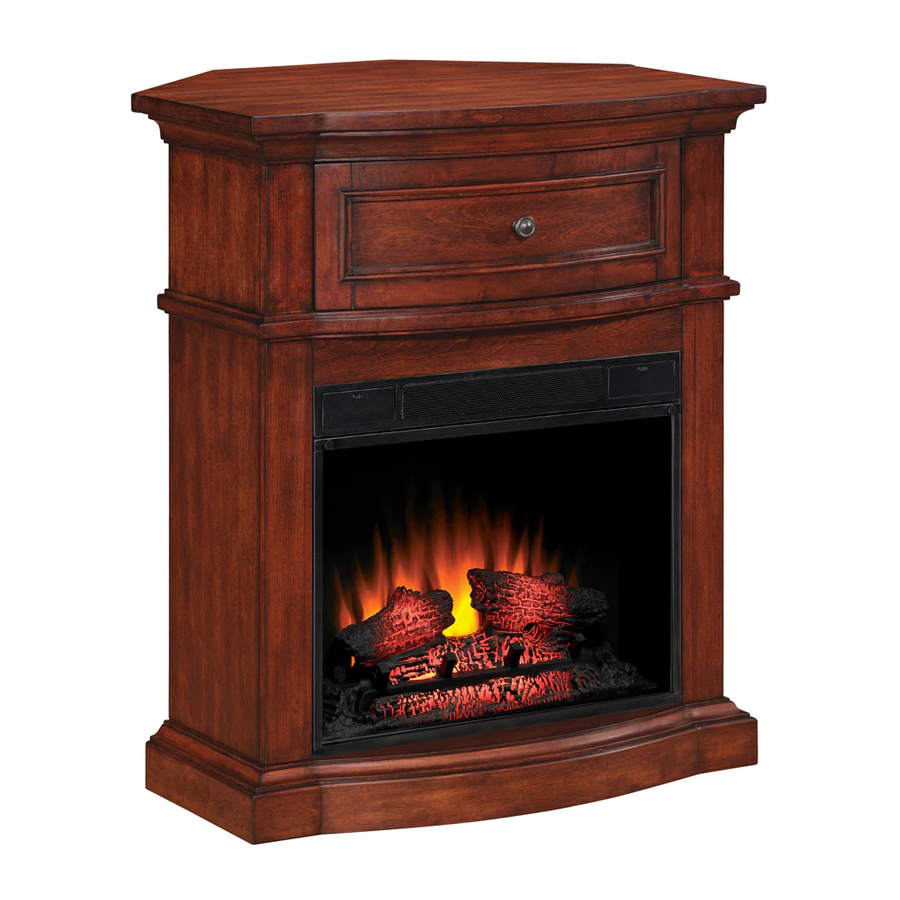

  • Page 1 ITEM #0386378 WALL/CORNER ELECTRIC FIREPLACE Style Selections® is a registered trademark of LF, LLC. All Rights Reserved. MODEL #76185/23DM6344-C244 Français p.15 Español p. 29 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-888-8225, 8 a.m. - 8 p.m., EST, Monday - Friday.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Product Specifications ......................... 2 Safety Information ..........................3 Package Contents ..........................6 Hardware Contents..........................7 Preparation ............................7 Assembly instructions ........................... 8 Operating Instructions .......................... 9 Care and Maintenance ........................10 Troubleshooting ..........................12 Warranty ............................. 13 Replacement Parts ..........................
  • Page 3: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING • Before assembly, carefully use scissors or utility knife to cut and unwrap all parts. Make sure you do not discard the hardware. CAUTION •...
  • Page 4: Grounding Instructions

    19. This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored. This fireplace should not be used as a drying rack for clothing. Do not hang Christmas stockings or other decorations on or near this product. 20.
  • Page 5 SAFETY INFORMATION WARNING: Make sure the power is turned off before proceeding. Only a licensed electrician should perform any electrical repairs or rewiring of this unit in accordance with national and local codes. Follow the original wire routing, color coding and securing locations when making repairs or replacements to any electrical component.”...
  • Page 6: Package Contents

    PACKAGE CONTENTS Part Description Quantity Mantel Top Corner Extension “L” Corner Brace Insert Lowes.com...
  • Page 7: Hardware Contents

    HARDWARE CONTENTS (shown actual size) Washer Wood Qty. 5 Dowel Bolt Qty. 4 Qty. 5 Touch-up Pen Model No. W3304 (Not actual size) Qty. 1 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package con- tents list and diagram above.
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS 1. Remove the two mounting brackets attached to the back of the left and right front panels on mantel (A) by removing the two screws on each mounting bracket. Set aside. PLEASE READ ALL “ELECTRIC FIREPLACE INSERT” INSTRUCTIONS PRIOR TO INSTALLING INSERT (D) INTO THE MANTEL (A).
  • Page 9: Operating Instructions

    3. Carefully slide the complete assembly from step 2 into place at back of the mantel (A). Insert one wood dowel (CC) into each of the pre-drilled holes on the mantel (A). Secure with bolts (AA) and washers (BB) through the pre-drillled holes in the mounting blocks. HAND TIGHTEN ONLY.
  • Page 10: Care And Maintenance

    POWER The power switch supplies power to all of the functions of the fireplace. HEATER The fireplace consists of a fan-forced wire-element-type heater. The heater switch turns the heater ON and OFF. As an important safety feature, the heating element is designed with a delayed activation sequence.
  • Page 11 2 Nuts 1. Turn the master power switch off, then unplug the power cord from the wall outlet. If fireplace has been operating, let the unit cool at least 2 hours. Locate and rotate the 2 nuts on the glass holder counterclockwise to loosen the glass from insert.
  • Page 12: Troubleshooting

    5. Unhook light bulb spring clips from the bulbs, and unscrew the bulbs. After replacing the bulbs make sure to replace the light bulb spring Ember bed Light Bulb clip. Remember to replace all the bulbs at the same time with clear 120-volt, 40-watt E12 light bulbs.
  • Page 13: Warranty

    1-YEAR LIMITED WARRANTY The manufacturer warrants this product to be free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. Install and operate this electric fireplace in accordance with the installation and operating instructions furnished with the product at all times.
  • Page 14: Replacement Parts

    Heater On/Off Switch - Red Toggle E-12 Light Bulb Socket Assembly Y07-C29-P08 Front Projection Screen Y07-C27-P09 Flame Generator Drive Motor P10-Q Flame Generator/Spinner Y07-C27-P11 Printed in China Style Selections is a registered trademark ® of LF, LLC. All rights reserved. Lowes.com...
