EB15195

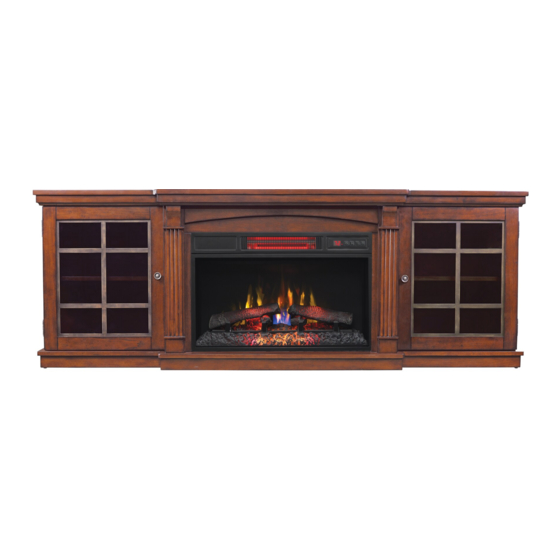

ELECTRIC FIREPLACE
WITH MEDIA MANTEL
MODEL #88294/26MM20243-C278
1
ITEM #0673803
Français p. 18
Español p. 35
Lowes.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Style selections 88294
Summary of Contents for Style selections 88294
- Page 1 Style Selections is a registered trademark ® of LF, LLC. All rights reserved. MODEL #88294/26MM20243-C278 Français p. 18 Español p. 35 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-888-8225, 8 a.m. - 8 p.m., EST, Monday - Friday.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Specifications ......................... 2 Safety Information ..........................3 Package Contents ..........................6 Hardware Contents..........................7 Preparation ............................8 Assembly Instructions........................... 8 Operating Instructions ........................13 Care and Maintenance ........................14 Troubleshooting ..........................15 Warranty ............................. 16 Replacement Parts List ........................17 PRODUCT SPECIFICATIONS VOLTAGE 120VAC, 60 Hz... -
Page 3: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following: DANGER: •... - Page 4 4. The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. SAFETY INFORMATION 5. Always unplug this appliance when not in use. 6.
-
Page 5: Save These Instructions
SAFETY INFORMATION • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the product • Non-rechargeable batteries are not to be recharged. SAVE THESE INSTRUCTIONS Cold-climate installation: It is mandatory the outer walls be insulated to conform to applicable insulation codes. -
Page 6: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Front Base Left Side Panel Right Side Panel Center Front Panel Left Door Right Door Mantel Top Wood Shelf Left Partition Right Partition Insert Support Bar Left Base Right Base Lower Insert Support Bar Rear Panel Insert Remote Tipping Restraint Hardware Pack... -
Page 7: Hardware Contents
HARDWARE CONTENTS (shown actual size) Truss Head Bolt Washer Wood Dowel Shelf Pin Screw Door Pull Qty: 28 Qty: 28 Qty: 16 Qty: 28 Qty: 8 (Not to scale) Qty: 2 Magnetic Spring Hinge Screw Catch Screw Catch (Not to scale) Qty: 16 Qty: 4 (Not to scale) -
Page 8: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble, install or operate the product. To protect the product from possible scratches, please assemble the parts on a scratch-free surface. - Page 9 4. Attach center front panel (D) between left partition (I) and right partition (J) using bolts (AA) and washers (BB). Hardware Used Bolt Washer 5. Insert wood dowels into assembly where shown, then attach mantel top (G). Secure from underneath using bolts (AA) and washers (BB).
- Page 10 7. Attach the hinges (JJ) to the left door (E) and right door (F) using screws (GG) and tighten securely. Hardware Used Screw Hinge 8. Attach right door (F) to right side panel (C) through hinges (JJ) using screws (GG). Tighten with Phillips screwdriver.
- Page 11 WARNING: Be sure to read all safety information prior to installing the insert (P). Insert (P) should be installed in the fireplace as close to the final position as possible; two people are recommended for this step. 10. Lift insert (P) carefully into the back of the unit and center in the insert opening.
- Page 12 12. WARNING: Installing the tipping restraint hardware will help prevent accidents and/or damage to the unit. It is highly recommended you complete this step. To secure the item to the wall, find and mark a stud closest to the edge of the left side of the mantel. Unit Anchor Attach the wall anchor from the tipping restraint hardware pack (R) at the marked locations using...
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS The heater can be operated by either the remote control or the control panel. Control Panel Display Front View of Insert (P) Remote (Q) FUNCTION ICON DESCRIPTION POWER Use the POWER button to turn on or off the fireplace from the remote or control panel. -
Page 14: Care And Maintenance
CARE AND MAINTENANCE • Dust the fireplace regularly with a soft, non-lint producing cloth or household dusting product. • Clean the fireplace with a gentle non-abrasive household cleaner. Make sure to dry the fireplace immediately with a soft cloth or towel. •... -
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Unplug the fireplace, remove the back panel of the fireplace and The thermostat sensor is check that the thermostat is plugged into the main circuit board. If Display shows “ ” broken or disconnected. this does not solve the problem contact customer service for a replacement thermostat sensor. -
Page 16: Warranty
1-YEAR LIMITED WARRANTY The manufacturer warrants this product to be free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. Install and operate this item in accordance with the installation and operating instructions furnished with the product at all times. -
Page 17: Replacement Parts List
Y15-C70-P85 Emberbed with Log Y15-S148-P02 Emberbed Circuit Board Y15-C75-P44E Blue Flame Circuit Board Y15-C70-P40BL Flame Circuit Board Y15-C76-P40 Spinner Y15-S148-P11 Remote Control P115 Printed in China Style Selections is a registered trademark ® of LF, LLC. All rights reserved. Lowes.com...
