6 EVM Schematic and PCB

The ISO1644DW isolated I
be configured for use with an ISO1642DW or ISO1643DW. Each signal line (SDAx, SCLx) is configured with a
3.3-kΩ pullup resistor (R1 to R4) to the corresponding power supply (VCCx). These resistors may be replaced
with 0805 resistors of other values per the application requirements. For insight on calculating appropriate pullup
2
resistor values for I C buses, please refer to the
ISO164x devices are designed to sink different amounts of current on side 1 and side 2, be careful to
choose resistors that keep I
R1 to R4.
Signal pins may be tied directly to ground using the header pins (J1 on side 1; J2 on side 2) to simulate a
2
device pulling the I C line low. While not being actively driven low, the lines will be pulled up through the included
pullup resistors. Signal lines should not be tied directly to a supply voltage without a pullup resistor to
limit input current. These jumpers also provide input /output signal access, including for oscilloscope probes, to
each pin.
Ensure that SDAx and SCLx signal lines are not tied directly to VCCx. A current-limiting pullup resistor
is required, and populated by default, to limit current in the cases where the device pins drive a
low-voltage.

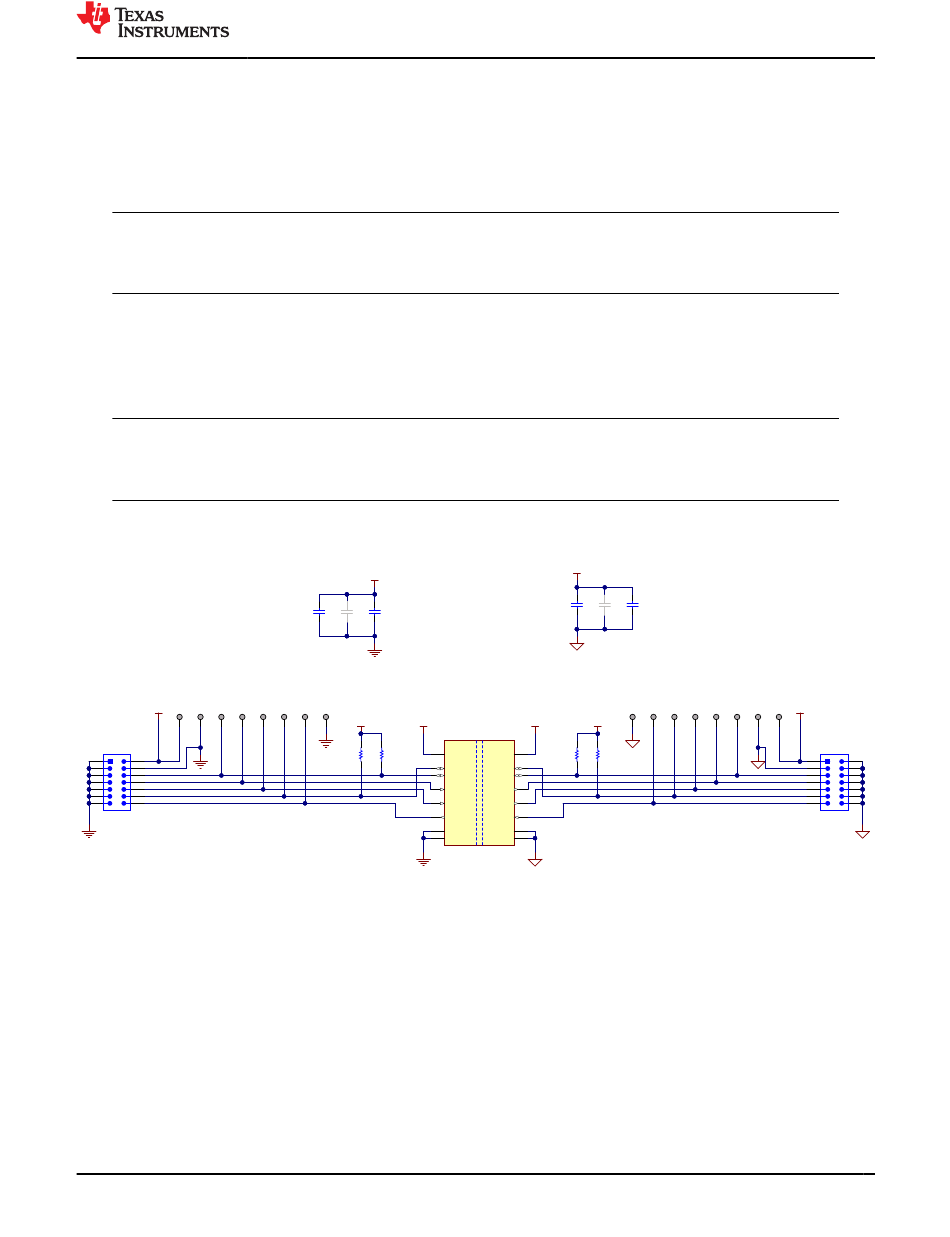

Figure 6-1 shows the schematic diagram for this EVM, and
board (PCB) layout.
VCC1 TP1 TP2 TP3 TP4
J1
1 2
3 4
GND1
5 6
7 8
9 10
11 12
13 14
GND1
