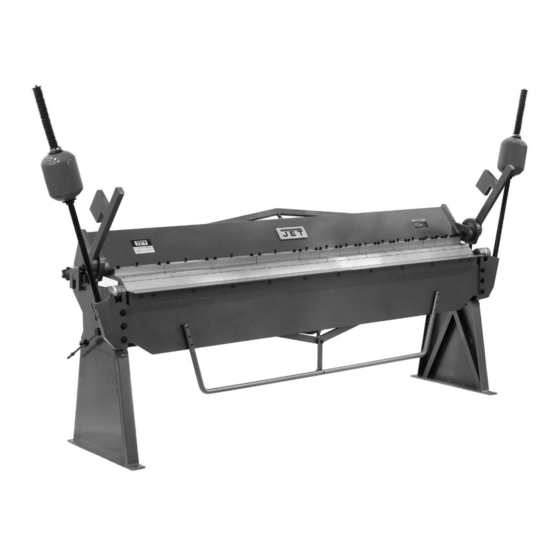

16 ga. x 100 in. box and pan brake

Advertisement

Quick Links

Operating Instructions and Parts Manual
16 ga. x 100 in. Box and Pan Brake
Model BPF-16100
JET
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-754115
Ph.: 800-274-6848
Edition 2 03/2016
www.jettools.com
Copyright © 2015 JET

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPF-14100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jet BPF-14100

  • Page 1 Operating Instructions and Parts Manual 16 ga. x 100 in. Box and Pan Brake Model BPF-16100 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-754115 Ph.: 800-274-6848 Edition 2 03/2016 www.jettools.com Copyright © 2015 JET...
  • Page 2: Important Safety Instructions

    5. Do not use this brake for other than its intended 14. Provide for adequate space surrounding work use. If used for other purposes, JET disclaims area and non-glare, overhead lighting. any real or implied warranty and holds itself 15.
  • Page 3: About This Manual

    If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com.
  • Page 4: Table Of Contents

    Weight, shipping ........................2992 lbs. (1360 kg) The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations.
  • Page 5: Setup And Assembly

    5.3 Unpacking and cleanup 5.0 Setup and assembly 1. Remove all contents from shipping crate and compare to the contents list in this manual. If shipping damage or any part shortages are Read and understand all identified, contact your distributor. Do not assembly instructions before...
  • Page 6: Adjustments

    Figure 5 6.2 Apron adjustment The apron assembly has been adjusted by the manufacturer for use with material having the capacity listed in the Specifications section. If any misalignment occurs, correct as follows. The forward edge of hold-down fingers should be Figure 3 adjusted parallel to pivot edge of press bar.
  • Page 7: Adjusting Clamping Pressure

    6.4 Adjusting clamping pressure Clamping pressure should be adjusted according to material thickness. Clamping pressure should be great enough to hold material securely in place but not so much that it is difficult to lock the clamping handles. Clamping pressure can be adjusted by turning the nuts on the threaded rod portion of yoke assembly (P, Figure 7).
  • Page 8: Bpf-16100 Floor Box And Pan Brake - Exploded View

    8.1.1 BPF-16100 Floor Box and Pan Brake – Exploded View...
  • Page 9: Bpf-16100 Floor Box And Pan Brake - Parts List

    8.1.2 BPF-16100 Floor Box and Pan Brake – Parts List Index No Part No Description Size 1 ....F008836 ....Hex Cap Screw ............M10x25 ......2 2 ....BPF16100-02 .... Spring Cover ....................2 3 ....BPF16100-03 .... Spring ......................2 4 ....
  • Page 10 ....LM000080 ....ID Label, BPF-16100 (not shown) ..............1 ....LM000133 ....Warning Label (not shown) ................1 ....JET-203..... JET Logo with adhesive (not shown) ....... 203 x 84mm ....1 Some parts are shown for reference only, and may not be available individually.
  • Page 11: Warranty And Service

    JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®...
  • Page 12 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
