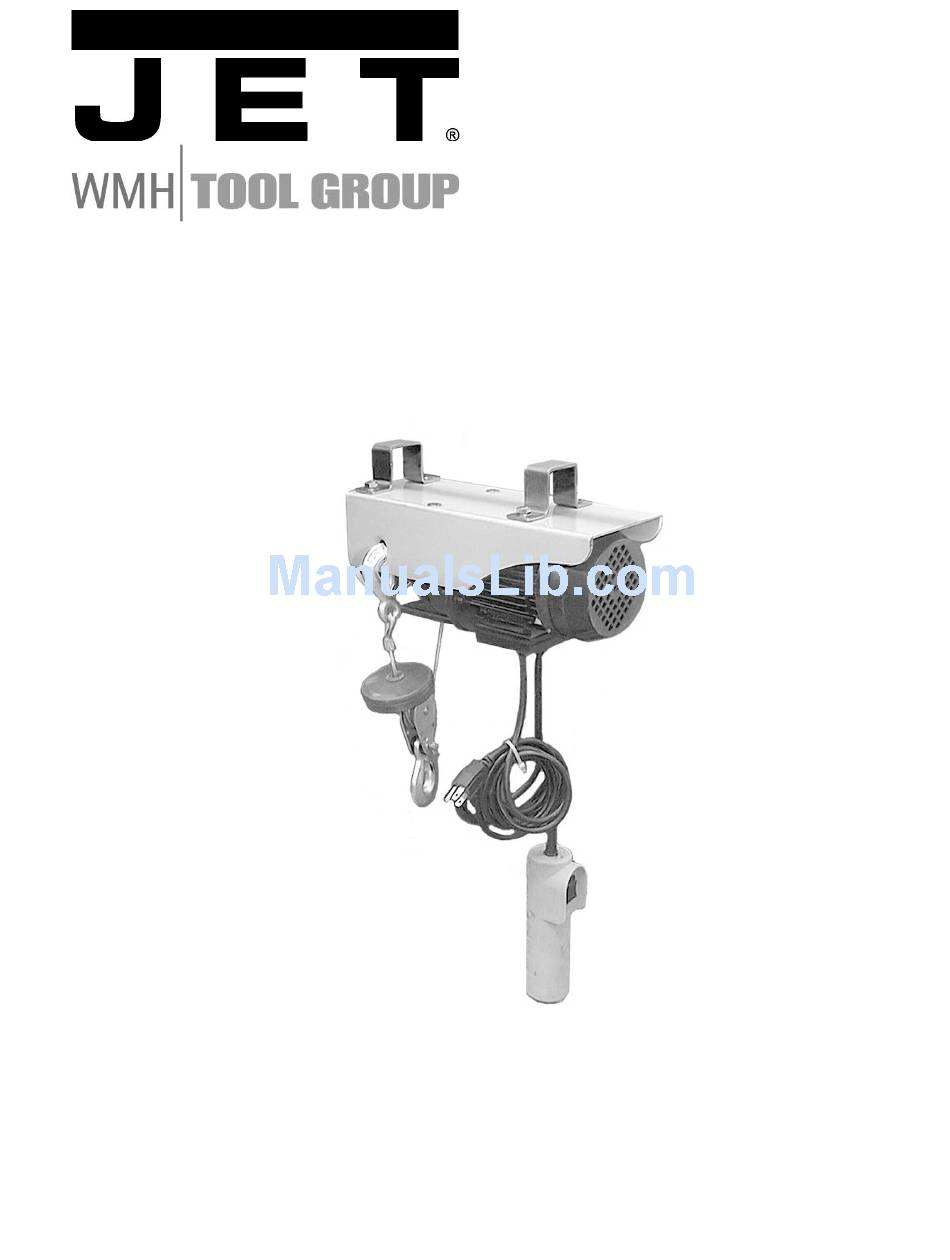

- Page 1 Operating Instructions and Parts Manual Wire Rope Hoist Models WRH-440/-880/-1320 WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60124 Part No. M-107001 Ph.: 800-274-6848 Revision A1 8/06 www.wmhtoolgroup.com Copyright © WMH Tool Group...
-
Page 2: Warranty And Service
This manual has been prepared for the owner and operators of a JET WRH Series Wire Rope Hoist. Its purpose, aside from machine operation, is to promote safety using accepted operating and maintenance procedures. To obtain maximum life and efficiency from your hoist and to aid in using it safely, please read this manual thoroughly and follow the instructions carefully. -
Page 3: Specifications
16. Do not operate this tool while tired or under the influence of drugs, alcohol or any medication. 17. Failure to comply with the above warnings may result in personal injury and/or property damage. Specifications Model Number ... WRH-440... WRH-880...WRH-1320 Stock Number... 107001...107002 ... 107003 Motor...3/4HP, 110V, 60Hz... 1-1/8HP, 110V, 60Hz... 1-1/2HP, 110V, 60Hz Cable diameter (in.) ...1/8... -
Page 4: Installation
Hoist to the angle irons on the trolley. Figure 2 shows the mounting of the Hoist to the WRT- 2000 JET Trolley (stock no. 107004, available from your dealer). Operation For proper and safe operation, the wire rope... -
Page 5: Maintenance
2. Pull out the wire rope by grasping the hook, and pull the hook away from the hoist while pressing the lower part of the rocker switch. Always leave at least three turns of the wire rope on the reel. 3. - Page 6 WRH Series Wire Rope Hoists...
- Page 7 Parts List: WRH-440 Index No. Part No. Description Size 1...WRH440-1 ... Frame..1 2...WRH440-2 ... Socket Head Screw ... M8x20... 2 3...WRH440-3 ... Hanger ..2 4...WRH440-4 ... Hex Cap Screw... M8x25... 4 5...WRH440-5 ... Lock Washer, External Tooth ... M8 ... 2 6...WRH440-6 ...
- Page 8 60 ...WRH440-60 ... Electrical Plug..1 61 ...WRH440-61 ... Split Pin ... 25x30mm... 1 62 ...WRH440-62 ... Pin..1 63 ...WRH440-63 ... Connecting Housing..1 65 ...WRH440-65 ... Snatch Block..1 66 ...TS-1550061 ... Flat Washer ... M8 ... 1 67 ...WRH440-67 ...
- Page 9 Parts List: WRH-880 Index No. Part No. Description Size 1...WRH880-1 ... Frame..1 2...WRH880-2 ... Socket Head Screw ... M10x26... 2 3...WRH880-3 ... Hanger ..2 4...WRH880-4 ... Hex Cap Screw... M10x30... 4 5...WRH880-5 ... Lock Washer, External Tooth ... M10 ... 2 6...WRH880-6 ...
- Page 10 58 ...WRH880-58 ... Grounding Terminal ..1 59 ...WRH440-59 ... Pan Head Screw... M4x8... 3 60 ...WRH880-60 ... Electrical Plug..1 61 ...WRH440-61 ... Split Pin ... 25x30mm... 1 62 ...WRH880-62 ... Pin..1 63 ...WRH880-63 ... Connecting Housing..1 64 ...WRH880-64 ...
- Page 11 Parts List: WRH-1320 Index No. Part No. Description Size 1...WRH1320-1 ... Frame..1 2...WRH880-2 ... Socket Head Screw ... M10x26... 2 3...WRH880-3 ... Hanger ..2 4...WRH880-4 ... Hex Cap Screw... M10x30... 4 5...WRH880-5 ... Lock Washer, External Tooth ... M10 ... 2 6...WRH880-6 ...
- Page 12 58 ...WRH880-58 ... Grounding Terminal ..1 59 ...WRH440-59 ... Pan Head Screw... M4x8... 3 60 ...WRH880-60 ... Electrical Plug..1 61 ...WRH440-61 ... Split Pin ... 25x30mm... 1 62 ...WRH880-62 ... Pin..1 63 ...WRH880-63 ... Connecting Housing..1 64 ...WRH880-64 ...
