Summary of Contents for Jet 752125

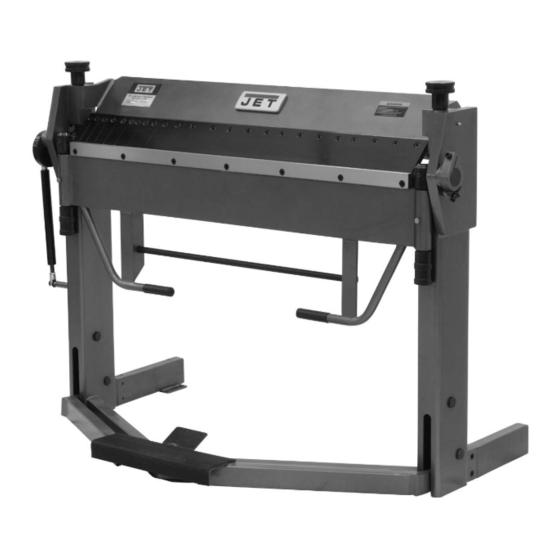

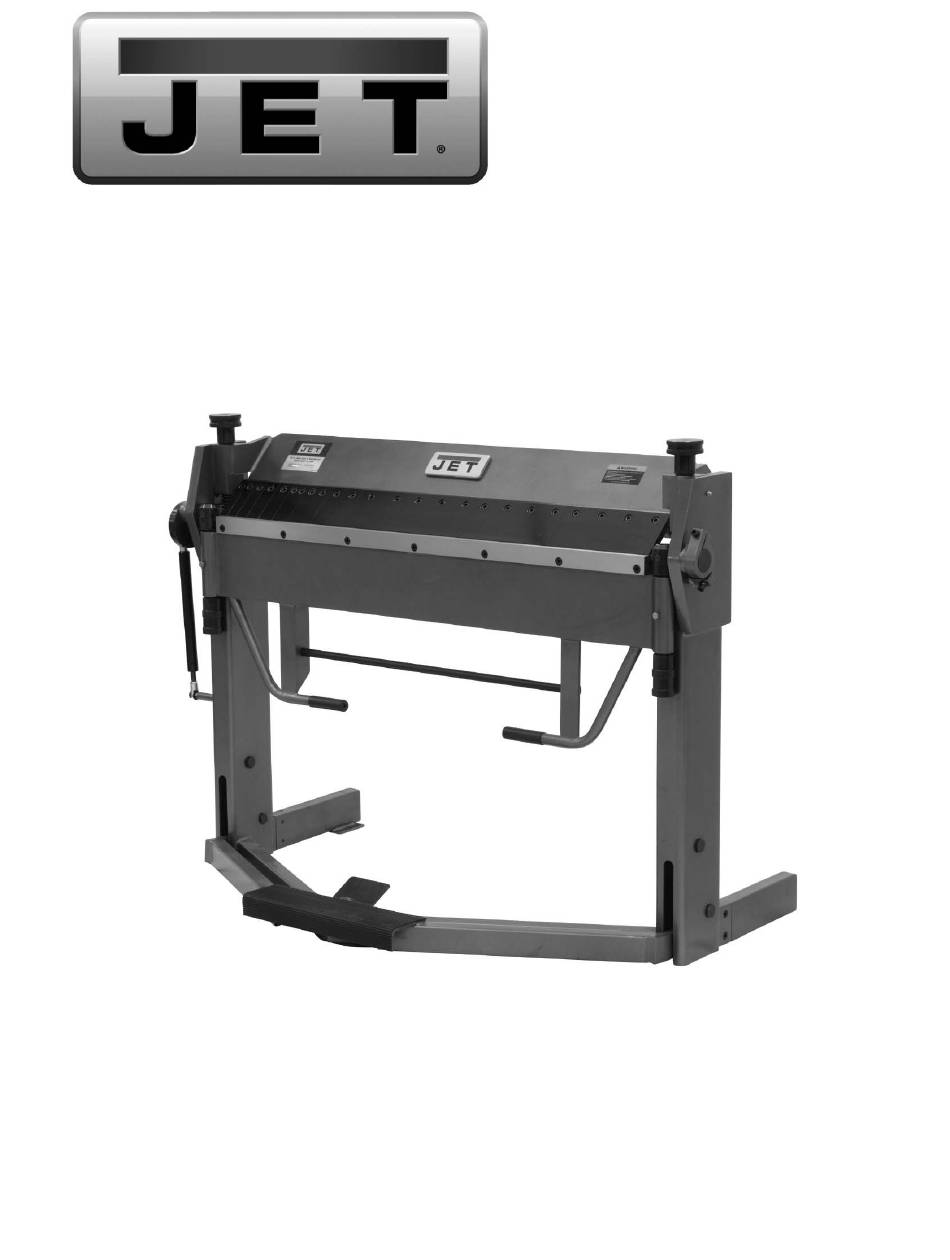

- Page 1 Operating Instructions and Parts Manual Box and Pan Brakes Models BPF-1240 and BPF-1450 BPF-1450 shown 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-752125 Ph.: 800-274-6848 Revision B2 08/2018 www.jettools.com Copyright © 2015 JET...
-
Page 2: Important Safety Instructions
21. Do not stand on machine. Serious injury could occur if machine tips over. Do not use this machine for other than its intended use. If used for other purposes, JET disclaims any real or implied warranty and WARNING: This product can expose you to... -
Page 3: Table Of Contents
Familiarize yourself with the following safety notices used in this manual. This means that if precautions are not heeded, it may result in minor injury and/or possible machine damage. This means that if precautions are not heeded, it may result in serious or even fatal injury 2.0 Table of Contents Section... -
Page 4: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... -
Page 5: About This Manual
Consult a Machinery’s Handbook and/or experienced users for such information. Whatever accepted methods or materials are used, always make personal safety a priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Specifications
Footprint (LxW) ........ 46-1/2” x 32-1/4” (1181 x 819mm) ....56-1/2” x 35-1/4” (1435 x 895mm) The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Unpacking And Cleanup
7.2 Unpacking and cleanup Inspect contents of shipping container for shipping damage. Report any damage to your distributor. Remove all contents from carton, and compare to the contents list in this manual. Report any part shortages to your distributor. Do not discard carton or packing material until machine is assembled and working properly. -
Page 8: General Procedure
8.4 General procedure Lower bending leaf and press foot pedal lock to release material. Remove or add clamping fingers as needed for width of material and type of bend. 9.0 Maintenance Adjust for setback and clamping pressure. Daily wipe down machine with a soft rag. Position stop bolt if needed. -
Page 9: Box And Pan Brake (40" Model) - Exploded View
11.1.1 Box and Pan Brake (40” model) – Exploded View... -
Page 10: Box And Pan Brake (40" Model) - Parts List
47 ....H40-219 ....Bending Leaf Blade ..................1 48 ....BPF1240-WL ..... Warning Label (not shown) ................1 49 ....JET-165 ..... JET Logo (not shown) ........165 x 68mm ......1 50 ....LM000162 ....ID Label, BPF-1240 (not shown) ..............1... -
Page 11: Box And Pan Brake (50" Model) - Exploded View
11.2.1 Box and Pan Brake (50” model) – Exploded View... -
Page 12: Box And Pan Brake (50" Model) - Parts List
47 ....H50-219 ....Bending Leaf Blade ..................1 48 ....BPF1240-WL ..... Warning Label (not shown) ................1 49 ....JET-165 ..... JET Logo (not shown) ........165 x 68mm ......1 50 ....LM000163 ....ID Label, BPF-1450 (not shown) ..............1...
