Summary of Contents for Jet BG-379

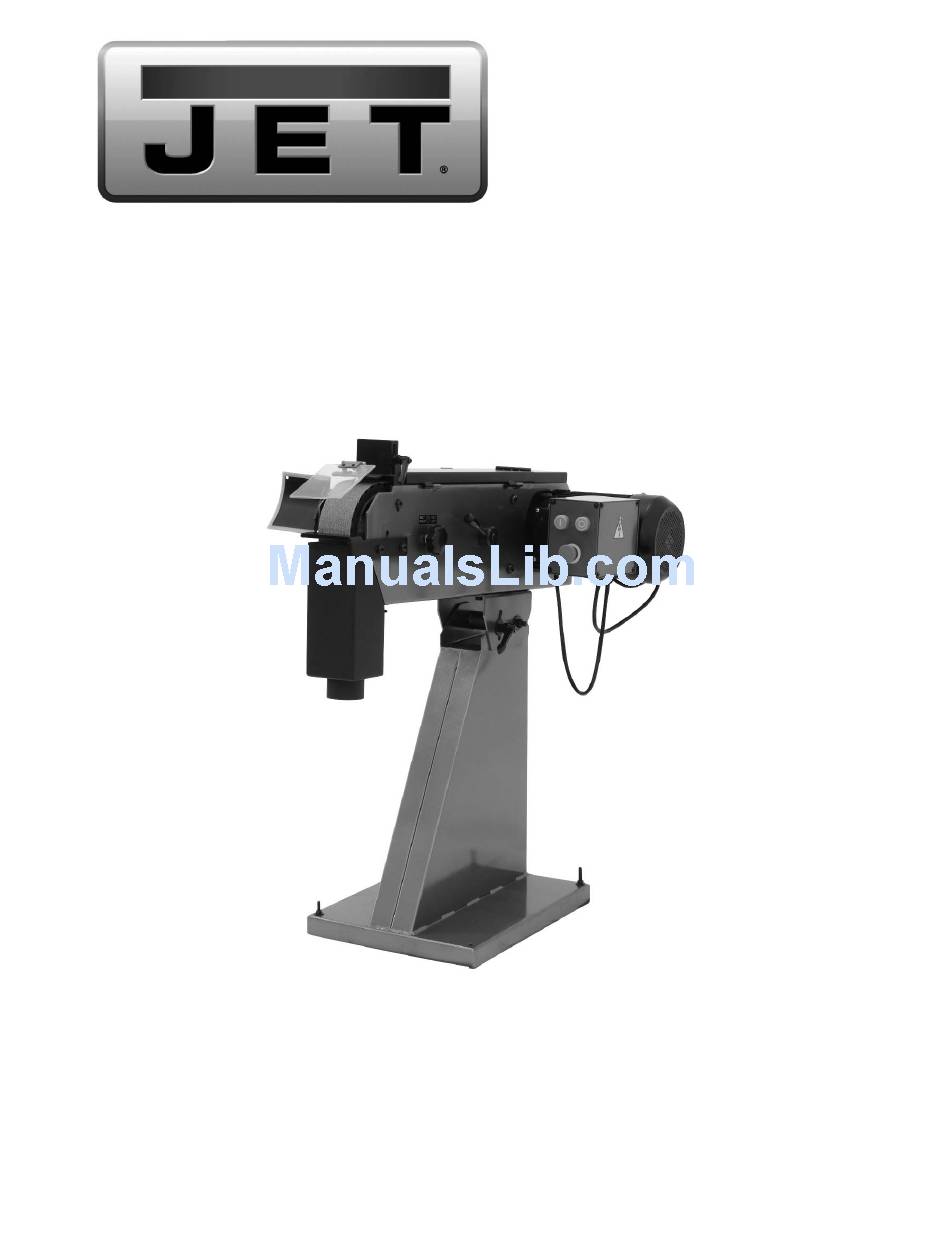

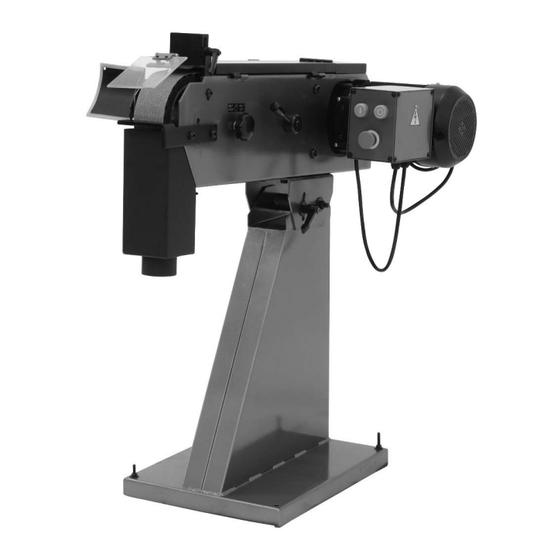

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 2-Wheel Belt Grinder 3” x 79” Model BG-379 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-414610 Ph.: 800-274-6848 Revision C 01/2016 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... -
Page 3: Table Of Contents
11.0 Troubleshooting ............................10 12.0 Replacement Parts ............................. 10 12.1.1 BG-379 Belt Grinders – Exploded View ....................11 12.1.2 BG-379 Belt Grinders – Exploded View ....................12 12.1.3 BG-379 Belt Grinders – Parts List ....................... 13 ... -
Page 4: Safety Warnings
16. The belt grinder should be secured to the floor 5. Do not use this machine for other than its before using. intended use. If used for other purposes, JET, disclaims any real or implied warranty and 17. Check damaged parts. Before further use of... -
Page 5: About This Manual
Additional knowledge can be obtained from experienced users or trade journals. Whatever accepted methods are used, always make personal safety a priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Features
5.0 Features Figure 1 1. Spark trap 10. Angle lock handle (x2) 2. Eye shield 11. Drive wheel 3. Front work support 12. Dust port 4. Contact wheel 13. Side panel 5. Top work support 14. Pedestal 6. Belt guard 15. -
Page 7: Specifications
50x15mm with dust collection. The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 8: Set-Up And Assembly
be connected. Place a warning placard on the fuse holder or circuit breaker to prevent it being turned 7.0 Set-Up and Assembly on while the machine is being wired. Grounding Instructions 7.1 Floor Diagram This machine must be grounded. In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. -
Page 9: Adjustments
undersized cord will cause a drop in line voltage 5. Move tension release lever (8) upward resulting in loss of power and overheating. (clockwise) to tighten belt. Use Table 1 as a general guide in choosing the 6. Close side cover and reinstall spark trap (1). correct size cord. -
Page 10: Troubleshooting
11.0 Troubleshooting Trouble Probable Cause Remedy No incoming power. Check all connections. Fuse blown, or circuit breaker tripped. Replace fuse, or reset circuit breaker. Grinder will not start. Cord damaged. Replace cord. Starting capacitor malfunction (single Replace starting capacitor. phase model). Improper belt splice. -
Page 11: Bg-379 Belt Grinders - Exploded View
12.1.1 BG-379 Belt Grinders – Exploded View... -
Page 12: Bg-379 Belt Grinders - Exploded View
12.1.2 BG-379 Belt Grinders – Exploded View... -
Page 13: Bg-379 Belt Grinders - Parts List
12.1.3 BG-379 Belt Grinders – Parts List Index No. Part No. Description Size 1 ....S-75B-000G ....Stand ......................1 2 ....TS-2342121 ....Nylon Lock Hex Nut ..........M12 ....... 3 3 ....TS-2360121 ....Flat Washer ............. 12mm ......2 4 .... - Page 14 Index No. Part No. Description Size 37 ....S-75-1029 ....Eye Protection Cover ..................1 38 ....TS-1540021 ....Hex Nut ..............M4 ......... 5 39 ....S-75-1034 ....Block with Thread ..................1 40 ....S-75-1011 ....Contact Wheel ....................1 43 ....
- Page 15 ....BG379-98 ....Sanding Belt ............3x79, 80G ..... 3 ....BG379-WL ....Warning Label (not shown) ........2” x 4-1/4”...... 1 ....JET-165..... Jet Logo (not shown) ..........165 x 68mm ....1 ....LM000159 ....ID Label, BG-379-1 (not shown) ..............1...
-
Page 16: Electrical Connections - Bg-379
13.0 Electrical Connections – BG-379 13.1 Single phase only 13.2 3-phase only...
