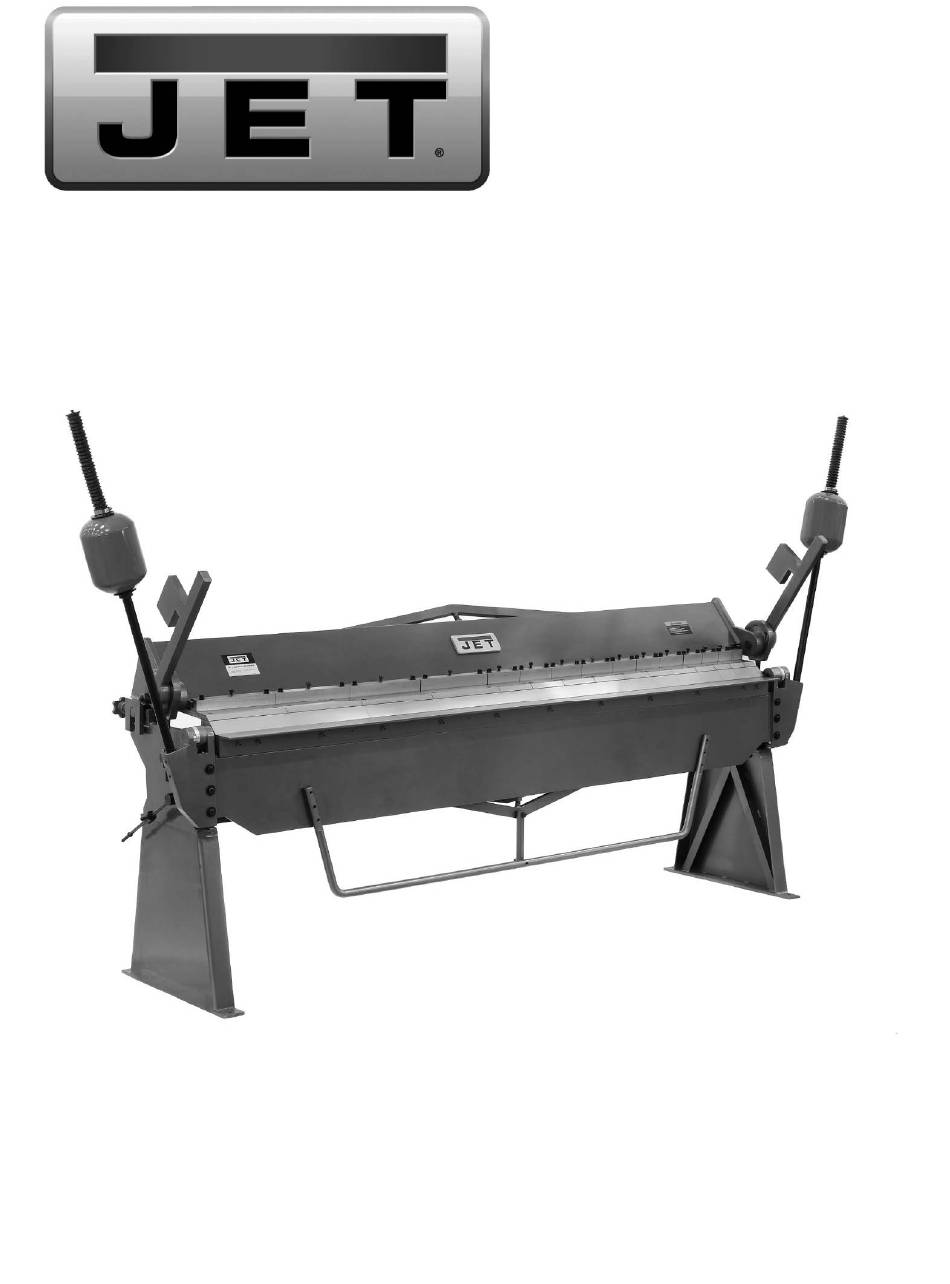

- Page 1 Operating Instructions and Parts Manual 16 ga. x 100 in. Box and Pan Brake Model BPF-16100 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-754115 Ph.: 800-274-6848 Edition 3 08/2018 www.jettools.com Copyright © 2015 JET...
-
Page 2: Important Safety Instructions
Do not use this brake for other than its intended 20. Maintain tools with care. Keep blades sharp and use. If used for other purposes, JET disclaims clean for the best and safest performance. any real or implied warranty and holds itself... -
Page 3: About This Manual
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 4: Table Of Contents
Weight, shipping ........................2992 lbs. (1360 kg) The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 5: Setup And Assembly
5.3 Unpacking and cleanup 5.0 Setup and assembly Remove all contents from shipping crate and compare to the contents list in this manual. If shipping damage or any part shortages are Read understand identified, contact your distributor. Do not assembly instructions before attempting... -
Page 6: Adjustments
Figure 5 6.2 Apron adjustment The apron assembly has been adjusted by the manufacturer for use with material having the capacity listed in the Specifications section. If any misalignment occurs, correct as follows. The forward edge of hold-down fingers should be Figure 3 adjusted parallel to pivot edge of press bar. -
Page 7: Adjusting Clamping Pressure
6.4 Adjusting clamping pressure Clamping pressure should be adjusted according to material thickness. Clamping pressure should be great enough to hold material securely in place but not so much that it is difficult to lock the clamping handles. Clamping pressure can be adjusted by turning the nuts on the threaded rod portion of yoke assembly (P, Figure 7). -
Page 8: Bpf-16100 Floor Box And Pan Brake - Exploded View
8.1.1 BPF-16100 Floor Box and Pan Brake – Exploded View... -
Page 9: Bpf-16100 Floor Box And Pan Brake - Parts List
8.1.2 BPF-16100 Floor Box and Pan Brake – Parts List Index No Part No Description Size 1 ....F008836 ....Hex Cap Screw ............M10x25 ......2 2 ....BPF16100-02 .... Spring Cover ....................2 3 ....BPF16100-03 .... Spring ......................2 4 .... - Page 10 ....LM000080 ....ID Label, BPF-16100 (not shown) ..............1 ....LM000133 ....Warning Label (not shown) ................1 ....JET-203 ..... JET Logo with adhesive (not shown) ....... 203 x 84mm ....1 Some parts are shown for reference only, and may not be available individually.
-
Page 11: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 12 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
