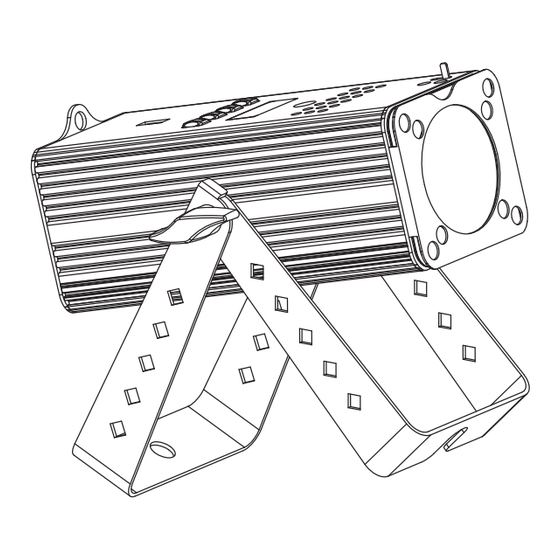

- Page 1 SCENE STORE EXPO USER GUIDE 10831 - Version 1 / 03-2018...
-
Page 2: Important Safety Information
Any maintenance procedure must be performed by a CONTEST authorised In order to avoid any electrical malfunction, please do not use any technical service. Basic cleaning operations must thoroughly follow our safety multi-socket, power cord extension or connecting system without instructions. -
Page 3: Technical Specifications
SFX-BE15QC - English 15W quadricolor LED 4° beam projector 2 - Technical specifications Optical Connectors › 1 x 15W Quadricolor LED › POWER IN/ OUT via 2P+E / Powercon© socket › Light output of 5070 Lux at 3m › DMX IN/OUT via 3 pins XLR ›... - Page 4 Please make sure the voltage of your workplace matches this meaning you will be required to use a cable able to hold projector. 20 kilos to support your SFX-BE15QC. Power output Allows you to connect your projector to another projector with a Powercon ©...
-
Page 5: Slave Mode
SFX-BE15QC - English 15W quadricolor LED 4° beam projector 4 - Menu tree Menu Sub menu Action ADDR:001~512 Allows you to set the DMX address. Values can be modified from 001 to 512. Allows you to select the number of DMX channels... - Page 6 SFX-BE15QC - English 15W quadricolor LED 4° beam projector Menu Sub menu Action Dreaming mode programs FADE RUN FADE: 01 ~ 16 Program selection SPEED: 01 ~ 16 Program speed adjustment Step and dreaming modes auto programs AUTO RUN FADE+SNAP...
-
Page 7: Dmx Modes
SFX-BE15QC - English 15W quadricolor LED 4° beam projector 5 - DMX modes 5.1 - 1-channel mode Channel Values Function Colours and Macros 000 - 007 Black 008 - 015 016 - 023 Orange 024 - 030 Yellow 031 - 038... - Page 8 SFX-BE15QC - English 15W quadricolor LED 4° beam projector 5.2 - 4-channels mode Channel Values Function Rouge 000 - 255 000 : Black out - 255 : Rouge 100% Vert 000 - 255 000 : Black out - 255 : Vert 100%...
- Page 9 SFX-BE15QC - English 15W quadricolor LED 4° beam projector 5.4 - 8-channel mode Channel Values Function 000 - 255 000 : Black out - 255 : Red 100% Green 000 - 255 000 : Black out - 255 : Green 100%...
- Page 10 SFX-BE15QC - English 15W quadricolor LED 4° beam projector 5.4 - 8-channel mode (continuation) 091 - 098 Pastel pink 099 - 105 Pastel apricot 106 - 113 Pastel light Ocre 114 - 120 Pastel Yellow Green 121 - 128 Pastel green pearl...
- Page 11 SFX-BE15QC - English 15W quadricolor LED 4° beam projector 6 - Notes Page 11...
- Page 12 That is why technical specifications and the products physical configuration might differ from the illustrations. Make sure you get the latest news and updates about the CONTEST ®...
