X660
MODEL V894MSH
MAXIMUM SECURITY HOUSING
Copyright © 1999 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Lexan is a registered trademark of General Electric Company
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 516-952-CCTV (2288) FAX: 516-951-CCTV (2288) TOLL FREE: 800-645-9116
UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com
Vicon part number 8006-8660-02-00
Section 6 Rev 599
Advertisement
Table of Contents
Related Manuals for Vicon V894MSH
Summary of Contents for Vicon V894MSH

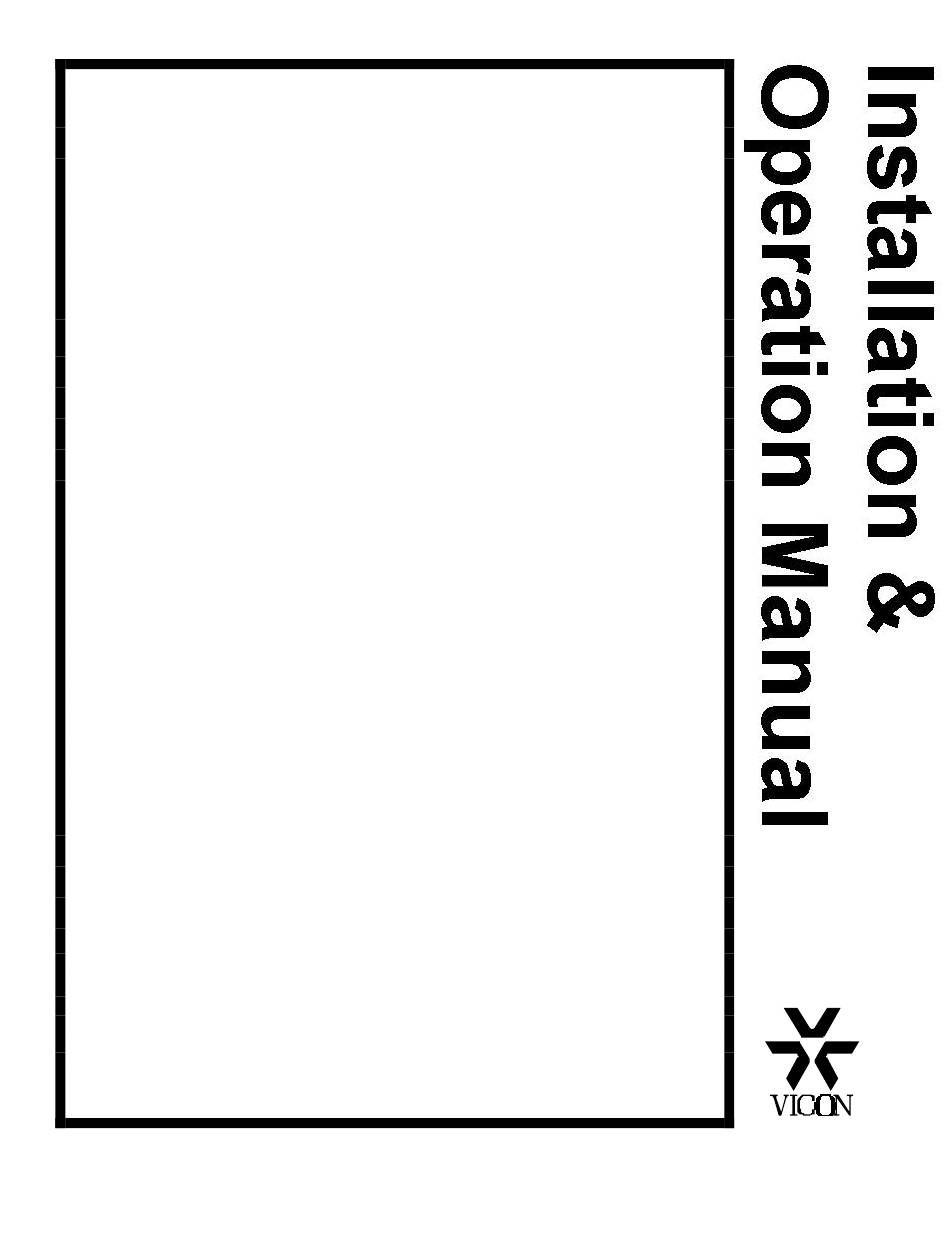

- Page 1 Copyright © 1999 Vicon Industries Inc. All rights reserved. Product specifications subject to change without notice. Vicon and its logo are registered trademarks of Vicon Industries Inc. Lexan is a registered trademark of General Electric Company VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788 TEL: 516-952-CCTV (2288) FAX: 516-951-CCTV (2288) TOLL FREE: 800-645-9116 UK: 44/(0) 1489-566300 INFOFAX: 800-287-1207 WEB: www.vicon-cctv.com...
-
Page 5: Table Of Contents
Inspection For Concealed Damage ....................... 3 Window Installation..........................3 Mounting the Housing.......................... 3 Wall or Ceiling Installation ........................5 Power Connections..........................5 Camera and Lens Installation......................6 Maintenance ............................9 Shipping Instructions........................10 Technical Information ........................11 Contents • • i X660 Rev 599 V894MSH... - Page 6 • • X660 Rev 599 V894MSH...
- Page 7 Use only with a mounting accessory recommended by Vicon, or sold with the video product. Any mounting of the video product should follow Vicon’s instructions, and a mounting accessory recommended by Vicon should be used.
- Page 8 Vicon or that have the keep from touching such power lines or circuits as sam e characteristics as the original part. Unauthorized contact with them might be fatal.
-
Page 9: Introduction
Introduction The information in this instruction manual covers the installation and maintenance of the V894MSH Maximum Security Housing. This unit should only be installed by a qualified technician using approved materials in accordance with national, state and local codes. Read these instructions through completely before attempting installation. - Page 10 2 • • X660 Rev 599 V894MSH...
-
Page 11: Installation
Installation Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to deliver the equipment in the same condition as it left the factory. Inspection For Visible Damage Immediately inspect the cartons upon delivery. Make a note of any visible damage on all copies of the carrier’s freight bill. - Page 12 Video, sync, and power cables must be routed to the housing location. Refer to Figure 1 when installing the V894MSH housing. The housing may be mounted directly to a solid ceiling or a wall or may be corner mounted using the V894CMB Corner Mounting Bracket.
-
Page 13: Wall Or Ceiling Installation
The 24 VAC input power to the camera must correspond to the TV scanning system of the camera; EIA or EIA- NTSC cameras require 60 Hz, CCIR or CCIR-PAL cameras require 50 Hz. Cable connections to the camera are included in the Camera and Lens Installation section that follows. Installation • • 5 X660 Rev 599 V894MSH... -
Page 14: Camera And Lens Installation
(A narrower angle of v iew is indicated by a larger focal length number.) 9. Check all hardware for tightness, then close and lock the cover. 6 • • Installation X660 Rev 599 V894MSH... - Page 15 Figure 2 Mounting and Cable Access Hole Pattern Installation • • 7 X660 Rev 599 V894MSH...
- Page 16 8 • • X660 Rev 599 V894MSH...
-
Page 17: Maintenance
The housing requires no maintenance other than the occasional cleaning of the Lexan window, using plain soap and water. Do not use abrasive cleaners which scratch the window surface. Do not use any solvent-type cleaners. Never wipe the window when it is dry. Maintenance • • 9 X660 Rev 599 V894MSH... -
Page 18: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 19: Technical Information
Housing: four (4) holes for ceiling or wall mounting. Camera: adjustable (tilt up/down and forward/rearward); 1/4-20 x 5/16 screw. NEMA Standard: 2. (Based on engineering evaluation and test. Not tested independently.) Technical Information • • 11 X660 Rev 599 V894MSH...
