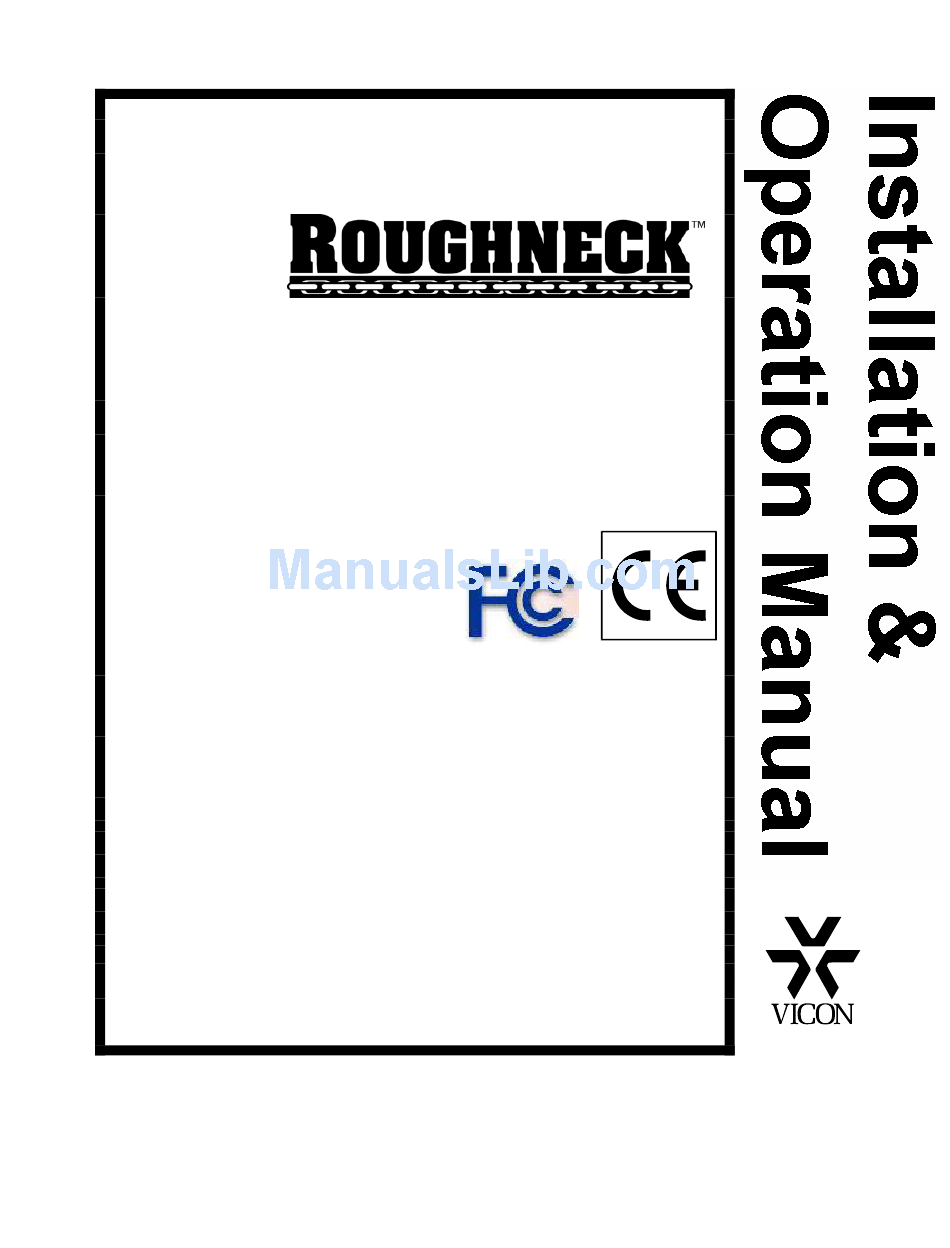

X935-20-00
MODEL V894CSHR-VF-C CORNER-
MOUNTED AND V894WSHR-VF-C WALL-
MOUNTED HIGH-SECURITY CAMERAS
Copyright © 2004 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Loctite is a trademark of Loctite Corporation.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44 (0) 1489 566300
WEB: www.vicon-cctv.com
Vicon part number 8006-8935-20-00
Section 3 Rev 1204
Advertisement
Table of Contents
Related Manuals for Vicon Roughneck V894CSHR-VF-C
Summary of Contents for Vicon Roughneck V894CSHR-VF-C
- Page 1 Copyright © 2004 Vicon Industries Inc. All rights reserved. Product specifications subject to change without notice Vicon and its logo are registered trademarks of Vicon Industries Inc. Loctite is a trademark of Loctite Corporation. VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788...
-
Page 3: Fcc Notice
FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception. -
Page 4: Table Of Contents
Contents Introduction......................... 1 Installation........................... 2 Unpacking and Inspection ..........................2 Inspection for Visible Damage ........................2 Inspection for Concealed Damage....................... 2 Physical Installation ............................2 Mounting the Housing ..........................4 Cable Connections ............................5 Coaxial Video Cable ..........................5 Camera Power Connections........................5 Final Installation Steps .......................... - Page 5 Use only with a mounting accessory recommended by Vicon, or sold with the video product. Any mounting of the video product should follow Vicon’s instructions, and a mounting accessory recommended by Vicon should be used.
- Page 6 Vicon or that have the into such power lines or circuits. When installing an same characteristics as the original part. Unauthorized...
-
Page 7: Introduction
Introduction The information in this manual provides installation and maintenance procedures for the V894CSHR-VF-C Corner-Mounted and V894WSHR-VF-C Wall-Mounted High-Security Camera/Housings. These units should only be installed by a qualified technician using approved materials in conformance with federal, state, and local codes. Read these instructions thoroughly before beginning an installation. The V894CSHR-VF-C and V894WSHR-VF-C are integrated housing/camera/lens systems. -
Page 8: Installation
Installation Unpacking and Inspection All Vicon equipment is inspected and tested before leaving the factory. It is the carrier’s responsibility to deliver the equipment in the same condition in which it left the factory. Inspection for Visible Damage Immediately inspect the cartons upon delivery. On all copies of the carrier’s freight bill, make a note of any visible damage. - Page 9 Corner Mount Wall Mount Figure 1 Installation Diagram Installation • 3 X935-20-00 Rev 1204 V894CSHR-VF/V894WSHR-VF High-Security Cameras...
-
Page 10: Mounting The Housing
Item Quantity Function Rubber grommet Seals cable access hole against dust, prevents cable abrasion No. 8 Torx™ bit Use to remove and install tamperproof screws No. 8-32 tamperproof Torx screw Supplied as spares Cable tie mount, adhesive base Secures camera power cables Cable tie Secures camera power cables Table 2: Accessory Pack Contents... -
Page 11: Cable Connections
A UL listed Class 2 direct plug-in transformer with 24 VAC 200 mA output is required for powering the V894CSHR-VF-C and V894WSHR-VF-C cameras. Power Supplies Vicon recommends several power supplies, depending on the needs of the installation. Refer to the table below. For other multichannel power supplies, contact Altronix Corporation at 888-258-7669. Model Number... -
Page 12: Camera Synchronization
Camera Synchronization If there is more than one unit in a system, the cameras have to be synchronized to ensure there is no roll of video. If the camera will be used in a line lock video application, the camera interface board is already set in line lock mode by default. -
Page 13: Dip Switch Settings
Compensation. The ALC setting is used for external autoiris and the ELC setting is used for internal autoiris. Pole 1 of the DIP switch is set to ON for ELC and OFF for ALC. Vicon sets the ELC/ALC mode to ELC prior to shipment. -
Page 14: Final Installation Steps
Final Installation Steps The last installation steps include repositioning the camera and fastening the outer cover in place. 1. If the camera was removed, rotated or tilted during the cable connection, reinstall the camera and adjust until it is directed at about the center of the black mask on the inside of the housing window. Be certain the lens doesn’t touch the winsow when reinstalling the cover. -
Page 15: Coaxial Cable Recommendations
Coaxial Cable Recommendations Caution: Careful selection of proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended, or equivalent, are installed. In all cases, coaxial cable impedance should be 75 ohms. -
Page 16: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 17: Technical Information
Technical Information ELECTRICAL Input Voltage: 24 VAC ±20%, isolated input. Current Rating: 200 mA. Power Consumption: 4.8 W. Heat Equivalent: 0.27 btu/min (0.07 kg-cal/min). Note: These figures represent the conversion of 100% of the electrical energy to heat. Actual percentage of heat generated will be less and will vary from product to product. - Page 18 MECHANICAL Application: Indoor. Dimensions: Height: 4.5 in. (114 mm). Width: 4.0 in. (102 mm). Length: V894CSHR-VF-C: 5.5 in. (140 mm). V894WSHR-VF-C: 4.75 in. (121 mm). Weight: 2.75 lb (1.2 kg). Construction: Cover: stainless steel Internal Brackets: zinc-plated steel. Window: polycarbonate plastic. Finish: Satin brushed.
- Page 19 Table 4: Camera/Lens Specifications Technical Characteristic Camera Image Sensor Format 1/3 inch Image Sensor Type ExView CCD Pixel Array 752 X 582 (PAL) TV System Standard 2:1 interlace Monochrome/Color Color Horizontal Resolution 480 lines Sensitivity 0.07 fc (0.8 lux) at 40 IRE (f/1.6) Signal-to-Noise Ratio >...
-
Page 20: Vicon Standard Equipment Warranty
Software supplied either separately or in hardware is furnished on an “As Is” basis. Vicon does not warrant that such software shall be error (bug) free. Software support via telephone, if provided at no cost, may be discontinued at any time without notice at Vicon’s sole discretion. - Page 22 Fax: +32 (2) 712 8781 Far East Office Unit 5, 17/F, Metropole Square 2 On Yiu Street, Shatin New Territories, Hong Kong (852) 2145-7118 Fax: (852) 2145-7117 Internet Address: www.vicon-cctv.com 16 • Vicon Standard Equipment WarrantyX935-20-00 Rev 1204 V894CSHR-VF/V894WSHR-VF High-Security Cameras...
