AS-1H1V Installation and
Operation Guide

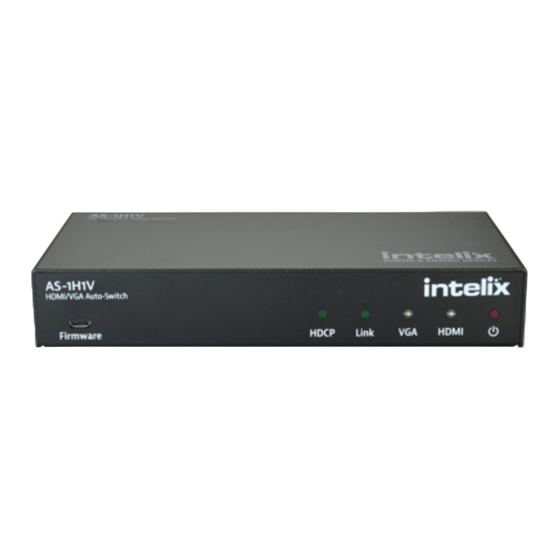

AS-1H1V
HDMI/VGA Auto-Sw tch
F rmw re
HDCP
L n
VGA
HDMI
PoH
Auto
VGA
Gnd
HDMI
TX
RX
HDBT
HDMI Out
HDMI In
VGA In
Cont ct
RS232
24V DC
Rev 160111
11675 Ridgeline Dr.
Toll-Free: 800-530-8998
Colorado Springs, CO 80921
Fax: 719-260-0075
supportlibav@libav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Intelix AS-1H1V and is the answer not in the manual?

Questions and answers

Summary of Contents for LIBERTY AV SOLUTIONS Intelix AS-1H1V

  • Page 1 AS-1H1V Installation and Operation Guide AS-1H1V HDMI/VGA Auto-Sw tch F rmw re HDCP HDMI Auto HDMI HDBT HDMI Out HDMI In VGA In Cont ct RS232 24V DC Rev 160111 11675 Ridgeline Dr. Toll-Free: 800-530-8998 Colorado Springs, CO 80921 Fax: 719-260-0075 supportlibav@libav.com...
  • Page 3: Important Safety Instructions

    AS-1H1V Installation Guide Important Safety Instructions 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference. 3.
  • Page 4 AS-1H1V Installation Guide 26. When the apparatus is not in use or during its relocation, take care of the power cord and plugs; e.g. tie up the power cord with cable tie or similar. The tie must be free from sharp edges and the like that might cause abrasion of the power cord.
  • Page 5: Table Of Contents

    AS-1H1V Installation Guide Table of Contents Important Safety Instructions ��������������������������������������������������������������������������������������������������������������������������� Product Overview ��������������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ���������������������������������������������������������������������������������������������������������������������������������� Basic Installation ����������������������������������������������������������������������������������������������������������������������������������������������� HDBaseT Cabling Requirements ������������������������������������������������������������������������������������������������������������������������ Contact Closure Inputs �������������������������������������������������������������������������������������������������������������������������������������� Default Mode - Auto-Switching ........................
  • Page 6 AS-1H1V Installation Guide RS232 Control ������������������������������������������������������������������������������������������������������������������������������������������������� Switching Commands ���������������������������������������������������������������������������������������������������������������������������������������� Power Management ����������������������������������������������������������������������������������������������������������������������������������������� HDCP Compliance ��������������������������������������������������������������������������������������������������������������������������������������������� Device Baud Rate ���������������������������������������������������������������������������������������������������������������������������������������������� Device Information �������������������������������������������������������������������������������������������������������������������������������������������� Factory Reset����������������������������������������������������������������������������������������������������������������������������������������������������� EDID Configuration ������������������������������������������������������������������������������������������������������������������������������������������� VGA Scaling Configuration �������������������������������������������������������������������������������������������������������������������������������� Display Control Settings ������������������������������������������������������������������������������������������������������������������������������������ Display Control Queries ������������������������������������������������������������������������������������������������������������������������������������� Display Control Hex Commands ������������������������������������������������������������������������������������������������������������������������ Troubleshooting ���������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 7: Product Overview

    AS-1H1V Installation Guide Product Overview The Intelix AS-1H1V is an under table mounted switcher designed to be the primary PC interface for classrooms, boardrooms, and conference centers. It features VGA + Audio to HDMI conversion and an HDMI input. The AS-1H1V utilizes HDBaseT technology to extend the digital output up to 60 meters away using solid core shielded Category 5e or greater cable.
  • Page 8: Front And Rear Panels

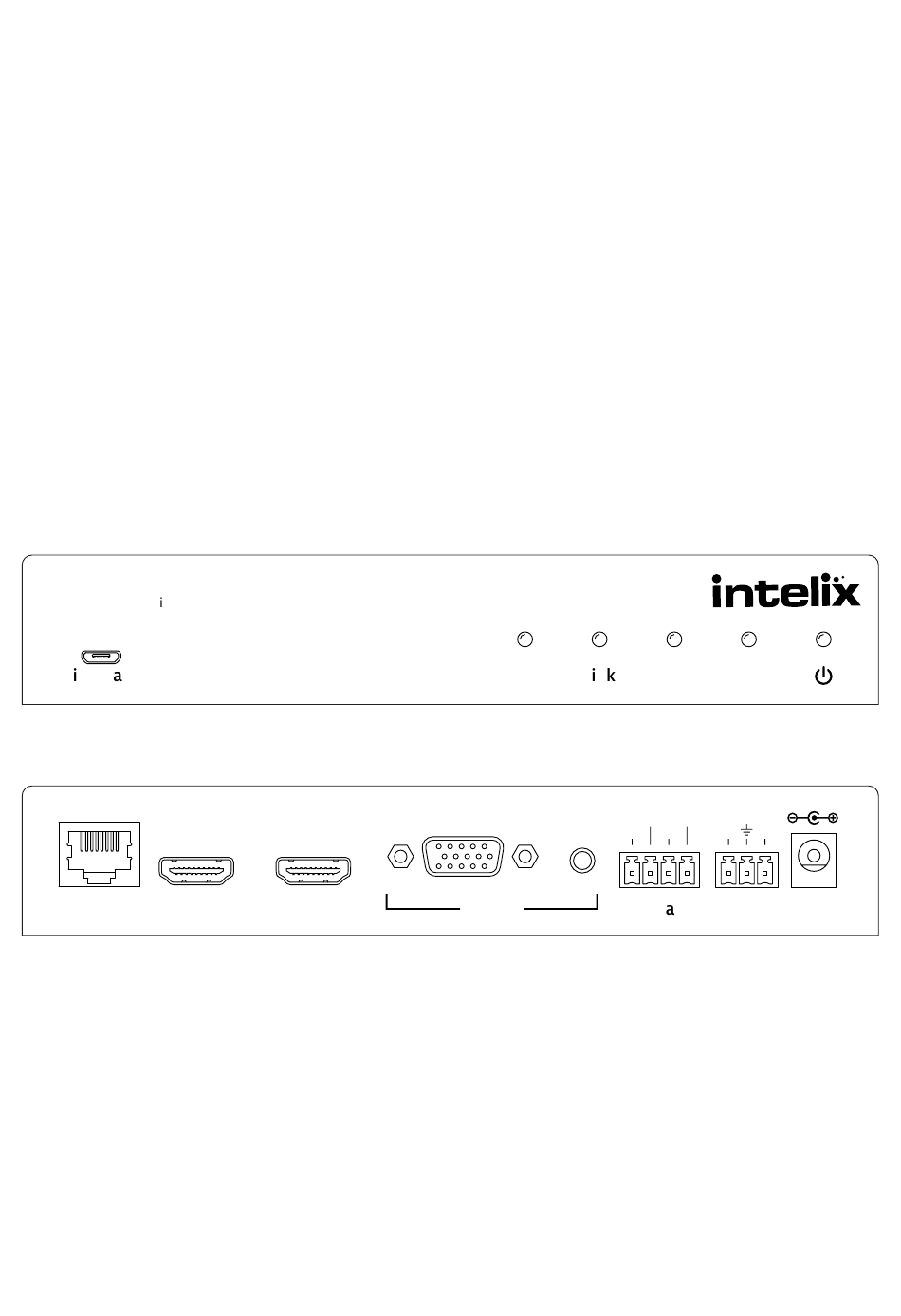

    AS-1H1V Installation Guide Front and Rear Panels Front Panel AS-1H1V HDMI/VGA Auto-Sw tch F rmw re HDCP HDMI Micro USB port for firmware updating HDCP status LED HDBaseT Link status LED VGA input status LED HDMI input status LED Power LED Rear Panel Auto HDMI...
  • Page 9: Installation Instructions

    AS-1H1V Installation Guide Installation Instructions Basic Installation Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. Connect shielded Category 5E or greater twisted pair cable with the TIA/EIA-568B crimp pattern between the transmitter (AS-1H1V) and the HDBaseT receiver. If the HDBaseT receiver cannot provide power to the AS-1H1V or the receiver requires remote power, connect the included power supply to the 24V DC power input of the device.
  • Page 10: Contact Closure Inputs

    AS-1H1V Installation Guide Contact Closure Inputs The AS-1H1V includes dry contact closure inputs to allow different types of manual switching. These contact closure inputs are intended to be connected directly to relays or switches. To activate, simply short the associated terminal to the “GND”...
  • Page 11: Device Power

    AS-1H1V Installation Guide Device Power The AS-1H1V supports two types of power input: PoH (Power over HDBaseT) and rear panel input. When using PoH, a compatible HDBaseT receiver can power the AS-1H1V by inserting power onto the twisted pair cable. When using a compatible HDBaseT receiver, there is no need to use the rear panel power input. If using a different receiver that does not supply power or the receiver requires remote power, you must connect power to the rear power input.
  • Page 12: General Operation

    AS-1H1V Installation Guide General Operation Automatic Switching By placing a jumper between the “Auto” and “Gnd” terminals on the back of the AS-1H1V, the unit will switch inputs by sensing an active video signal. The AS-1H1V will switch automatically to the “last in” connected input. For example, if an VGA signal is currently displayed, and then connect an HDMI source, the unit will switch to the HDMI input.
  • Page 13: Firmware Port

    AS-1H1V Installation Guide Firmware Port A separate document will provide usage instructions once a new firmware update is available. The included female USB Type A to male micro USB type B cable will be required for any future firmware updates. Please keep the firmware update cable in a safe location.
  • Page 14: Hdcp Management

    AS-1H1V Installation Guide HDCP Management The AS-1H1V offers advanced HDCP management to allow greater compatibility with other devices. The output will always be encrypted or unencrypted, following the status of the source content. If the content is encrypted, the output of the HDBaseT receiver will be encrypted; if the content is unencrypted, the output of the HDBaseT receiver will be unencrypted.
  • Page 15: Display Control Functionality

    AS-1H1V Installation Guide Display Control Functionality The AS-1H1V may be used to control power and input status of the LCD or Projector connected to an HDBaseT receiver. When the AS-1H1V is “woken up from low-power mode, it will send the preprogrammed “Power On” command, followed by the “Input Select”...
  • Page 16 AS-1H1V Installation Guide RS232 Control Default RS232 Settings: 9600 baud, 8 Data bits, 1 Stop bit, Parity = None <CR> = Carriage return (Hex 0D) <LF> = Line Feed (Hex 0A) Switching Commands Description Command Response SET HDMI<CR><LF> SET HDMI!<CR><LF> Select HDMI input SET VGA<CR><LF>...
  • Page 17 AS-1H1V Installation Guide HDCP Compliance Description Command Response HDCP ON<CR><LF> HDCP ON!<CR><LF> HDCP Compliance ON HDCP OFF<CR><LF> HDCP OFF!<CR><LF> HDCP Compliance OFF GET HDCP<CR><LF> Get HDCP Compliance status HDCP ON! <CR><LF> OR HDCP OFF!<CR><LF> Device Baud Rate The default baud rate for the AS-1H1DP is 9600. This can be changed to accommodate various installation needs: 2400, 4800, 9600, 19200, 38400, 57600, 115200.
  • Page 18 AS-1H1V Installation Guide EDID Configuration The EDID settings listed below will only be passed to the HDMI input. Description Command Response EDID UHD<CR><LF> EDID UHD!<CR><LF> UHD/30 EDID FHD<CR><LF> EDID FHD!<CR><LF> 1080p EDID HD<CR><LF> EDID HD!<CR><LF> 720p EDID WUXGA<CR><LF> EDID WUXGA!<CR><LF> 1920x1200 EDID WXGA2<CR><LF>...
  • Page 19 AS-1H1V Installation Guide Display Control Settings Description Command Response DFG1 DFG1!<CR><LF> Turn Display Control ON Display Control On<CR><LF> DFG0 DFG0!<CR><LF> Turn Display Control OFF Display Control Off<CR><LF> DONxx DON!<CR><LF> Store the ON command for Display Example: pwron<CR> Control (xx = up to 25 characters) DONpwron <CR><LF>...
  • Page 20 AS-1H1V Installation Guide Display Control Queries The query responses will be identical to the Display Control commands entered into the device. Description Command Response DFG? Display Control state? DFG1<CR> OR DFG0<CR> DON? DONpwron<CR> Display On command? DOF? DOFpwroff<CR> Display Off command? DIS? DIShdmi1<CR>...
  • Page 21 AS-1H1V Installation Guide Troubleshooting Device does not power on Apply an active video signal; the unit may be in standby mode. » Transmit the WAKE command via RS232. » If using a receiver with PoH, verify that the receiver is powered. »...
  • Page 22 AS-1H1V Installation Guide Technical Specifications Input/Output Connections HDMI Input One (1) HDMI Type A Receptacle VGA Input One (1) PC Video HD-15-F Receptacle Analog Audio One (1) 3.5 mm TRS Receptacle HDBaseT Port One (1) 8P8C port (Shielded RJ45) Power One (1) 2-pin Removable Terminal Block Connector RS232 Port with 12V DC Output One (1) 4-pin Removable Terminal Block Connector...
  • Page 23 AS-1H1V Installation Guide...
  • Page 24 Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
