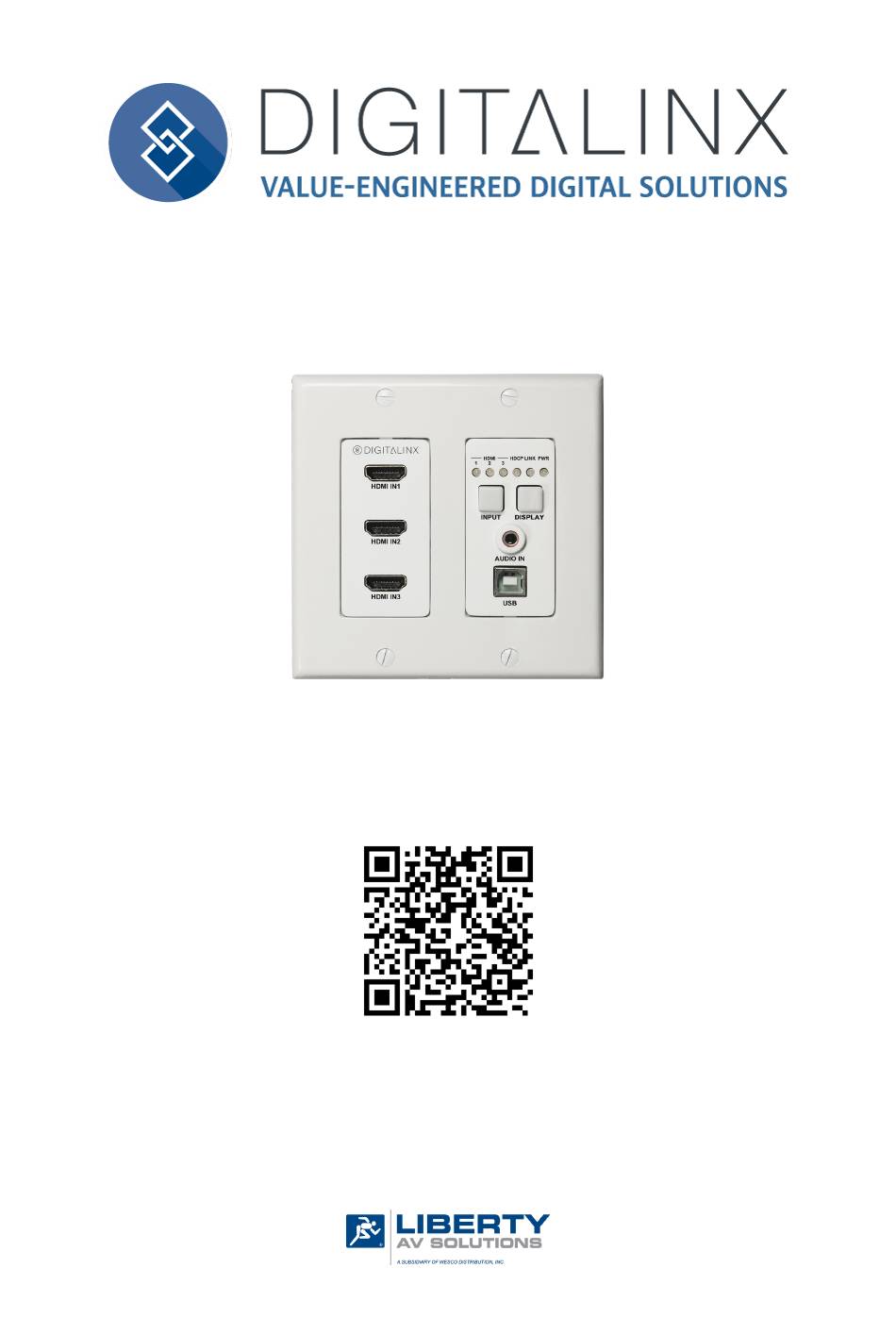

DL-3H1U-WP-W Quick Install Guide
This guide is for quick installation only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 190918
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DigitaLinx DL-3H1U-WP-W and is the answer not in the manual?

Questions and answers

Related Manuals for LIBERTY AV SOLUTIONS DigitaLinx DL-3H1U-WP-W

Summary of Contents for LIBERTY AV SOLUTIONS DigitaLinx DL-3H1U-WP-W

  • Page 1 DL-3H1U-WP-W Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 190918 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO...
  • Page 3 DL-3H1U-WP-W Quick Guide Product Overview The DigitaLinx DL-3H1U-WP-W is a 3x1 auto switching HDBaseT 2.0 transmitter that supports the long distance transport of HDMI and High Speed USB 2.0 signals up to 100 meters / 330’ using category cabling. The DL-3H1U-WP-W is 4K compatible with a max resolution of 4K@60Hz / 4:2:0 8bit deep color.
  • Page 4 DL-3H1U-WP-W Quick Guide Front Panel View 1. HDMI IN1, IN2, IN3 - HDMI inputs 1-3 2. RESET - Factory default reset button 3. HDMI LEDs • When ON; Corresponding HDMI input signal is being transmitte • When OFF; No HDMI signal is being transmitted or signal is unstable 4.
  • Page 5 DL-3H1U-WP-W Quick Guide Connectivity Instructions 1. Verify all components included with the extender set are present before installation. 2. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. 3. Connect Category 6 or greater twisted pair cable with RJ45 connectors between the transmitter (DL-3H1U-WP-W) and the receiver (DL-HD2-RX or DL-HD2A-RX, sold separately) HDBaseT ports .TIA/ EIA-568B straight-through wiring connections must be used with all HDBaseT extenders.
  • Page 6 DL-3H1U-WP-W Quick Guide Cabling Wiring Requirements HDBaseT Cabling To ensure proper performance of the DL-HD70LSIR, it is recommended that you use solid core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances. When using shielded category cabling ALWAYS...
  • Page 7 DL-3H1U-WP-W Quick Guide Technical Specifications Video Video Inputs (3) HDMI Video Input Connector (3) HDMI type A Input Video Signal HDMI Output Video Signal HDBaseT 2.0 HDMI: 4096 x 2160@24/30/60 (YUV4:2:0); 3840 x 2160@24/30/60 Input Resolutions Supported (YUV4:2:0); 2560 x 1600@60; 2560 x 1440@60; 1920 x 1200@60; 1920 x 1080@60;...
  • Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
