- Page 1 QUICK GUIDE TEAMUP+ SERIES 4-PORT POWERED USB 3.0 HUB W/CONTROL DL-N5USB-PHUB www.libav.com 800.530.8998...
-
Page 2: Product Overview

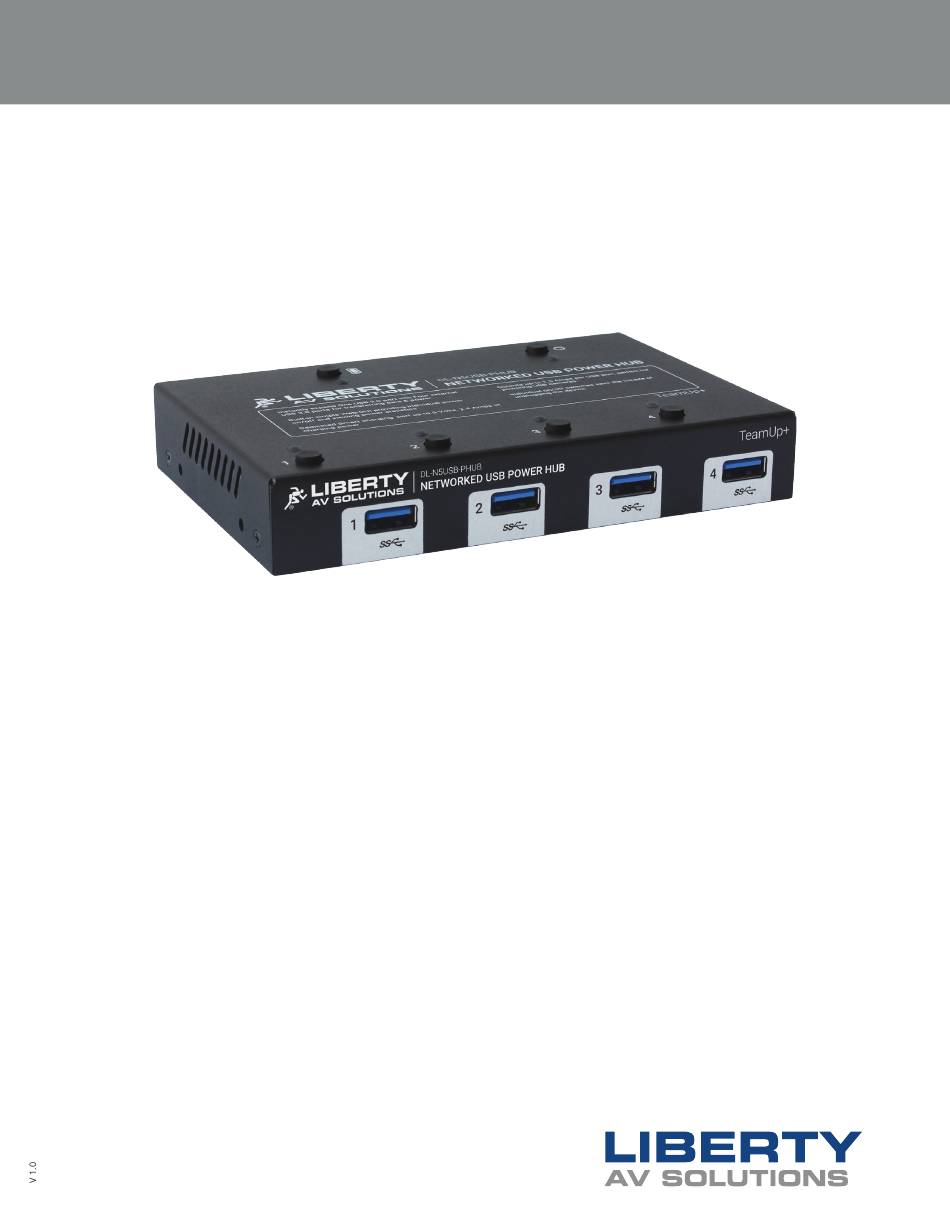

PRODUCT OVERVIEW The Liberty AV DL-N5USB-PHUB is a commercial-grade, USB 3.0 SuperSpeed, 4 +1 port powered USB hub designed to expand the capability of your computer, all through a single cable. Add one dedicated power convenience USB port and interact with up to four USB devices simultaneously while providing full USB 3.0 charging power (5v 900mA per port). - Page 3 PRODUCT BREAKDOWN Panel Description Name Description 1. Female 12V DC Power Port 5. Power Button and LED: Host Port Connect to the provided DC 12V power 2. Female USB 3.0 Type B Port: Host PC 6. Power Button and LED: Charging Port adapter.
-
Page 4: Installation
INSTALLATION 1. Plug the included AC power adapter into the power jack at the rear of the USB hub and an electrical outlet. 2. Plug the provided USB cable into the Host port of the device. 3. Plug the other end of the cable into your computer's port. 4. -
Page 5: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING No power • Check if the power adapter is normal, and ensure the provided power adapter is used. • Press the power button to see if the device can be powered on. LED corresponding to USB port is off Check to see if the port is closed, and press the corresponding button to open it. -
Page 6: Api Commands
API COMMANDS First Steps Establish a connection with USB hub through a TELENT session. IP: The unit’s assigned IP address. Default is 192.168.1.254 *Port number: If required, port number is 23 by default. Establishing Commands [SET USB PORT] denotes command key words, case [prm prm1] denotes parameters and is case insensitive <CR><LF... - Page 7 API COMMANDS CONTINUED Description Command Example Reboot any USB port Command: Command: REBOOT USB prm <CR><LF> REBOOT USB 2<CR><LF> Return: Return: REBOOT USB prm<CR><LF> prm = {1, 2, 3, REBOOT USB 2 <CR><LF> 4, 5}; 1~4: USB3.0 Port 5: USB2.0 charging port System reboot Command:...
- Page 8 MAINTENANCE AND TROUBLESHOOTING Maintenance • If the USB hub has been powered on for a long period of time, please reseat the power adapter. • When cleaning the USB hub, disconnect all connections, including power. Please use a dry, soft cloth to wipe down.
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS USB Hub Case Material Industrial-grade metal chassis with metal brackets Supported Transfer Rates Transfer rate of 5Gbps/1.5/12/480 Mbps Power Protection Over current, over voltage, short circuit protection USB Specifications Fully compatible with USB 2.0/3.0/1.0 specification. Fully backwards compatible with USB 2.0/1.1 specification. LED Indicator 6x Blue LED: Status for USB peripheral or power Features... - Page 10 Thank you for your purchase. For technical support please call our toll-free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com 800-530-8998 QUICK GUIDE / DL-N5USB-PHUB...
