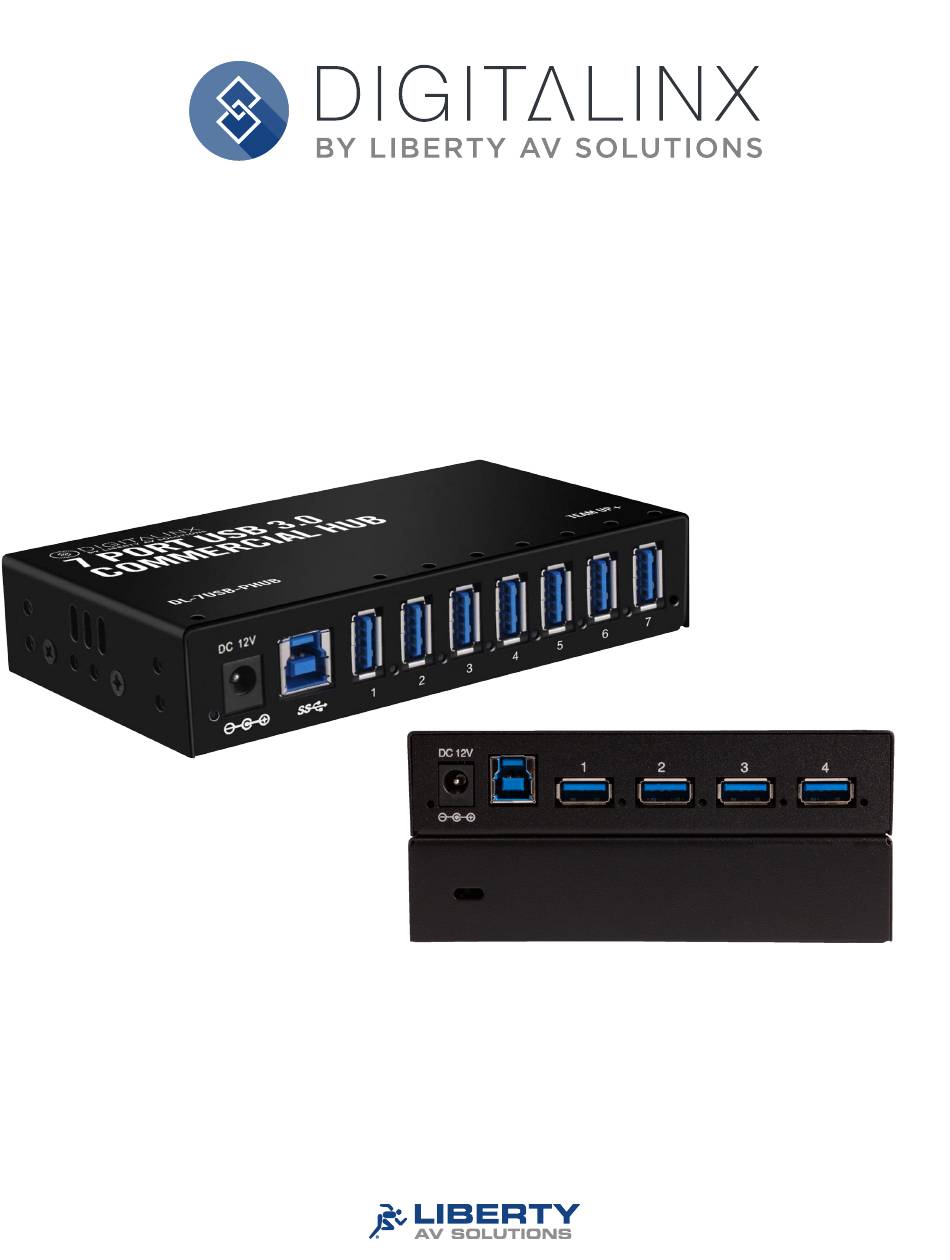

- Page 1 USB 3.0 Powered HUB Quick Install Guide DL-7USB-PHUB | DL-4USB-PHUB 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO Toll-Free: 800-530-8998 REV 01052021 Fax: 719-260-0075...

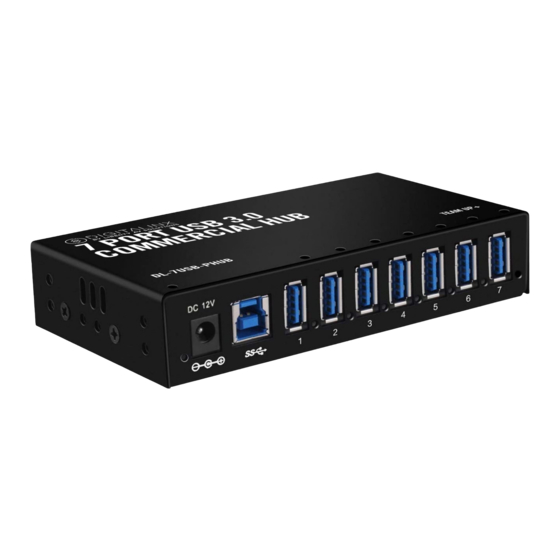

- Page 2 DL-7USB-PHUB | DL-4USB-PHUB Quick Guide Product Overview The Liberty AV DL-7USB-PHUB or DL-4USB-PHUB is a commercial grade, USB 3.0 SuperSpeed, 4 or 7 port powered USB hub designed to expand the capability of your computer all through a single cable.
- Page 3 • The Operating System on your computer will detect the Liberty AV USB powered hub. • Connect USB periphials into one of the USB ports on the Liberty AV USB powered hub. *Conenctivity Example Using a Liberty DL-7USB-PHUB • Placement: The powered hub should be placed on a sturdy flat surface;...
- Page 4 DL-7USB-PHUB | DL-4USB-PHUB Quick Guide Maintenance and Troubleshooting Maintenance • If the USB hub is not in long-term use, please reseat the power adapter. • When cleaning the USB hub, disconnect all connections, including power. Please use a dry, soft cloth to wipe.
- Page 5 Supports USB-IF Rev 1.2 and BC 1.2 USB Communication Protocol UVC 1.1 Input/Output Interface DL-7USB-PHUB USB Interface 1x USB-B 3.0 Upstream Port, 7 x USB-A 3.0 Downstream Ports DL-4USB-PHUB USB Interface 1x USB-B 3.0 Upstream Port, 4 x USB-A 3.0 Downstream...
- Page 6 Thank you for your purchase. For Technical Support please call our toll-free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com D I G I T A L I N X I S A B R A N D O F : 11675 Ridgeline Drive, Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
