  • Page 1 QUICK GUIDE 3x1 4K HDMI Auto Switcher DL-A31-H2 www.libav.com 800.530.8998...

  • Page 2: Product Overview

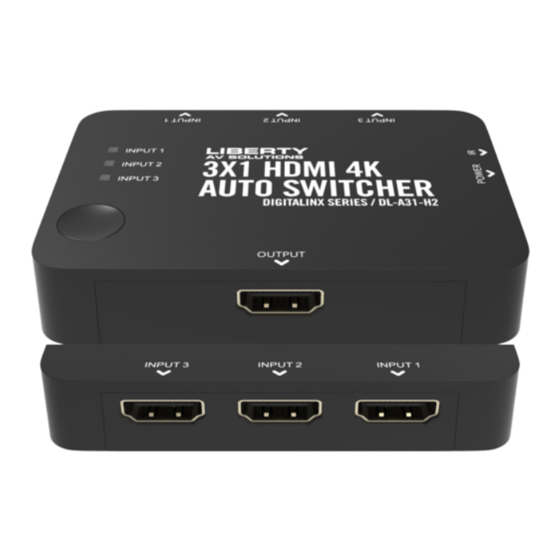

    PRODUCT OVERVIEW The DigitaLinx DL-A31-H2 is a compact, ultra-slim HDMI auto switcher offering three enhanced 4K HDMI ports with one output. Ideal for gamers, home theatre enthusiasts, or commercial deployments where simplicity is key. Connectivity includes three HDMI inputs, one HDMI output, IR port, power port and Switch button with integrated LED indicators.

  • Page 3: Remote Control

    HDTV or Monitor with an HDMI cable. source to output display. DC 5V DC 5V power input interface. : Press this button to cyclically select input source to output display. Connect IR Receiver cable to receive the remote IR IN control signal. USER MANUAL / DL-A31-H2...

  • Page 4: Application Diagram

    APPLICATION DIAGRAM USER MANUAL / DL-A31-H2...

  • Page 5: Technical Specifications

    PCM2.0/5.1/7.1CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio Certifications CE, FCC, RoHS DISCRETE IR COMMANDS Function HEX Value System Code 0x02FD Input 1 0x21 Input 2 0x25 Input 5 0x24 Loop Select 0x26 USER MANUAL / DL-A31-H2...
