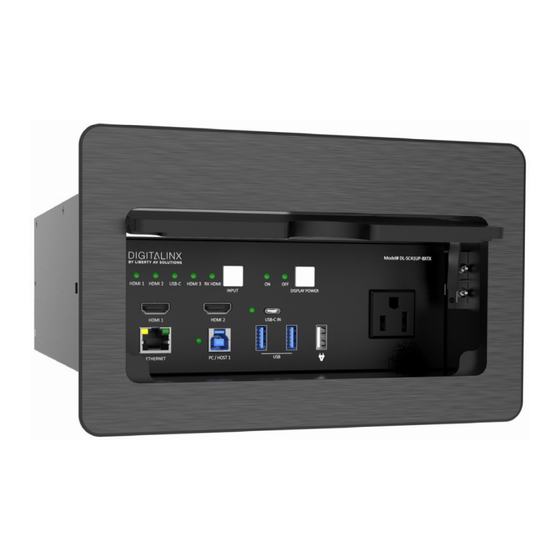

    DL-SC41UP-BXTX Owners Manual Product Overview The DigitaLinx DL-SC41UP-BXTX is a 4x1 multi format A/V and USB conference auto switcher and table pocket that supports video resolutions up to 4K@60Hz 4:4:4 8bit deep color and has a built in 4 port USB 3.x hub for integration of USB devices such as USB cameras and microphones that can switched between three USB (PC) hosts.
  • Page 5: Top And Bottom Panels

    DL-SC41UP-BXTX Installation Guide Top and Bottom Panels Top Panel 1. INPUT LED’S AND SELECTOR - A/V input source selector and corresponding LEDs • INPUT - Input selection button, hold down this button for 3 seconds to enter and exit automatic switching mode 2.
  • Page 6: Bottom Panel

    DL-SC41UP-BXTX Owners Manual Bottom Panel 1. AC Power Outlet 2. HDMI 2 - HDMI input 2 3. HDMI OUT - HDMI output 4. HDBT OUT - HDBaseT output 5. TCP/IP CONTROL - RJ45 connector for Ethernet control and to access the internal web GUI 6.
  • Page 7: Installation Instructions

    DL-SC41UP-BXTX Installation Guide Installation Instructions Install Table Pocket A table cut out template has been provided in the package contents of the DL-SC41UP-BXTX that is printed to the correct scale of the device dimensions. Before cutting into the table top, confirm that the product you are installing is the DL-SC41UP-BXTX as the provided template is only for this product.
  • Page 8: Connect Display

    DL-SC41UP-BXTX Installation Guide Connect Display HDMI Output Connect display device to the HDMI output using a High Speed HDMI cable that is less than or equal to 5 meters in length for 4k60 signals and 8 meters for 1080p signals. HDBaseT Output (Optional) Connect a solid core CAT6 F/UTP rated category cable to the HDBaseT output and the...
  • Page 9: Connecting Control

    DL-SC41UP-BXTX Installation Guide Connecting Control RS232 Port Wiring Connect a control system or display to the DL-SC41UP-BXTX via RS232 for switcher control or for display control. TX RX G DL-SC41UP-BXTX RS232 RS232 Wiring Port Connect the system controller or display RX signal to TX on the DL-SC41UP-BXTX, then connect the controllers TX signal to RX on the DL-SC41UP-BXTX.
  • Page 10: Connect Ethernet (Web Browser) Control (Optional)

    DL-SC41UP-BXTX Installation Guide Connect Ethernet (Web Browser) Control (Optional) The DL-SC41UP-BXTX can be controlled via Ethernet through a web browser interface. The TCP/IP port requires a standard straight-through Category 5 or greater cable with the TIA/EIA-568B crimp pattern for optimal operation.
  • Page 11: Hdbaset Cabling Requirements

    DL-SC41UP-BXTX Installation Guide HDBaseT Cabling Requirements HDBaseT Cabling To ensure proper performance of the , it is recommended that you use solid DL-SC41UP-BXTX core, shielded Category 6 F/UTP cabling at a minimum. Category 5e F/UTP may perform well but may not support power over HDBaseT reliably over longer distances. When using shielded category cabling ALWAYS...
  • Page 12: A/V Diagrams

    DL-SC41UP-BXTX Installation Guide A/V Diagrams Standalone...
  • Page 13: With Optional Hdbaset Receiver

    DL-SC41UP-BXTX Installation Guide With Optional HDBaseT Receiver...
  • Page 14: Web Gui Control / System Settings

    DL-SC41UP-BXTX Installation Guide Web GUI Control / System Settings Switcher Control Connecting to Web GUI Control Network a PC computer and the DL-SC41UP-BXTX then open a web browser and type in IP address of the DL- SC41UP-BXTX . The default IP address is 192.168.0.178.
  • Page 15: A/V Switching

    DL-SC41UP-BXTX Installation Guide A/V Switching The CONTROL menu allows you to route A/V signals from the video inputs to the HDMI output of the switcher and enable / disable auto switching mode. To enable / disable auto switching mode, check the ON/OFF button in the Auto Switching option. When auto switching is disabled, the switcher must be switched manually by either using the front panel buttons, the embedded web GUI or with the API.
  • Page 16: Rs232 Display Control Settings

    DL-SC41UP-BXTX Installation Guide RS232 Display Control Settings The Display Setting menu allows you to configure RS232 serial strings to be transmitted to a connected display to the DL-SC41UP-BXTX RS232 port. An RS232 / serial connection must be made from either device to a display for this option to work.
  • Page 17: Auto Display On/Off Settings

    DL-SC41UP-BXTX Installation Guide Auto Display ON/OFF Settings The DISPLAY SETTING > DISPLAY menu allows you to enable / disable automatic display ON/OFF control. When display control is ON, the DL-SC41UP-BXTX can turn the display or projector ON using the stored RS232 commands previously set up in the DISPLAY SETTING >...
  • Page 18: Usb Host Switching Settings

    DL-SC41UP-BXTX Installation Guide USB Host Switching Settings In the DL-SC41UP-BXTX there are three USB hosts that can be switched either automatically, manually or they can be set to follow the video input automatically when the AV input is selected. By default, PC / HOST 1 USB host follows HDMI 1, PC / HOST 2 host follows HDMI 2 and when connecting USB C device it also switches to this input as a host.
  • Page 19: Edid Management

    DL-SC41UP-BXTX Installation Guide Edid Management EDID can be set for each A/V input using the EDID menu. To adjust an inputs EDID option, click on the desired input channel then click on the desired resolution, then click CONFIRM. When uploading a USER DEFINED EDID option, click the open field to locate the .bin EDID file on your local computer, then click APPLY.
  • Page 20: Relay Configuration

    DL-SC41UP-BXTX Installation Guide Relay Configuration Latching or momentary relay modes can be set using the CONTROL > DISPLAY menu when using the optional DL-SCU-RX HDBaseT receiver is used as the DL-SCU-RX features 2 relay ports. To adjust RELAY 1 or RELAY 2, navigate to the menu highlighted below. Choose either Manual (latching) or Auto (momentary) for each to activate the relay.
  • Page 21: Renaming Inputs

    DL-SC41UP-BXTX Installation Guide Renaming Inputs The Tags menu allows you to set user defined names for inputs that will be displayed on the VIDEO tab for easy system control Navigate to the Tags menu, enter in the desired names for the INPUTS, then click CONFIRM.
  • Page 22: Network Settings

    DL-SC41UP-BXTX Installation Guide Network Settings The Network menu allows you to set the network settings for the device. Navigate to the Network menu, select either DHCP or STATIC IP as the desired IP mode. If choosing DHCP, make sure the DL-SC41UP-BXTX is connected to a router / network switch with DHCP server support. When choosing the STATIC IP option, manually enter in the desired IP ADDRESS, SUBNET MASK and GATEWAY information, then click CONFIRM for changes to take place.
  • Page 23: Security Settings

    DL-SC41UP-BXTX Installation Guide Security Settings The PASSWORD menu allows you to set the admin password to a user defined password Navigate to the PASSWORD menu, enter in a user defined password in the password field, then click CONFIRM.
  • Page 24: System Settings

    DL-SC41UP-BXTX Installation Guide System Settings The CONTROL menu allows you to change the DL-SC41UP-BXTX switcher to factory default the unit or turn the POWER OFF to the switcher...
  • Page 25: Rs232 And Tcp/Ip Control

    DL-SC41UP-BXTX Installation Guide RS232 and TCP/IP Control RS232 Settings: 9600 baud, 8 Data bits, 1 Stop bit, Parity = None Telnet Settings: User defined IP address (default IP address:192.168.0.178), port 4001 The commands are case sensitive and must be terminated with a carriage return <CR> and line feed <LF> A/V Routing Description Command...
  • Page 26: Usb Host Routing

    DL-SC41UP-BXTX Installation Guide USB Host Routing Description Command Examples #SET_USB_SWITCH_MODE {m} Command: Set USB switching mode to manual #SET_USB_SWITCH_MODE 0 switching or to auto switching or to {m} = 0 (AUTO) follow video inputs 1 (MANUAL) Response: 2 (FOLLOW VIDEO) @USB_SWITCH_MODE 0 NOTE: When using the manual switching commands in this API the...
  • Page 27: Cec / Rs232 Display Control

    DL-SC41UP-BXTX Installation Guide CEC / RS232 Display Control Description Command Examples #SET_DISPLAY {O} {S} Command: Send TV ON/OFF display commands #SET_DISPLAY HDMI ON using CEC (HDMI) or RS232 {O} = HDMI, HDBT {S} = ON, OFF Response: NOTE: The RS232 commands can be @SET_HDMI_DISPLAY ON configured and stored in the web GUI, see page 16...
  • Page 28: System Commands

    DL-SC41UP-BXTX Installation Guide System Commands Description Command Examples #SET_POWER {M} Command: Set switcher in standby mode #SET_POWER 0 {M} = 0 (STANDBY) 1 (ON) Response: @POWER 0 #GET_POWER Command: Query standby status #GET_RELAY_AUTO_TIME Response: @POWER 0 #SET_RS232_BAUD {B} Command: Set baud rate of switcher #SET_RS232_BAUD 4 {B} = 0 (115200) 1 (57600)
  • Page 29: Technical Specifications

    DL-SC41UP-BXTX Installation Guide Technical Specifications Video Video Inputs (3) HDMI, (1) USB-C Video Input Connector (3) HDMI type A, (1) USB Type C Input Video Signal HDMI for HDMI input Display Port Alternate Mode for USB-C Video Output (1) HDMI, (1) HDBaseT Video Output Connector (1) HDMI type A, (1) RJ45 Input Resolution Support...
  • Page 30: Device Dimensions

    DL-SC41UP-BXTX Installation Guide Device Dimensions...
