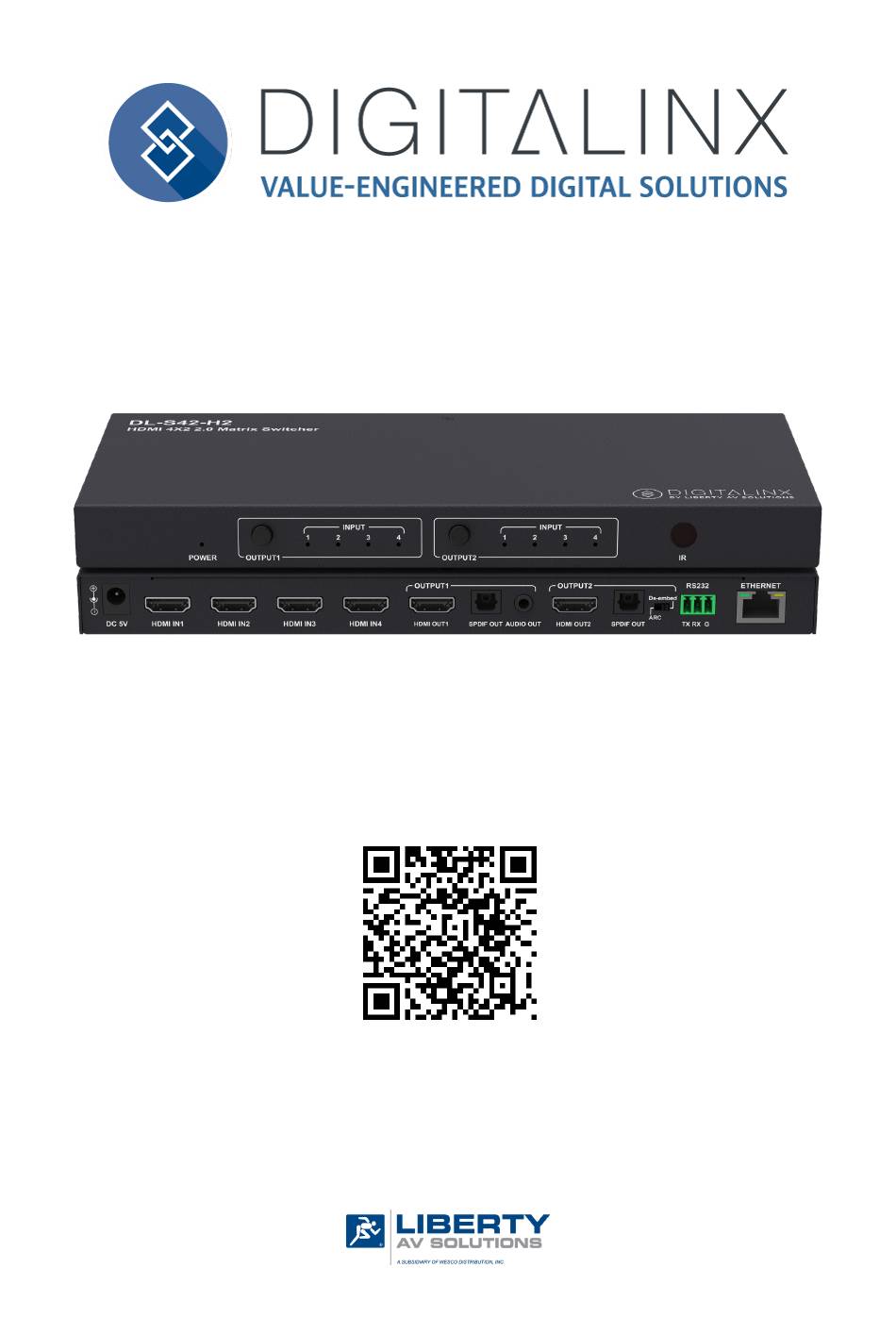

DL-S42-H2 Quick Install Guide
This guide is for quick installation only.
For complete owners manual go to www.libav.com or use a QR reader to access the
manual via QR code below.
Scan QR Code with your Smart-phone or Tablet
Rev 191206
11675 Ridgeline Drive
Phone: 719-260-0061
Colorado Springs, CO
Toll-Free: 800-530-8998
80921
Fax: 719-260-0075
Advertisement
Table of Contents
Related Manuals for LIBERTY AV SOLUTIONS DIGITALINX DL-S42-H2
Summary of Contents for LIBERTY AV SOLUTIONS DIGITALINX DL-S42-H2
- Page 1 DL-S42-H2 Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR reader to access the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Rev 191206 11675 Ridgeline Drive Phone: 719-260-0061 Colorado Springs, CO...
-
Page 3: Product Overview
DL-S42-H2 Quick Guide Product Overview The DigitaLinx DL-S42-H2 is a simple 4x2 HDMI 2.0 matrix switcher that features four HDMI inputs and two HDMI outputs with HDCP 2.2 support and capable of handling resolutions up 4K@60Hz 4:4:4 / 8 bit color with static and dynamic HDR output support. The DL-S42-H2 supports digital optical audio de-embedding from both outputs and analog audio de-embedding from output 1. -
Page 4: Power Led
DL-S42-H2 Quick Guide Front / Back Panel View 10 11 13 14 15 1. POWER LED • When ON; Device is powered on • When OFF; Device is powered off 2. OUTPUT1 - Output 1 input selection button 3. INPUT LEDs •... - Page 5 DL-S42-H2 Quick Guide Connectivity Instructions 1. Verify all components included with the switcher are present before installation. 2. If the switcher is going to be permanently mounted in a rack, attach the mounting brackets of the DL-S42-H2 matrix switcher. 3. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions.
- Page 6 DL-S42-H2 Quick Guide Cabling Wiring Requirements Ethernet Control The DL-S42-H2 may be controlled via Ethernet using web browser for web server control or by using telnet commands using port 23. See owners manual online at www.libav.com for API. The TCP/IP port requires a standard straight-through Category 5 or greater cable with the TIA/EIA-568B crimp TIA/EIA-568B pattern for optimal operation.
-
Page 7: Technical Specifications
DL-S42-H2 Quick Guide Technical Specifications Input/Output Connections HDMI Inputs Four (4) HDMI Type A Receptacle HDMI Outputs Two (2) HDMI Type A Receptacle TCP/IP One (1) 8P8C Port (Shielded RJ45 Female) RS232 One (1) 3 pin Phoenix connector Audio - One (1) Analog L/R audio outputs, 3.5mm connectors - Two (2) Digital audio outputs, Toslink connectors Supported Audio, Video, and Embedded Control Video Resolutions... - Page 8 Thank you for your purchase. For Technical Support please call our toll free number at 800-530-8998 or email us at supportlibav@libav.com www.libav.com Digitalinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
