  • Page 1 AS-2H-WP Installation and Operation Guide HDCP PoH In HDBT Out Reset HDMI 1 HDMI 2 AS-2H-WP HDMI Auto-Sw tch n W llpl te Auto HD 2 RS232 HD 1 F rmw re Rev 160111 11675 Ridgeline Dr. Toll-Free: 800-530-8998 Colorado Springs, CO 80921 Fax: 719-260-0075 supportlibav@libav.com...
  • Page 3: Important Safety Instructions

    AS-2H-WP Installation Guide Important Safety Instructions 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference. 3.
  • Page 4 AS-2H-WP Installation Guide 26. When the apparatus is not in use or during its relocation, take care of the power cord and plugs; e.g. tie up the power cord with cable tie or similar. The tie must be free from sharp edges and the like that might cause abrasion of the power cord.
  • Page 5: Table Of Contents

    AS-2H-WP Installation Guide Table of Contents Important Safety Instructions ��������������������������������������������������������������������������������������������������������������������������� Product Overview ��������������������������������������������������������������������������������������������������������������������������������������������� Package Contents ��������������������������������������������������������������������������������������������������������������������������������������������� Front and Rear Panels ��������������������������������������������������������������������������������������������������������������������������������������� Front Panel ���������������������������������������������������������������������������������������������������������������������������������������������������������� Rear Panel ����������������������������������������������������������������������������������������������������������������������������������������������������������� Installation Instructions ���������������������������������������������������������������������������������������������������������������������������������� Basic Installation ����������������������������������������������������������������������������������������������������������������������������������������������� HDBaseT Cabling Requirements ������������������������������������������������������������������������������������������������������������������������ Contact Closure Inputs �������������������������������������������������������������������������������������������������������������������������������������� Default Mode - Auto-Switching ........................
  • Page 6 AS-2H-WP Installation Guide RS232 Control ������������������������������������������������������������������������������������������������������������������������������������������������� Switching Commands ���������������������������������������������������������������������������������������������������������������������������������������� Power Management ����������������������������������������������������������������������������������������������������������������������������������������� HDCP Compliance ��������������������������������������������������������������������������������������������������������������������������������������������� Device Baud Rate ���������������������������������������������������������������������������������������������������������������������������������������������� Device Information �������������������������������������������������������������������������������������������������������������������������������������������� Factory Reset����������������������������������������������������������������������������������������������������������������������������������������������������� EDID Configuration ������������������������������������������������������������������������������������������������������������������������������������������� Display Control Settings ������������������������������������������������������������������������������������������������������������������������������������ Display Control Queries ������������������������������������������������������������������������������������������������������������������������������������� Display Control Hex Commands ������������������������������������������������������������������������������������������������������������������������ Troubleshooting ���������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 7: Product Overview

    AS-2H-WP Installation Guide Product Overview The Intelix AS-2H-WP is a two-gang, Decora-style wallplate designed to be the primary PC interface for classrooms, boardrooms, and conference centers. It features two HDMI inputs. The AS-2H-WP utilizes HDBaseT technology to extend the digital output up to 60 meters away using solid core shielded Category 5e or greater cable.
  • Page 8: Front And Rear Panels

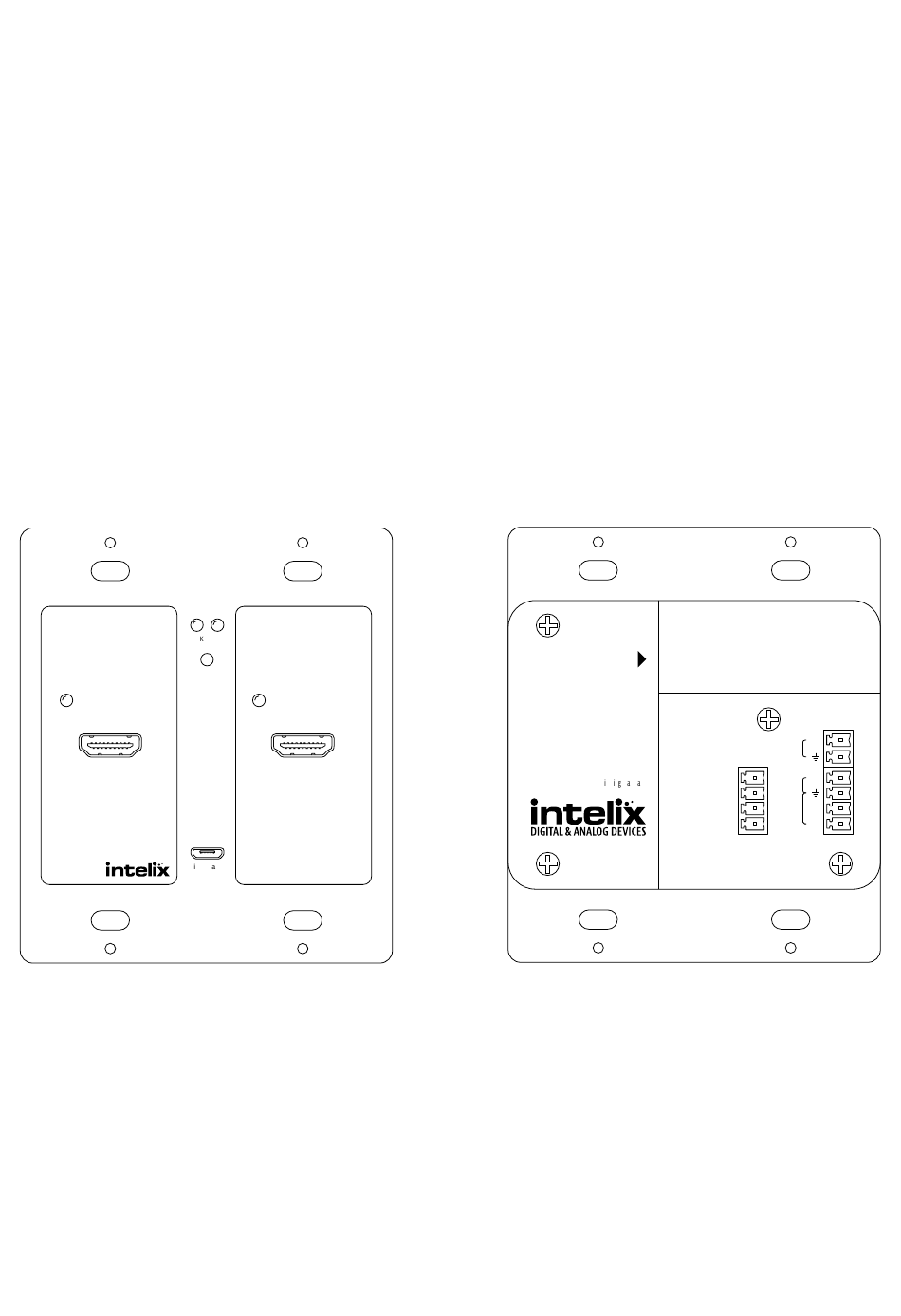

    AS-2H-WP Installation Guide Front and Rear Panels Front Panel HDCP Reset HDMI 1 HDMI 2 F rmw re HDMI input 1 and input status LED Status LEDs and Reset button HDMI input 2 and input status LED Micro USB port for firmware updating...
  • Page 9: Rear Panel

    AS-2H-WP Installation Guide Rear Panel PoH In HDBT Out AS-2H-WP HDMI Auto-Sw tch n W llpl te Auto HD 2 RS232 HD 1 Contact closures 12V DC power input HDBaseT output with PoH input support RS232 and 12V DC output...
  • Page 10: Installation Instructions

    AS-2H-WP Installation Guide Installation Instructions Basic Installation Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. Connect shielded Category 5E or greater twisted pair cable with the TIA/EIA-568B crimp pattern between the transmitter (AS-2H-WP) and the HDBaseT receiver. If the HDBaseT receiver cannot provide power to the AS-2H-WP, connect the included power supply to the 24V DC power input of the device.
  • Page 11: Contact Closure Inputs

    AS-2H-WP Installation Guide Contact Closure Inputs The AS-2H-WP includes dry contact closure inputs to allow different types of manual switching. These contact closure inputs are intended to be connected directly to relays or switches. To activate, simply short the associated terminal to the “GND”...
  • Page 12: 12V Dc Output Power

    AS-2H-WP Installation Guide 12V DC Output Power The AS-2H-WP can provide power to an external 12V DC device that draws 500mA or less of total current. This voltage will be provided if the AS-2H-WP is powered directly or via PoH. RS232 Connections The AS-2H-WP can be controlled via RS232 by connecting to a computer’s serial port or third party control system via the connected HDBaseT receiver.
  • Page 13: General Operation

    AS-2H-WP Installation Guide General Operation Automatic Switching By placing a jumper between the “Auto” and “Gnd” terminals on the back of the AS-2H-WP, the unit will switch inputs by sensing an active video signal. The AS-2H-WP will switch automatically to the “last in” connected input. For example, if an HDMI signal is currently displayed on input 1, and then connect another HDMI source, the unit will switch to HDMI input 2.
  • Page 14: Reset Button

    AS-2H-WP Installation Guide Reset Button The reset button located under the Status Indicators will reboot the AS-2H-WP. This may need to be used if in EDID pass-through mode, and the AS-2H-WP was powered on before the display during installation, which may prevent the EDID from being read correctly.
  • Page 15: Low Power Mode

    AS-2H-WP Installation Guide Low Power Mode The AS-2H-WP has a low-power or standby mode that it will automatically return to, based upon input signal and switching activity. No Signal If the AS-2H-WP detects no video on either HDMI input for a set amount of time, the AS-2H-WP will go into low-power mode.
  • Page 16: Hardware Reset

    AS-2H-WP Installation Guide Hardware Reset A hardware reset will reset the AS-2H-WP to the factory default setting. This procedure may be necessary if the device RS232 settings have been changed. Short the HD 1 and HD 2 contact closures to Ground for 10 seconds. Without removing the shorted HD 1 and HD 2 contact closures, short the Auto contact closure to Ground for 3 seconds.
  • Page 17 AS-2H-WP Installation Guide RS232 Control Default RS232 Settings: 9600 baud, 8 Data bits, 1 Stop bit, Parity = None <CR> = Carriage return (Hex 0D) <LF> = Line Feed (Hex 0A) Switching Commands Description Command Response SET HDMI1<CR><LF> SET HDMI1!<CR><LF> Select HDMI input 1 SET HDMI2<CR><LF>...
  • Page 18 AS-2H-WP Installation Guide HDCP Compliance Description Command Response HDCP ON<CR><LF> HDCP ON!<CR><LF> HDCP Compliance ON HDCP OFF<CR><LF> HDCP OFF!<CR><LF> HDCP Compliance OFF GET HDCP<CR><LF> Get HDCP Compliance status HDCP ON! <CR><LF> OR HDCP OFF!<CR><LF> Device Baud Rate The default baud rate for the AS-2H is 9600. This can be changed to accommodate various installation needs: 2400, 4800, 9600, 19200, 38400, 57600, 115200.
  • Page 19 AS-2H-WP Installation Guide EDID Configuration The EDID settings listed below will be passed to both HDMI inputs. Description Command Response EDID UHD<CR><LF> EDID UHD!<CR><LF> UHD/30 EDID FHD<CR><LF> EDID FHD!<CR><LF> 1080p EDID HD<CR><LF> EDID HD!<CR><LF> 720p EDID WUXGA<CR><LF> EDID WUXGA!<CR><LF> 1920x1200 EDID WXGA2<CR><LF>...
  • Page 20 AS-2H-WP Installation Guide Display Control Settings Description Command Response DFG1 DFG1!<CR><LF> Turn Display Control ON Display Control On<CR><LF> DFG0 DFG0!<CR><LF> Turn Display Control OFF Display Control Off<CR><LF> DONxx DON!<CR><LF> Store the ON command for Display Example: pwron<CR> Control (xx = up to 25 characters) DONpwron <CR><LF>...
  • Page 21 AS-2H-WP Installation Guide Display Control Queries The query responses will be identical to the Display Control commands entered into the device. Description Command Response DFG? Display Control state? DFG1<CR> OR DFG0<CR> DON? DONpwron<CR> Display On command? DOF? DOFpwroff<CR> Display Off command? DIS? DIShdmi1<CR>...
  • Page 22 AS-2H-WP Installation Guide Troubleshooting Device does not power on Apply an active video signal; the unit may be in standby mode. » Transmit the WAKE command via RS232. » If using a receiver with PoH, verify that the receiver is powered. »...
  • Page 23 AS-2H-WP Installation Guide Technical Specifications Input/Output Connections HDMI Inputs Two (2) HDMI Type A Receptacle HDBaseT Port One (1) 8P8C port (Shielded RJ45) Power One (1) 2-pin Removable Terminal Block Connector RS232 Port with 12V DC Output One (1) 4-pin Removable Terminal Block Connector Contact Closures One (1) 4-pin Removable Terminal Block Connector Firmware Port...
  • Page 24 Intelix is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075 Toll-Free: 800-530-8998...
