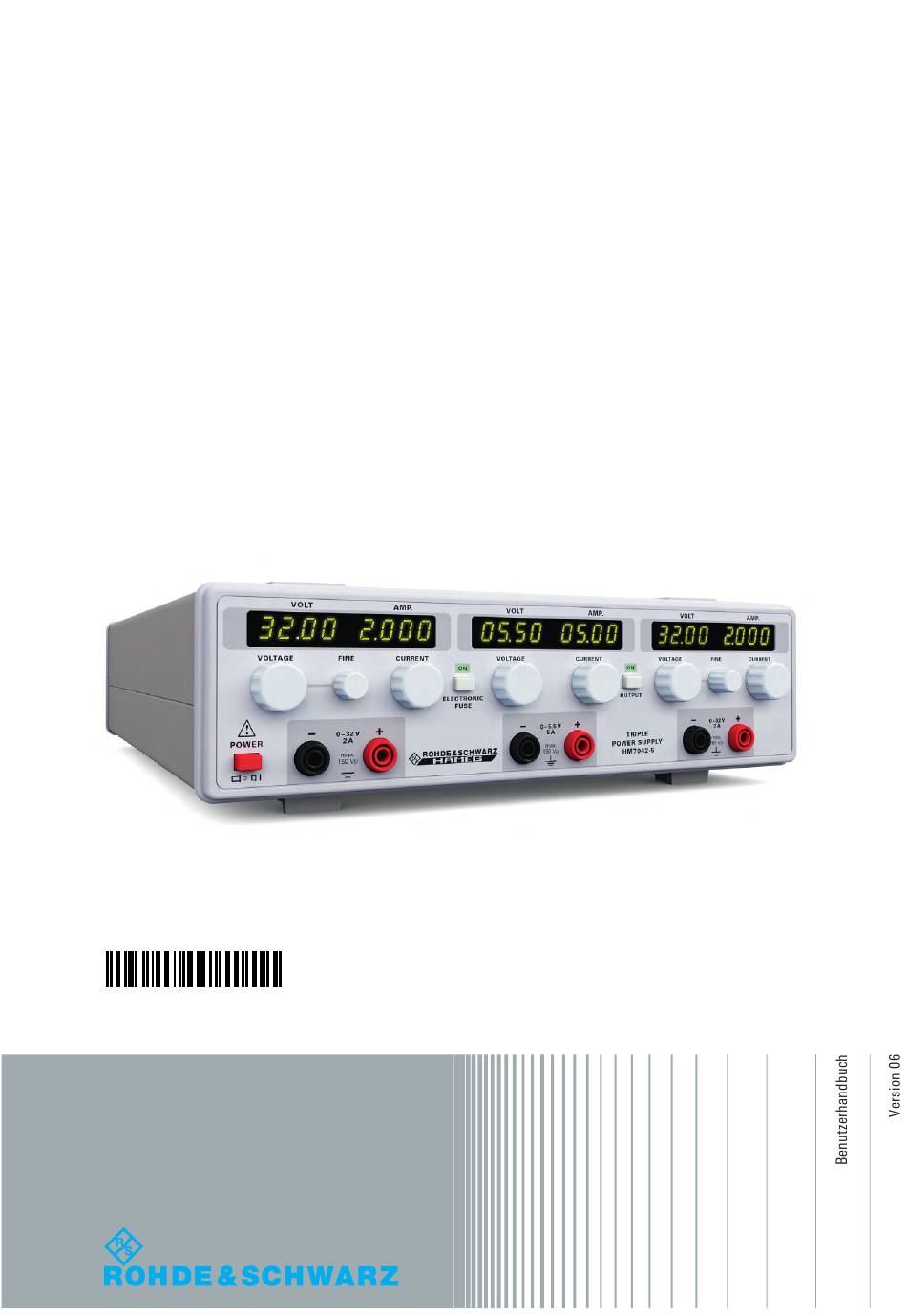

  • Page 1 www.allice.de Allice Messtechnik GmbH HM7042-5 Triple Power Supply Benutzerhandbuch *5800447002* 5800447002...
  • Page 2 www.allice.de Allice Messtechnik GmbH...
  • Page 3: Allgemeine Hinweise Zur Ce-Kennzeichnung

    www.allice.de Allice Messtechnik GmbH A l l g e m e i n e H i n w e i s e z u r C E - K e n n z e i c h n u n g Allgemeine Hin- Allgemeine Hinweise zur CE-Kennzeichnung HAMEG Messgeräte erfüllen die Bestimmungen...
  • Page 4: Table Of Contents

    www.allice.de Allice Messtechnik GmbH I n h a l t s v e r z e i c h n i s Inhalt Allgemeine Hinweise zur CE-Kennzeichnung Technische Daten Wichtige Hinweise Symbole Auspacken Aufstellen des Gerätes Transport / Lagerung Sicherheitshinweise Bestimmungsgemäßer Betrieb Gewährleistung und Reparatur Wartung...
  • Page 5: Technische Daten

    www.allice.de Allice Messtechnik GmbH H M 7 0 4 2 - 5 HM7042-5 Dreifach-Netzgerät Technische Daten Key facts ❙ 2 x 0…32 V/0…2 A 1 x 0…5,5 V/0…5 A ❙ Leistungsfähiges und preiswertes Netzgerät für Labor anwendungen ❙ Erdfreie, überlastungs- und kurzschlussfeste Ausgänge ❙...
  • Page 6 www.allice.de Allice Messtechnik GmbH Te c h n i s c h e D a t e n Technische Daten Dreifach-Netzgerät Grenzwerte Gegenspannung: HM7042-5 CH 1 + CH 3 33 V Alle Angaben bei 23 °C nach einer Aufwärmzeit von 30 Minuten. CH 2 Ausgänge Falsch gepolte Spannung:...
  • Page 7: Wichtige Hinweise

    www.allice.de Allice Messtechnik GmbH W i c h t i g e H i n w e i s e 1 Wichtige Transport / Lagerung Bewahren Sie bitte den Originalkarton für einen eventuell späteren Transport auf. Transportschäden aufgrund einer Hinweise mangelhaften Verpackung sind von der Gewährleistung ausgeschlossen.
  • Page 8: Bestimmungsgemäßer Betrieb

    www.allice.de Allice Messtechnik GmbH W i c h t i g e H i n w e i s e Bestimmungsgemäßer Betrieb Wartung Die Geräte sind zum Gebrauch in sauberen, trockenen Das Gerät benötigt bei einer ordnungsgemäßen Verwendung Räumen bestimmt. Sie dürfen nicht bei besonders großem keine besondere Wartung.
  • Page 9 www.allice.de Allice Messtechnik GmbH W i c h t i g e H i n w e i s e zur Buchse zeigt. Der Sicherungshalter wird gegen den Fe- derdruck eingeschoben, bis beide Kunststoffarretierungen einrasten. Ein Reparieren der defekten Sicherung oder das Verwenden anderer Hilfsmittel zum Überbrücken der Siche- rung ist gefährlich und unzulässig.
  • Page 10: Bezeichnung Der Bedienelemente

    www.allice.de Allice Messtechnik GmbH B e z e i c h n u n g d e r B e d i e n e l e m e n t e 2 Bezeichnung der Bedienelemente VOLTAGE - Einstellregler Spannung 0...5,5 V Gerätefrontseite CURRENT - Einstellregler für I der Strom-...
  • Page 11: Netzgeräte-Grundlagen

    www.allice.de Allice Messtechnik GmbH N e t z g e r ä t e - G r u n d l a g e n 3 Netzgeräte- Netz- Schalt- Gleich- Gleichrichter transistor Transformator richter Filter Ausgang Grundlagen Gleich- span- Wechsel- nung spannung Abschirmband...
  • Page 12 www.allice.de Allice Messtechnik GmbH N e t z g e r ä t e - G r u n d l a g e n Serienbetrieb die Ausgangsströme jedes Ausganges in etwa gleich groß sind. Dies ist empfehlenswert, aber kein Muss. Der maximal mögliche Gesamtstrom ist die Summe der Einzelströme der parallel geschalteten Quellen.
  • Page 13: Elektronische Sicherung (Electronic Fuse)

    www.allice.de Allice Messtechnik GmbH G e r ä t e k o n z e p t 4 Gerätekonzept Elektronische Sicherung (ELECTRONIC FUSE) Um einen angeschlossenen empfindlichen Verbraucher im Fehlerfall noch besser vor Schaden zu schützen, besitzt das HM 7042-5 eine elektronische Sicherung. Im Fehlerfall Das Gerätekonzept vereint den hohen Wirkungsgrad ei- schaltet diese, innerhalb kürzester Zeit nach Erreichen von nes Schaltreglers mit der Störspannungsfreiheit linearer...
  • Page 14: Einführung In Die Bedienung

    www.allice.de Allice Messtechnik GmbH B e d i e n e l e m e n t e 5 Einführung in 6 Bedienelemente die Bedienung und Anzeigen Kanal I + III (0-32V / 2A) Inbetriebnahme Ausgangspannung regelbar von 0-32 V. Sicherheitsbuchsen Beachten Sie bitte besonders bei der ersten Inbetriebnahme für 4mm-Sicherheitsstecker.
  • Page 15: Sonstige Bedienelemente

    www.allice.de Allice Messtechnik GmbH B e d i e n e l e m e n t e ohne angeschlossenen Verbraucher. Wir empfehlen die Strombegrenzung Ausgangsspannung erst nach korrekter Einstellung des Nach Einschalten des Netzgerätes befindet sich dieses Ausgangswertes an den Verbraucher anzuschalten. immer im Modus Strombegrenzung.
  • Page 16 www.allice.de Allice Messtechnik GmbH Änderungen vorbehalten...
  • Page 17 www.allice.de Allice Messtechnik GmbH HM7042-5 Triple Power Supply User Manual *5800447002* 5800447002...
  • Page 18 www.allice.de Allice Messtechnik GmbH...
  • Page 19 www.allice.de Allice Messtechnik GmbH G e n e r a l r e m a r k s r e g a r d i n g t h e C E m a r k i n g General remarks regarding the CE marking HAMEG measuring instruments comply with the EMI norms.
  • Page 20 www.allice.de Allice Messtechnik GmbH Ta b l e o f c o n t e n t Content General remarks regarding the CE marking Technical Data Important hints Symbols Unpacking Positioning Transport / Storage Safety instructions Proper operating conditions Warranty and Repair Maintenance Mains voltage and Changing the line fuse Operating Controls...
  • Page 21: Technical Data

    www.allice.de Allice Messtechnik GmbH H M 7 0 4 2 - 5 HM7042-5 Triple Power Supply Technical Data Key facts ❙ 2 x 0…32 V/0…2 A 1 x 0…5.5 V/0…5 A ❙ High-performance and inexpensive laboratory power supply ❙ Floating, overload and short-circuit proof outputs ❙...
  • Page 22 www.allice.de Allice Messtechnik GmbH Te c h n i c a l D a t a Technical Data Triple Power Supply Miscellaneous Safety class: Safety class I (EN61010-1) HM7042-5 Mains supply: 115 V/230 V ±10 %; 50…60 Hz, CAT II All data valid at 23 °C after 30 minutes warm-up.
  • Page 23: Important Hints

    www.allice.de Allice Messtechnik GmbH I m p o r t a n t h i n t s 1 Important hints Dry indoors storage is required. After exposure to extreme temperatures 2 h should held off on turning the instrument Safety instructions The instrument conforms to VDE 0411/1 safety standards applicable to measuring instruments and left the factory...
  • Page 24: Warranty And Repair

    www.allice.de Allice Messtechnik GmbH I m p o r t a n t h i n t s connectors with a safety ground connection or via isolation Mains voltage and Changing the line fuse transformers of class 2. The instrument may be used in any position, however, sufficient ventilation must be assured as convection cooling is used.
  • Page 25: Operating Controls

    www.allice.de Allice Messtechnik GmbH O p e r a t i n g c o n t r o l s 2 Operating Cont- rols Front panel CURRENT - Adjustment of current limit I VOLT - Voltage display both current limit and electronic fuse threshold AMP - Current display 0 –...
  • Page 26: Basics Of Power Supplies

    www.allice.de Allice Messtechnik GmbH B a s i c s o f p o w e r s u p p l i e s Secondary SMPS 3 Basics of Power These still require a 50 or 60 Hz mains transformer, the secondary output voltage is rectified, smoothed and then chopped.
  • Page 27: Current Limit

    www.allice.de Allice Messtechnik GmbH B a s i c s o f p o w e r s u p p l i e s In this mode the output voltages add, the output current is the same for all supplies. As the sum of all voltages may well surpass the 42 V limit touching const of live parts may be fatal! Only qualified and well...
  • Page 28: Concept Of The Hm7042-5

    www.allice.de Allice Messtechnik GmbH C o n c e p t o f t h e H M 7 0 4 2 - 5 4 Concept of the 5 Introduction to HM7042-5 the operation First time operation In this instrument the advantages of a SMPS, especially high efficiency, and those of a linear regulator, e.g.
  • Page 29: Operating Controls And Displays

    www.allice.de Allice Messtechnik GmbH O p e r a t i n g c o n t r o l s a n d d i s p l a y s 6 Operating controls will be turned off immediately if the function “electronic fuse“...
  • Page 30: Current Limiting

    www.allice.de Allice Messtechnik GmbH O p e r a t i n g c o n t r o l s a n d d i s p l a y s ELECTRONIC FUSE This pushbutton will activate the electronic fuse mode, indicated by LED [ON].
  • Page 31 www.allice.de Allice Messtechnik GmbH © 2021 Rohde & Schwarz GmbH & Co. KG Mühldorfstr. 15, 81671 München, Germany Phone: +49 89 41 29 - 0 Fax: +49 89 41 29 12 164 E-mail: info@rohde-schwarz.com Internet: www.rohde-schwarz.com Customer Support: www.customersupport.rohde-schwarz.com Service: www.service.rohde-schwarz.com Subject to change –...
