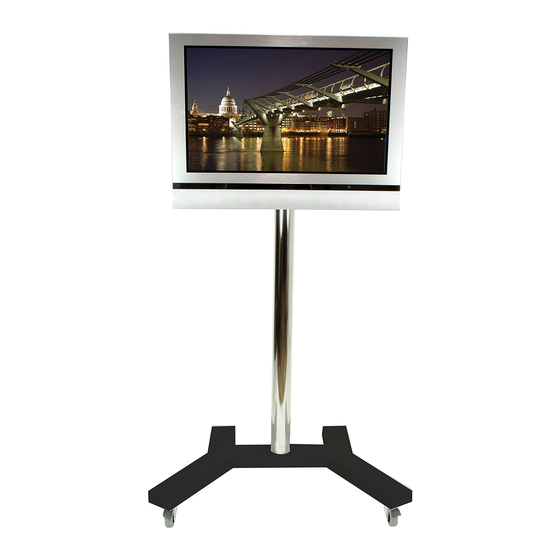

BT7504
MEDIUM FLAT SCREEN TROLLEY / STAND
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Trolley / Stand
PLEASE KEEP THIS FOR FUTURE REFERENCE
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Safety Instructions...................................................................................................................................6
Installation Instructions.......................................................................................................................7
Optional Accessories.............................................................................................................................17
Product Dimensions..........................................................................................................................18
B-Tech Contact Details.....................................................................................................................20
INSTALLATION TOOLS REQUIRED
Crosshead
screwdriver
B-TECH AUDIO VIDEO MOUNTS
FEATURES
●
Designed for flat screens
up to 32" (81cm) / 24kg (53lbs)
●
Fits VESA mounting patterns:
75 x 75mm, 100 x 100mm,
200 x 100mm and 200 x 200mm
●
Non-marking 50mm braked castors included
●
Supplied with optional levelling feet
●
Ø60mm x 1100mm pole
●
Trolley dimensions (including wheels):
1210mm (47.6") x 455mm (17.9") x 735mm (28.9")
CONTENTS
www.btechavmounts.com
Hex Keys
(Supplied)
Advertisement
Related Manuals for B-Tech BT7504
Summary of Contents for B-Tech BT7504
-
Page 1: Table Of Contents
Trolley dimensions (including wheels): 1210mm (47.6") x 455mm (17.9") x 735mm (28.9") CONTENTS Installation Safety Notes........................2 Parts List.............................4 Safety Instructions...........................6 Installation Instructions........................7 Optional Accessories..........................17 Product Dimensions..........................18 B-Tech Contact Details........................20 INSTALLATION TOOLS REQUIRED Hex Keys Crosshead (Supplied) screwdriver B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. - Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
-
Page 4: Parts List
BT7504 PARTS LIST Suitable for loads up to 24kg (53lbs) INTERFACE ASSEMBLY... - Page 5 PART NAME TROLLEY BASE 1.1M POLE MOUNTING PLATE INTERFACE PLATE WHEEL (FOR PART 1) BASE END CAP M16 x 60mm HEX BOLT COLLAR COLLAR COVER POLE END CAP M10 x 20mm HEX GRUB SCREW M8 x 12mm HEX SCREW M8 SPRING WASHER M4 x 10mm HEX SCREW LEVELLING FOOT (FOR PART 1) ADAPTOR ARM...
-
Page 6: Safety Instructions
WARNING CAN TIP OVER WHICH MAY LEAD TO SERIOUS INJURY. DO NOT ALLOW CHILDREN UNDER 16 TO MOVE TROLLEY. MOVE TROLLEY SLOWLY ALWAYS APPLY BRAKES WHEN NEVER LEAVE TROLLEY ON TROLLEY IS STATIONARY AN INCLINE. RELEASE BRAKES WHEN PUSHING ALWAYS PARK ON LEVEL GROUND TROLLEY. -
Page 7: Installation Instructions
PRODUCT ASSEMBLY For fixed installation select the levelling feet. For mobile application select the braked wheels. i. Screw the levelling feet to the trolley. - Page 8 ii. Screw the wheels to the trolley. LOCK WHEELS PRIOR TO INSTALLATION...
- Page 9 Attach the pole to the trolley base.
- Page 10 IF ATTACHING AV COMPONENT SHELF, DO SO NOW Fix the collar to the mounting plate.
- Page 11 Fix collar and mounting plate to the pole. i. Slide the collar and mounting plate onto the pole. ii. F ix at desired height using parts 11.
- Page 12 SCREENS WITH M8 FIXINGS Screw parts J into the flat screen fixing holes. Continue with screen mounting step 6. There are two methods of attaching the mount to the screen, depending on the screen fixing pattern. A) VESA Fixings: 75 x 75mm, 100 x 100mm or 200 x 100mm (page 12) B) VESA Fixings: 200 x 200mm (page 13) VESA Fixings: 75 x 75mm, 100 x 100mm, 200 x 100mm i.
- Page 13 VESA Fixing: 200 x 200mm i. Fix the adaptor arms to the interface. ii. Attach interface to back of the screen. PART G FOR USE WITH PARTS A & B FLAT SCREEN FOR SCREENS WITH RECESS FIXINGS INTERFACE SCREW WASHER SPACER FLAT SCREEN...
- Page 14 Attach flat screen to trolley. i. Hook on flat screen WARNING: Lock wheels before hooking flat screen on. FLAT SCREEN...
- Page 15 ii. Secure in place using parts 14. FLAT SCREEN...
- Page 16 Attach the collar covers (parts 9), pole end caps (parts 10) and base ends caps (parts 6) to trolley / stand.
-
Page 17: Optional Accessories
OPTIONAL ACCESSORIES BT7161 BT7162 BT7505 BT7540 BT7540 2 SETS OF BT7540 REQUIRED VESA 400 x 400mm BT7161 BT7161 BT7162 BT7162 BT7504 BT7504... -
Page 18: Product Dimensions
PRODUCT DIMENSIONS 60mm 2.4" 735mm 455mm 28.9" 17.9" TROLLEY BASE 445mm 17.5" 365mm 14.4" 620mm 24.4" 732mm 28.8" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. - Page 19 0.2" 220mm 8.5" 8.7" MOUNTING PLATE 122mm 4.8" 100mm 3.9" 78mm 3.1" 24mm 0.9" 0.3" 170mm 6.7" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
-
Page 20: B-Tech Contact Details
©2012 B-Tech International Limited. All rights reserved. B-Tech Audio Video Mounts is a division of B-Tech International Limited. B-Tech and Better By Design are registered trademarks of B-Tech International Limited. All other brands and product names are trademarks of their respective owners.
