Parts List.............................................................................................................................................4
Actual screen size and weight limit dependent on mount to which BT7506 is attached CONTENTS Installation Safety Notes........................2 Parts List.............................4 Installation Instructions........................6 Product Dimensions..........................7 B-Tech Contact Details........................8 TOOLS REQUIRED 2.5mm Pin Hex Security Key (Supplied) B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com...
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions.
Page 3
Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.

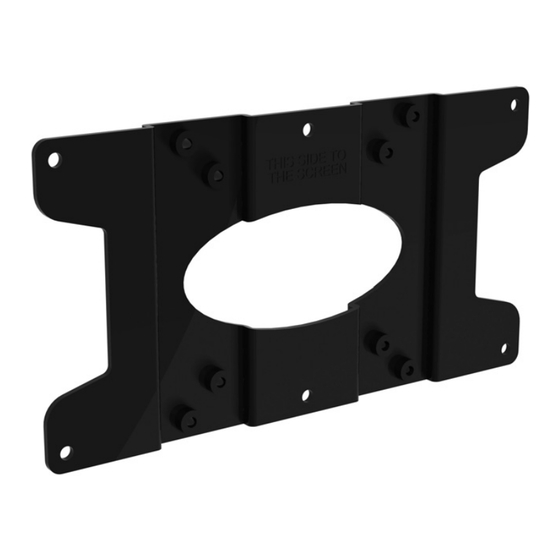

INSTALLATION INSTRUCTIONS i. Attach VESA mount (75 x 75mm or 100 x 100) to BT7506. VESA mount interface plate ii. Attach to flat screen. FLAT SCREEN...
BT7506 PRODUCT DIMENSIONS 200mm 7.9" 100mm 3.9" 75mm 3" 214mm 8.4" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
