INSTALLATION TOOLS REQUIRED
13mm (1/2") spanner
or socket
B-TECH AUDIO VIDEO MOUNTS
BT7534

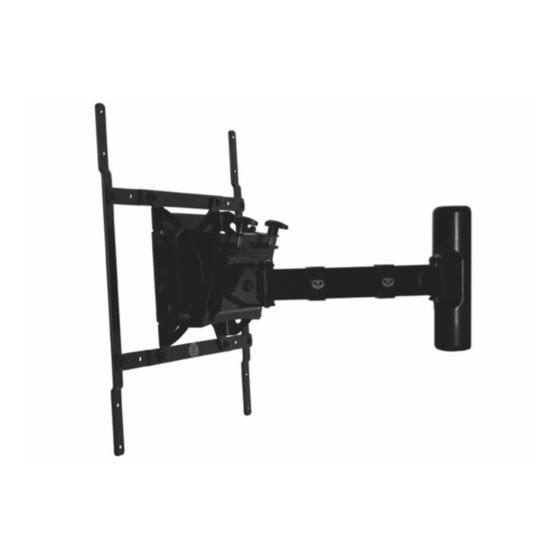

FLAT SCREEN WALL MOUNT
WITH SINGLE ARM EXTENSION , TILT & SWIVEL
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
Drill
10mm (7/16") masonry bit
or 6mm (1/4") wood bit
www.btechavmounts.com
FEATURES
●
Designed for medium flat screens up to 50" (127cm) / 40kg (88lbs)
●
Fits screens with VESA mounting patterns:
75 x 75mm, 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm,
400 x 200mm, 200 x 300mm, 400 x 300mm and 400 x 400mm
VESA mounting patterns
●
Incorporates post installation screen levelling
●
Easy tilt adjustment +/-15° tilt
●
Features two swivel points: 180° at wall and 240° at interface
●
Alternative short-arm included
●
Security locking screws and Allen key provided for a secure installation
●
Simple installation with all mounting hardware included
Pencil
Stud finder
(optional)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for B-Tech Mountlogic BT7534
Summary of Contents for B-Tech Mountlogic BT7534
-
Page 1: Table Of Contents
Installation Safety Notes........................2 Parts List.............................4 Optional Short Arm..........................6 Installation Instructions........................7 Product Dimensions..........................14 B-Tech Contact Details........................16 INSTALLATION TOOLS REQUIRED Pencil 13mm (1/2") spanner Drill 10mm (7/16") masonry bit Stud finder or socket (optional) or 6mm (1/4") wood bit B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. - Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
-
Page 4: Parts List
BT7534 PARTS LIST INTERFACE WALL PLATE, ARM & ASSEMBLY LEVELLING PLATE ASSEMBLY Suitable for loads up to 40kg (88lbs) - Page 5 PART NAME WALL PLATE ASSEMBLY LONG EXTENSION ARM LEVELLING PLATE BACK PLATE INTERFACE PLATE ADAPTOR ARM LEFT COVER RIGHT COVER ARM COVER M8 PLASTIC WASHER M8 x 60mm PIN HEX SECURITY SCREW M8 MALE HANDWHEEL M12 PLASTIC WASHER M8 x 16mm CUP SQUARE BOLT M8 METAL WASHER WINGED HANDWHEEL M8 FEMALE HANDWHEEL...
-
Page 6: Optional Short Arm
OPTIONAL SHORT ARM Replace part 2 with part 21. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS Fix wall plate to the wall using one of the following methods. i. Concrete / brick walls. SHORT ARM 10mm (7/16") masonry bit ii. Wood / stud walls. ATTACH COVERS 6mm (7/32") 6mm (1/4") wood bit wood bit... - Page 8 SCREENS WITH M8 FIXINGS Screw parts M into the flat screen fixing holes. Continue with screen mounting. There are three methods of attaching the mount to the screen, depending on the screen fixing pattern. i. 75 x 75mm, 100 x 100mm, 200 x 100mm or 200 x 200mm (page 8) ii.
- Page 9 ii. For 300 x 200mm or 400 x 200mm attach adaptor arms to interface plate, then to the screen. ATTACH ADAPTORS USE ONLY WITH PARTS B,C,D OR E FLAT SCREEN FOR SCREENS WITH RECESS FIXINGS INTERFACE SCREW WASHER SPACER FLAT SCREEN RECESS...
- Page 10 iii. For 300 x 300mm, 400 x 300mm or 400 x 400mm attach adaptor arms to interface plate, then to the screen. ATTACH ADAPTORS USE ONLY WITH PARTS B,C,D OR E FLAT SCREEN FOR SCREENS WITH RECESS FIXINGS INTERFACE SCREW WASHER SPACER FLAT...
- Page 11 Hook the screen onto the mount. FLAT WALL SCREEN Attach handwheel (part 16), and tighten. FLAT SCREEN...
- Page 12 Adjust and fix the tilt using parts 17. +/- 15 ° WALL FLAT SCREEN To level the screen, adjust parts 12. SCREEN LEVELLING FLAT SCREEN...
- Page 13 FLAT SCREEN CAUTION: Ensure there is adequate cable slack for movement of the screen, and that cables will not be pinched when the mount is closed. OPTIONAL ACCESSORIES B-Tech AV Component Shelves & Cable Management. BT7087 BT7070 BT7077 BT7070 BT7078...
-
Page 14: Product Dimensions
WITH LONG ARM 382mm 15" 136mm 67mm 5.4" 2.6" 473mm 18.6" ii) WITH SHORT ARM 197mm 152mm 7.8" 6" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. - Page 15 2 ADAPTOR ARMS 4 ADAPTOR ARMS 400mm 400mm 15.7" 15.7" 300mm 300mm 11.8" 11.8" 420mm 420mm 16.5" 16.5" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
-
Page 16: B-Tech Contact Details
©2011 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design, System 2 and Mountlogic are registered trademarks of Bennett Technologies Limited. All other brands and product names are trademarks of their respective owners.
