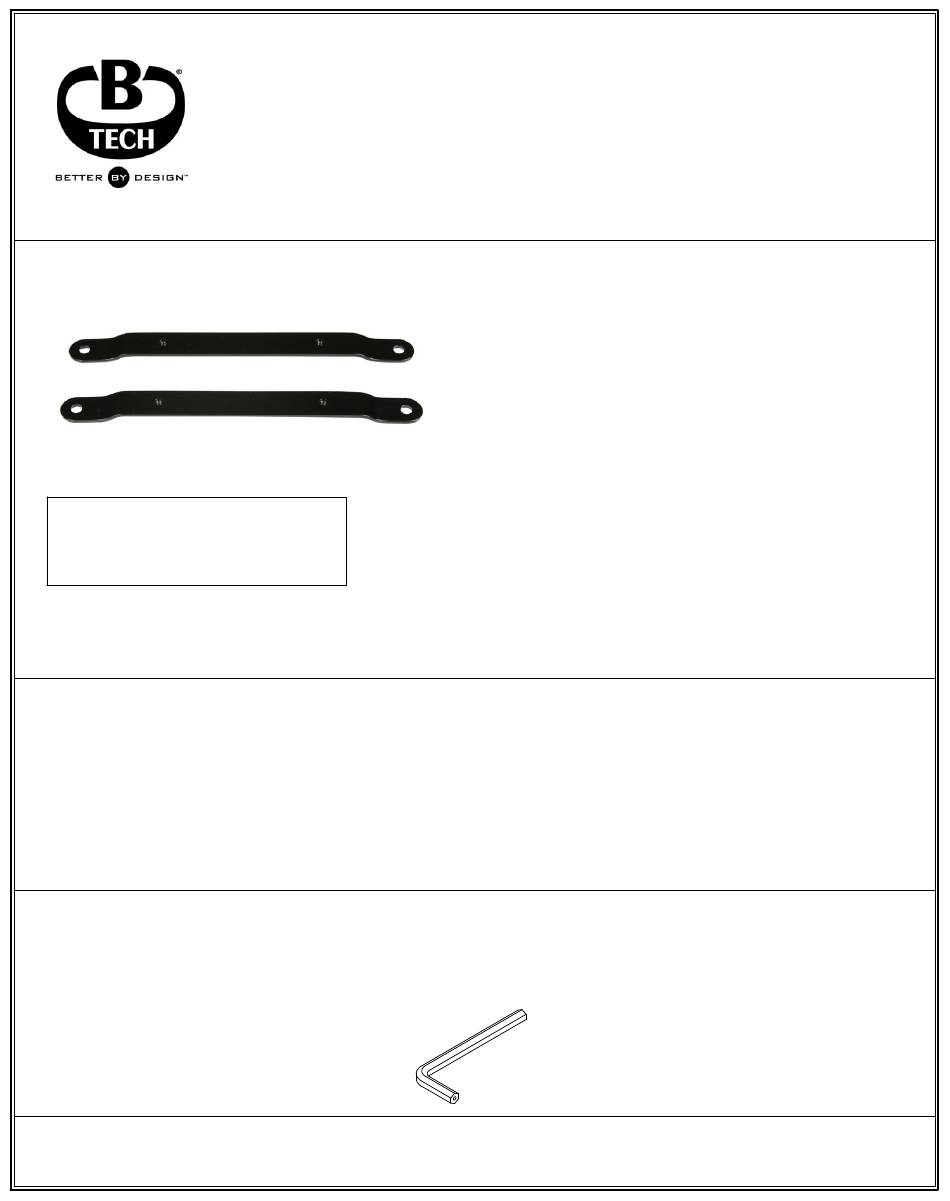

BT7542
VESA ADAPTOR ARMS
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 2 Adaptor Arms
PLEASE KEEP THIS FOR FUTURE REFERENCE
Must be used with a VESA
100 x 100mm or 200 x 100mm
screen mount
Community Design No.
001713280-0017
Installation Safety Notes...................................................................................................... ...............2
Parts List.............................................................................................................................................4
Installation Instructions........................................................................................................................6
Product Dimensions............................................................................................................................7
B-Tech Contact Details.......................................................................................................................8
INSTALLATION TOOLS REQUIRED
B-TECH AUDIO VIDEO MOUNTS
FEATURES
●
Converts VESA 100 x 100mm mounts to
VESA 200 x 100mm
●
Converts VESA 200 x 100mm mount to
VESA 200 x 200mm
●
Suitable for flat screens using M4, M6 and M8 fixings
●
Theft-deterrent security features as standard
●
All mounting hardware & fixings included
Actual screen size and weight limit dependent
on mount to which BT7542 is attached
CONTENTS
4mm Pin Hex
Security Key
(Supplied)
www.btechavmounts.com
