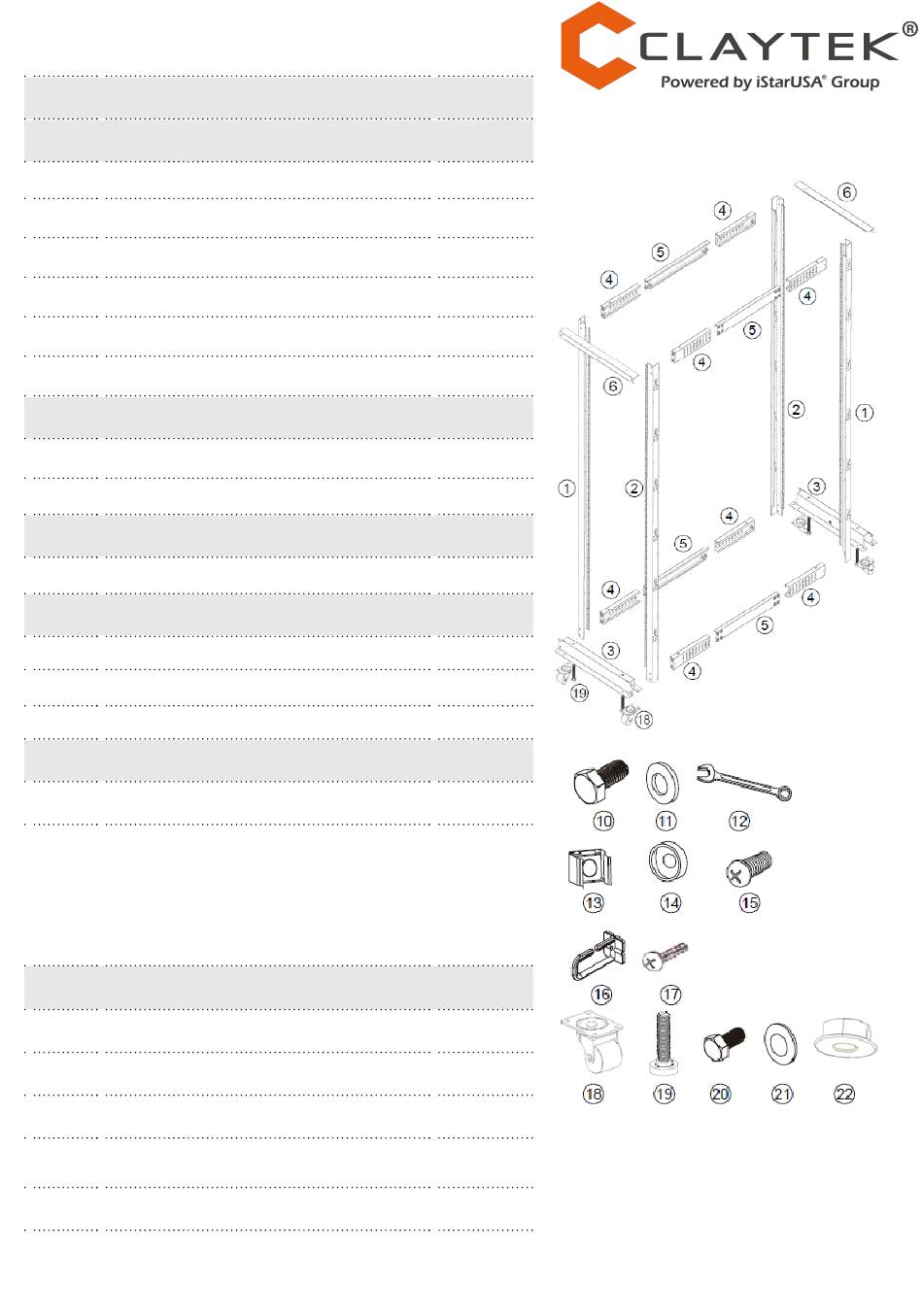

WOR-2740C
ID
Rack Components
1
Left Vertical Rail
2
Right Vertical Rail
3
Base Bracket
4
Corner Section
5
Center Section
6
Top Bracket
Rack Assembly Hardware
10
11
M8 Washer
Rack Assembly Tool
12
M8 (13mm) Wrench
Equipment Mounting Hardware
13
M6 Cage Nut
14
PVC Cup Washer
15
M6 Phillips-Head Screw
Cable Management Hardware
16
Cable Management Hook
17
Hook Mounting Screw
Casters and Hardware(Optional Accessories)
18
19
Levelling Feet
20
M6 Screw
21
M6 Flat Washer
22
M6 Flange Nut
Name
M8 Bolt
Casters
Qty
2
2
2
8
4
2
48
48
1
50
50
50
16
16
4
4
16
32
16
1
Advertisement
Table of Contents
Related Manuals for StarTech.com CLAYTEK WOR-2740C
Summary of Contents for StarTech.com CLAYTEK WOR-2740C
- Page 1 WOR-2740C Name Rack Components Left Vertical Rail Right Vertical Rail Base Bracket Corner Section Center Section Top Bracket Rack Assembly Hardware M8 Bolt M8 Washer Rack Assembly Tool M8 (13mm) Wrench Equipment Mounting Hardware M6 Cage Nut PVC Cup Washer M6 Phillips-Head Screw Cable Management Hardware Cable Management Hook...
- Page 2 Installation Verify packaging contents before proceeding with assembly. 1. Assemble the Top and Bottom Beams (4 total) as shown below, adjusting for your desired mounting depth using the numbers indicated on the center section pieces (see chart below) Mounting Depth Index Numbers Mounting Depth Index Numbers...
- Page 3 2. Using two of the Beams assembled in the previous step, line up one set of Left and Right Vertical Rails, followed by the Base and Top Bracket pieces and fasten as shown. NOTE: In order to ensure all of the screw holes will line up easily, it is recommended to hand-tighten the nuts through the entire assembly process, and then fully tighten using an adjustable wrench once all bolts have been inserted.
- Page 4 Optional Component Installation 1. Install the Casters (4pcs) and Leveling Feet (4pcs) as shown. 2. Stand the rack upright and install the included Cable Management Hooks in your desired locations as shown. Instruction Manual...
