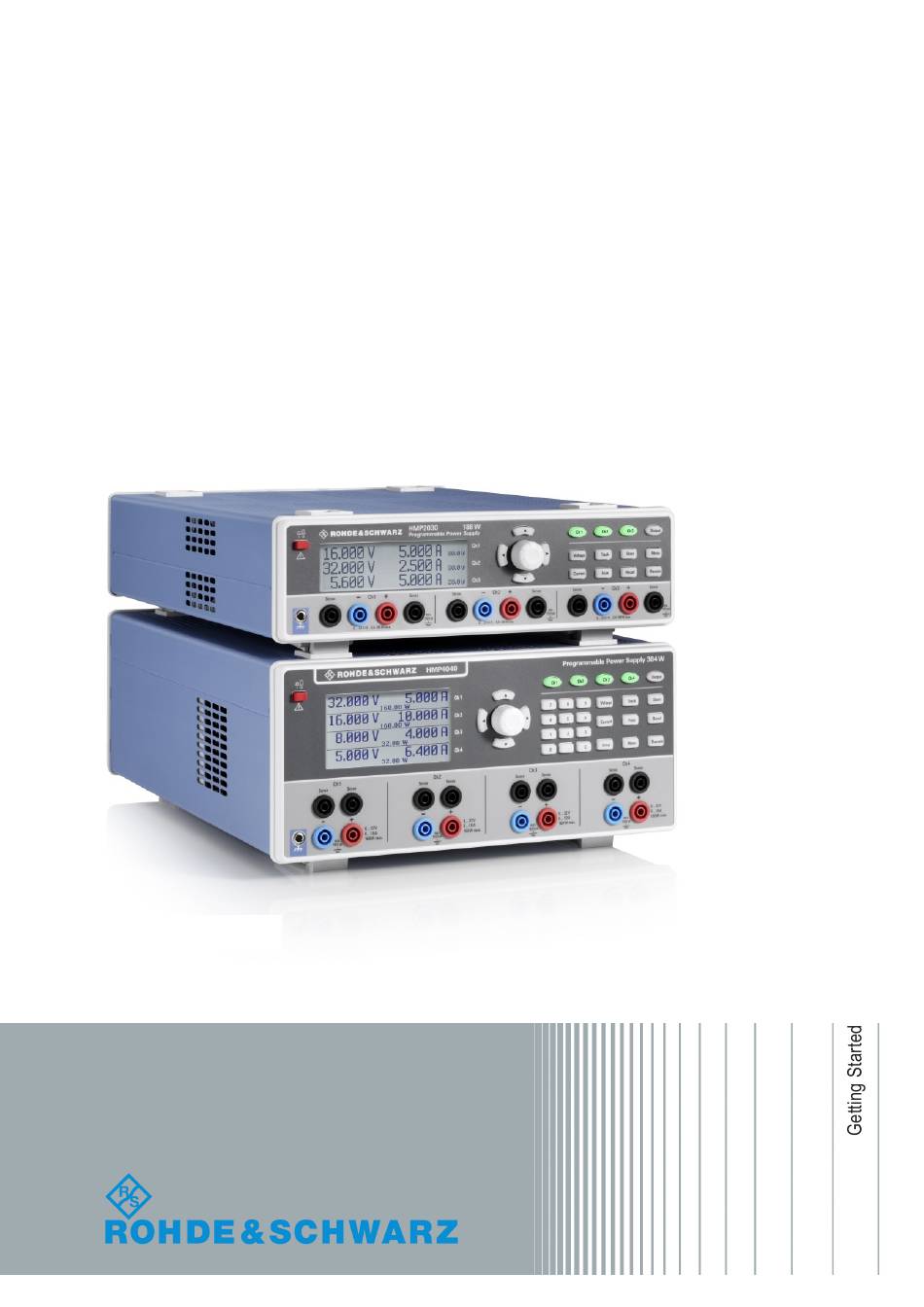

  • Page 1 ® R&S HMP Series Power Supplies Getting Started (;ÜÑé2) 1178.6791.02 ─ 02...
  • Page 2 Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of their owners. Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g. ® R&S HMP2020 is indicated as R&S HMP2020, or R&S HMP.
  • Page 3 Basic Safety Instructions Always read through and comply with the following safety instructions! All plants and locations of the Rohde & Schwarz group of companies make every effort to keep the safety standards of our products up to date and to offer our customers the highest possible degree of safety. Our products and the auxiliary equipment they require are designed, built and tested in accordance with the safety standards that apply in each case.
  • Page 4 Basic Safety Instructions Symbol Meaning Symbol Meaning Caution ! Hot surface Alternating current (AC) Protective conductor terminal Direct/alternating current (DC/AC) To identify any terminal which is intended for connection to an external conductor for protection against electric shock in case of a fault, or the terminal of a protective earth Earth (Ground) Class II Equipment...
  • Page 5 Basic Safety Instructions Operating states and operating positions The product may be operated only under the operating conditions and in the positions specified by the manufacturer, without the product's ventilation being obstructed. If the manufacturer's specifications are not observed, this can result in electric shock, fire and/or serious personal injury or death. Applicable local or national safety regulations and rules for the prevention of accidents must be observed in all work performed.
  • Page 6 Basic Safety Instructions 6. The product may be operated only from TN/TT supply networks fuse-protected with max. 16 A (higher fuse only after consulting with the Rohde & Schwarz group of companies). 7. Do not insert the plug into sockets that are dusty or dirty. Insert the plug firmly and all the way into the socket provided for this purpose.
  • Page 7 Basic Safety Instructions 2. Before you move or transport the product, read and observe the section titled "Transport". 3. As with all industrially manufactured goods, the use of substances that induce an allergic reaction (allergens) such as nickel cannot be generally excluded. If you develop an allergic reaction (such as a skin rash, frequent sneezing, red eyes or respiratory difficulties) when using a Rohde &...
  • Page 8 Basic Safety Instructions 2. Adjustments, replacement of parts, maintenance and repair may be performed only by electrical experts authorized by Rohde & Schwarz. Only original parts may be used for replacing parts relevant to safety (e.g. power switches, power transformers, fuses). A safety test must always be performed after parts relevant to safety have been replaced (visual inspection, protective conductor test, insulation resistance measurement, leakage current measurement, functional test).
  • Page 9 Instrucciones de seguridad elementales 3. If you use the product in a vehicle, it is the sole responsibility of the driver to drive the vehicle safely and properly. The manufacturer assumes no responsibility for accidents or collisions. Never use the product in a moving vehicle if doing so could distract the driver of the vehicle.
  • Page 10 Instrucciones de seguridad elementales Además queda en la responsabilidad del usuario utilizar el producto en la forma debida. Este producto está destinado exclusivamente al uso en la industria y el laboratorio o, si ha sido expresamente autorizado, para aplicaciones de campo y de ninguna manera deberá ser utilizado de modo que alguna persona/cosa pueda sufrir daño.
  • Page 11 Instrucciones de seguridad elementales Símbolo Significado Símbolo Significado Conexión a tierra El aparato está protegido en su totalidad por un aislamiento doble (reforzado) Conexión a masa Distintivo de la UE para baterías y acumuladores Más información en la sección "Eliminación/protección del medio ambiente", punto 1.
  • Page 12 Instrucciones de seguridad elementales Estados operativos y posiciones de funcionamiento El producto solamente debe ser utilizado según lo indicado por el fabricante respecto a los estados operativos y posiciones de funcionamiento sin que se obstruya la ventilación. Si no se siguen las indicaciones del fabricante, pueden producirse choques eléctricos, incendios y/o lesiones graves con posible consecuencia de muerte.
  • Page 13 Instrucciones de seguridad elementales integran productos sin interruptor en bastidores o instalaciones, se deberá colocar el interruptor en el nivel de la instalación. 5. No utilice nunca el producto si está dañado el cable de conexión a red. Compruebe regularmente el correcto estado de los cables de conexión a red.
  • Page 14 Instrucciones de seguridad elementales 17. No utilice el producto en condiciones en las que pueda producirse o ya se hayan producido condensaciones sobre el producto o en el interior de éste, como p. ej. al desplazarlo de un lugar frío a otro caliente.
  • Page 15 Instrucciones de seguridad elementales pueden causar perturbaciones radioeléctricas en entornos residenciales debido a posibles perturbaciones guiadas o radiadas. En este caso, se le podrá solicitar al operador que tome las medidas adecuadas para eliminar estas perturbaciones.  Aparato de clase B: Aparato adecuado para su uso en entornos residenciales, así...
  • Page 16 Instrucciones de seguridad elementales 8. En caso de devolver baterías de litio a las filiales de Rohde & Schwarz, debe cumplirse las normativas sobre los modos de transporte (IATA-DGR, código IMDG, ADR, RID). Transporte 1. El producto puede tener un peso elevado. Por eso es necesario desplazarlo o transportarlo con precaución y, si es necesario, usando un sistema de elevación adecuado (p.
  • Page 17 Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz equipment, contact one of our Customer Support Centers. A team of highly qualified engineers provides telephone support and will work with you to find a solution to your query on any aspect of the operation, programming or applications of Rohde &...

  • Page 18: Table Of Contents

    4.2 Setting Up a Network (LAN) Connection.......... 18 5 Instrument Tour..............22 5.1 Front Panel Views of the R&S HMP2030 and the R&S HMP2020..22 5.2 Front Panel Views of the R&S HMP4040 and the R&S HMP4030..23 5.3 Rear Panel Views of the R&S HMP2030 and the R&S HMP2020..24 5.4 Rear Panel Views of the R&S HMP4030 and the R&S HMP4040..
  • Page 19 ® Contents R&S HMP Series Getting Started 1178.6791.02 ─ 02...

  • Page 20: Documentation Overview

    ® Documentation Overview R&S HMP Series Brochure and Specifications Documentation Overview This section provides an overview of the R&S HMP user documentation. Unless specified otherwise, you find the documents on the R&S HMP product page at: www.rohde-schwarz.com/manual/hmp Getting Started Manual Introduces the R&S HMP and describes how to set up and start working with the product.

  • Page 21: Release Notes

    ® Documentation Overview R&S HMP Series Remote Control Drivers Release Notes The release notes list new features, improvements and known issues of the cur- rent firmware version, and describe the firmware installation. The release notes are part of the download up-to-date firmware at www.rohde- schwarz.com/firmware/hmp.

  • Page 22: For Your Safety

    ® For Your Safety R&S HMP Series For Your Safety The instruments of the R&S HMP series are designated for use in industrial, administrative, and laboratory environments, and residential, business, commer- cial and small business areas. The instruments comply with protection class II. Use an R&S HMP only for its designated purpose.

  • Page 23: Key Features

    ® Key Features R&S HMP Series Key Features The R&S HMP Series power supplies sets standards in performance and usabil- ity. Outstanding key features are: ● High output power within a minimum space, high efficiency and low residual ripple. ● High programming and readback resolution for applications with the highest demands.

  • Page 24: Preparing For Use

    ® Preparing for Use R&S HMP Series Putting into Operation Preparing for Use Putting into Operation This section describes the basic steps to be taken when setting up the R&S HMP for the first time. 4.1.1 Safety This instrument is built in compliance with DIN EN 61010-1 (VDE 0411 part 1), safety regulations for electrical measuring instruments, control units and Labora- tory equipment.
  • Page 25 ® Preparing for Use R&S HMP Series Putting into Operation Risk of injury due to disregarding safety information Observe the information on appropriate operating conditions provided in the data sheet to prevent personal injury or damage to the instrument. Read and observe the basic safety instructions provided with the instrument, in addition to the safety instructions in the following sections.
  • Page 26 ® Preparing for Use R&S HMP Series Putting into Operation Risk of instrument damage during operation An unsuitable operating site or test setup can damage the instrument and connected devices. Ensure the following operating conditions before you switch on the instrument: ●...
  • Page 27 ® Preparing for Use R&S HMP Series Putting into Operation ● Before each measurement, check the instrument for proper operation using a known signal source or sample. ● Signal levels at the input connectors are all within the specified ranges. ●...
  • Page 28 ® Preparing for Use R&S HMP Series Putting into Operation 4.1.2 Unpacking and Checking the Instrument To remove the instrument from its packaging and check the equipment for com- pleteness, proceed as follows: ● Check the package for damage. ● Carefully unpack the instrument and the accessories. ●...
  • Page 29 ® Preparing for Use R&S HMP Series Putting into Operation 4.1.4 Placing or Mounting the Instrument The R&S HMP is designed for use under both, industry and laboratory conditions, either on a bench top or in a rack. Bench Top Operation If the R&S HMP is operated on a bench top, the surface must be flat.
  • Page 30 ® Preparing for Use R&S HMP Series Putting into Operation Risk of injury when stacking instruments A stack of instruments can tilt over and cause injury if not stacked correctly. Furthermore, the instruments at the bottom of the stack can be damaged due to the load imposed by the instruments on top.
  • Page 31 ® Preparing for Use R&S HMP Series Putting into Operation 2. Remove the feet. Tip: Save the feet with the screws if you want to operate the R&S HMP as bench top later. Risk of instrument damage due to insufficient airflow in a rack If the instrument is run with insufficient airflow for a longer period, the instru- ment overheats, which can disturb the operation or turn off the R&S HMP.
  • Page 32 The nominal current of the fuse depends on the line voltage, and the R&S HMP model: Table 4-1: Fuse types Line Voltage R&S HMP2020 / R&S HMP2030 R&S HMP4030 / R&S HMP4040 115 V 2 x T6.3H/250 V 2 x T10H/250 V 230 V 2 x T3.15H/250 V...

  • Page 33: Setting Up A Network (Lan) Connection

    ® Preparing for Use R&S HMP Series Setting Up a Network (LAN) Connection 4. Exchange the fuses. 5. Note: The protruding contact springs must not be deformed, therefore: Align the fuse holder with the guide bar facing the socket. 6. Carefully slide the fuse holder against the spring pressure into the slot until both plastic locks latch.
  • Page 34 ® Preparing for Use R&S HMP Series Setting Up a Network (LAN) Connection This section describes how to set up and configure the LAN interface. For remote control via the alternative interfaces, refer to the user manual of the R&S HMP. Risk of network failure Consult your network administrator before performing the following tasks: ●...
  • Page 35 ® Preparing for Use R&S HMP Series Setting Up a Network (LAN) Connection To assign the IP address manually on the instrument To assign the IP address, first select the interface. In addition, check if DHCP is not active. Otherwise, you cannot edit the IP address. 1.
  • Page 36 ® Preparing for Use R&S HMP Series Setting Up a Network (LAN) Connection Checking the LAN connection To verify the connection, you can use the ping command. ► In the command prompt on the remote PC, enter ping <ip_address> When the connection is working, the command returns the reply from the instrument.

  • Page 37: Instrument Tour

    Instrument Tour R&S HMP Series Front Panel Views of the R&S HMP2030 and the R&S HMP2020 Instrument Tour The following sections explain the control elements and the connectors of the R&S HMP Series instruments by their front and rear views.

  • Page 38: Front Panel Views Of The R&S Hmp4040 And The R&S Hmp4030

    14 = Ground socket: Reference potential connection (connected to protective earth) 15 = Ch1, Ch2, Ch3 sockets: Output channels; 0 V to 32 V / 5 A (HMP2020 0...32 V / 10 A) 16 = Sense sockets (2 x per channel): Compensating the lead resistances Front Panel Views of the R&S HMP4040 and the...

  • Page 39: Rear Panel Views Of The R&S Hmp2030 And The R&S Hmp2020

    Instrument Tour R&S HMP Series Rear Panel Views of the R&S HMP2030 and the R&S HMP2020 Figure 5-2: Front view of the R&S HMP4040 1 = Power key: Turning the instrument on and off 2 = Display (LCD): Parameter display...

  • Page 40: Rear Panel Views Of The R&S Hmp4030 And The R&S Hmp4040

    ® Instrument Tour R&S HMP Series Rear Panel Views of the R&S HMP4030 and the R&S HMP4040 Figure 5-3: Rear view of the HMP20x0 series 17 = Interface: Ethernet / USB dual interface R&S HO732 (default for all instruments of the R&S HMP series) 18 = Output connector: Rear panel outputs for integration into rack systems (2 to 3 channels) 19 = Voltage selector: Selecting the line voltage 115 V or 230 V...
  • Page 41 ® Instrument Tour R&S HMP Series Rear Panel Views of the R&S HMP4030 and the R&S HMP4040 19 = Interface: Ethernet / USB dual interface R&S HO732 (default for all instruments of the R&S HMP series) 20 = Output connectors: Rear panel outputs for integration into rack systems (3 to 4 channels, depending on the R&S HMP40x0 model) 21 = Power supply connector: IEC socket and fuse holder 22 = Voltage selector: Selecting the line voltage 115 V or 230 V...

  • Page 42: Trying Out The Instrument

    ® Trying Out the Instrument R&S HMP Series Trying Out the Instrument This chapter describes the first steps with the R&S HMP. It shows a simple con- figuration for providing the power at the output. For basics on operating the instru- ment, see Chapter 7, "Instrument Control",...
  • Page 43 ® Trying Out the Instrument R&S HMP Series Selecting the output voltage 1. Press the Voltage key. The Voltage key and the arrow keys are illuminated, indicating that they are active. 2. Press the channel key, e.g. Ch1. Activates the voltage setting. The Ch1 key illuminates blue. 3.
  • Page 44 ® Trying Out the Instrument R&S HMP Series The R&S HMP immediately applies the setting and indicates the activated fuse in the display. After the fallback time has elapsed, the instrument exits the setting mode. See Chapter "Instrument Functions > General Functions > Key Fallback Time" in the user manual.

  • Page 45: Instrument Control

    ® Instrument Control R&S HMP Series Means of Manual Interaction Instrument Control This chapter provides an overview on how to work with the R&S HMP. It covers the following topics: ● Ways to Operate the Instrument..............30 ● Means of Manual Interaction................30 ●...
  • Page 46 ® Instrument Control R&S HMP Series Means of Manual Interaction Understanding the display information Brief overview of the displayed elements: ● Home screen: Displays the channel parameters. ● Menus: Lists functions leading to the setting dialogs. ● Dialogs: Provide the settings of the specific functions. Illuminated keys The illuminated front panel keys provide access to the instrument settings and to activate functions and operating modes.
  • Page 47 ® Instrument Control R&S HMP Series Means of Manual Interaction – Increments (clockwise direction) or decrements (counterclockwise direc- tion) the instrument parameter at a defined step size in the case of a numeric entry – Acts like the Enter key, when it is pressed ●...

  • Page 48: Remote Control

    ® Instrument Control R&S HMP Series Remote Control Throughout the user documentation, the instructions for configuring settings use the rotary knob and arrow keys. The alternative operating methods are only noted here. Remote Control In addition to operating the R&S HMP directly on the instrument, it is also possi- ble to operate and control it from a remote PC.

  • Page 49: Index

    Illuminated keys .........22, 31 Instrument control ........30 Rack mounting ........14, 15 Manual operation ........ 30 Rear panel Remote control ........30 HMP2020 ..........24 Ways of operation ....... 30 HMP2030 ..........24 Instrument tour ........22 HMP4030 ..........25 HMP4040 ..........25 Recalling instrument settings ....
  • Page 50 ® Index R&S HMP Series Remote connection Not working ......... 19 Remote control ........30, 33 Drivers ..........6 Interfaces ..........33 Safety ............ 7, 9 Safety instructions ........5 Saving instrument settings ...... 29 SCPI programmers manual ....... 5 Selecting a channel .........
