Instruction Manual

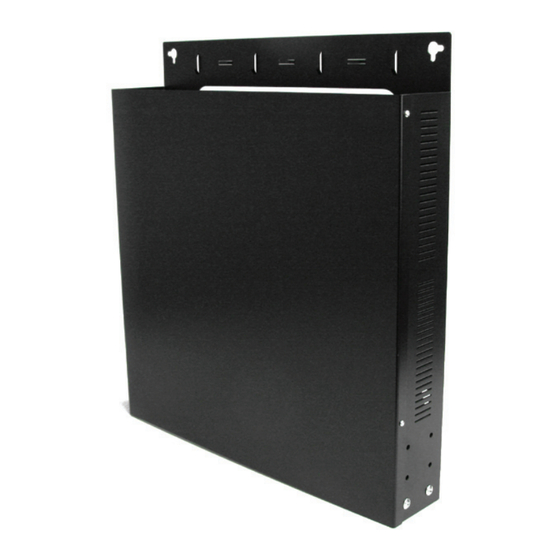

2U 19in Steel Horizontal Wall Mountable Server Rack
RK219WALVO / RK419WALVO
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x RKx19WALVO mountable server rack
• 8 x #10-32 Cage Nuts and Screws (16 x for RK419WALVO)
• 1 x Installation Guide
Installation
To affix the wall-mountable rack to a wall, there are 4 anchor points
on the rear. Disassemble
the top cover of the rack, by removing the two screws from either
side of the cover. Once removed,
all four anchor points should be accessible.
Use the appropriate screws or bolts for mounting heavy equipment
to the specific type of wall.
Please observe proper safety procedures and use the appropriate
tools.
The front mounting brackets can be easily adjusted to three different
depths, depending on the
equipment or application. Remove the two screws that hold each
bracket and move them to one of
the other mounting points.
For the most up-to-date information, please visit: www.startech.com
Specifications
RK219WALVO
Colour
Material
Mounting Hole
Type
Internal Height
Internal Mounting
Width
Maximum Weight
Capacity
External
118.0mm x 505.0mm
Dimensions
(D x W x H)
Net Weight
Standards
Certifications
*actual product may vary from photos
RK419WALVO
Black
SPCC (1.6mm thick)
Square
2U
4U
19in
27.7kg / 62.22lbs
210.0mm x 505.0mm
x 553.0mm
x 553.0mm
7960g
10960g
EIA RS-310D
RoHS
Manual Revision: 10/24/2011
