- Page 1 LMK61E2EVM User's Guide Literature Number: SNAU188 October 2015...
-
Page 2: Table Of Contents
......................EVM Quick Start Guide ..................Recommended Test Instruments ................... Example Performance Measurements ........................EVM Layout ........................EVM Schematic ......................EVM Bill of Materials Table of Contents SNAU188 – October 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... - Page 3 ......................Ordering Information ....................... Power Configurations ....................... Control Pin Interfaces ..................... Output Termination Schemes .................. Recommended Device Configurations ..................Typical Output RMS Jitter Summary SNAU188 – October 2015 List of Figures Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
-
Page 4: Lmk61E2Evm Photo

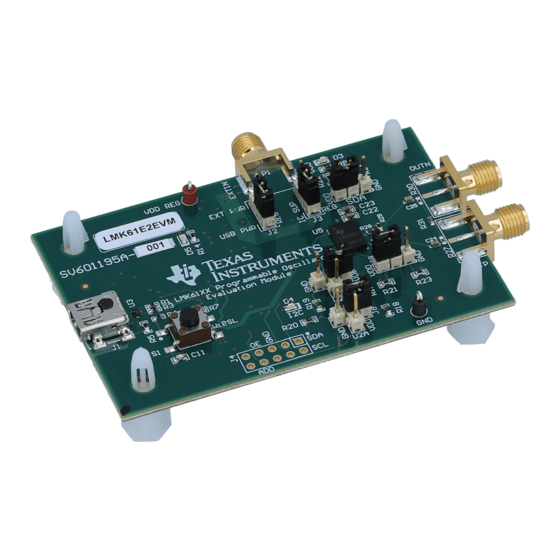

Figure 1. LMK61E2EVM Photo Table 1. Ordering Information EVM ID DEVICE ID DEVICE PACKAGE LMK61E2EVM LMK61E2-SIA 5 mm x 7 mm 8-pin QFM (SIA) LMK61E2EVM User's Guide SNAU188 – October 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 5: Overview
50 MHz crystal, low noise PLL, differential output, and integrated EEPROM. The LMK61E2EVM can be used as a flexible clock source for compliance testing, performance evaluation, and initial system prototyping. The onboard edge-launch SMA ports provides access to the LMK61E2’s configurable clock output for interfacing to test equipment and reference boards using commercially available coaxial cables, adapters, or baluns (not included). -
Page 6: Configuring The Evm
LMK61E2EVM. When operating the LMK61E2EVM, the power supply and clock outputs can be connected to the SMA ports shown in Figure 2. Additionally, the USB port can be used to power the entire LMK61E2EVM without the need for external power supplies. These SMA ports are labeled in the top silkscreen layer. -
Page 7: Power Terminals And Jumpers
Markings left of J2 indicate the orientation of jumper settings EXT PWR (pins 1 and 2 of jumper) and USB PWR / REG (pins 2 and 3 of jumper) USB cable must be connected to J1 for operation SNAU188 – October 2015 LMK61E2EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 8: Configuring The Control Pins
The LMK61E2 control pins serve several functions unique to device pins. For a description of each pin’s functionality and the device configuration based on their power up state, refer to Table 3. LMK61E2EVM User's Guide SNAU188 – October 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... - Page 9 Pin 4: N/C Pin 3: N/C Pin 5: GND Pin 6: N/C Pin 7: OE Pin 8: ADD Pin 9: N/C Pin 10: N/C SNAU188 – October 2015 LMK61E2EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
-
Page 10: Configuring The Clock Output
R27, R30, R31 50 ohm to Vcc-2 V termination is required on receiver. 100 ohm differential termination (R31) is provided on the LMK61E2EVM. Removing the differential termination on the EVM is possible if the differential termination is available on the receiver. -
Page 11: Using The Usb Interface Connection
Oscilloscope: Agilent DSA90000A series (or equivalent) for AC measurements and time-domain jitter analysis with jitter software package • Balun: M/A-COM H-183-4 (30-3000 MHz) 180° coupler, or equivalent SNAU188 – October 2015 LMK61E2EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 12: Example Performance Measurements
HCSL Figure 8 All measurements are AC coupled with recommended board terminations as in Table 4. Figure 6. 156.25 MHz LVPECL Differential Phase Noise LMK61E2EVM User's Guide SNAU188 – October 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... - Page 13 Example Performance Measurements www.ti.com Figure 7. 156.25 MHz LVDS Differential Phase Noise SNAU188 – October 2015 LMK61E2EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
- Page 14 Example Performance Measurements www.ti.com Figure 8. 161.1328125 MHz HCSL Differential Phase Noise LMK61E2EVM User's Guide SNAU188 – October 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
-
Page 15: Evm Layout
EVM Layout www.ti.com EVM Layout Figure 9. Top Overlay Figure 10. Top Solder Mask Figure 11. Layer 1 (Top Side) SNAU188 – October 2015 LMK61E2EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 16: Bottom Solder Mask
EVM Layout www.ti.com Figure 12. Layer 4 (Bottom Side, View From Bottom) Figure 13. Bottom Solder Mask Figure 14. Bottom Overlay LMK61E2EVM User's Guide SNAU188 – October 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 17: Drill Drawing
EVM Layout www.ti.com Figure 15. Drill Drawing SNAU188 – October 2015 LMK61E2EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 18: Evm Schematic
Default Shunt settings: SH5_2-3 means short Pins 2-3 of J9 jumper. For 3-way jumpers, Pin 4 is the 1-pin header. ZZ10 Assembly Note Default Shunt settings: SH6_2-3 means short Pins 2-3 of J10 jumper. For 3-way jumpers, Pin 4 is the 1-pin header. LMK61E2EVM User's Guide SNAU188 – October 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... - Page 19 DVCC1 DVSS1 - ADCs 0-4 DVCC2 DVSS2 - DACs 0-1 - PWMs 0-3 MSP430F5529IPN SH3_2_3 - SPI interface (I2C/SMBus only) SH4_2_3 0.1µF 0.1µF 0.1µF SNAU188 – October 2015 LMK61E2EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
- Page 20 4.7k OUTP OUTN OUT_N R_OUT_N 0.1µF LAYOUT NOTE: LAYOUT NOTE: OUTN LMK06001SIA Individual vias to Place close to SMA GND on shunt ports. resistors. LMK61E2EVM User's Guide SNAU188 – October 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
-
Page 21: Evm Bill Of Materials
RES, 4.7 k, 5%, 0.1 W, 0603 Vishay-Dale CRCW06034K70JNEA R26, R29 RES, 150, 5%, 0.1 W, 0603 Vishay-Dale CRCW0603150RJNEA RES, 100, 1%, 0.1 W, 0603 Vishay-Dale CRCW0603100RFKEA SNAU188 – October 2015 LMK61E2EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... - Page 22 SON (DRY), Green (RoHS & no Sb/Br) Mixed Signal MicroController, Texas Instruments MSP430F5529IPN PN0080A LMK61E2SIA, SIA0008B Texas Instruments LMK61E2-SIA Crystal, 24.000MHz, 20pF, SMD ECS Inc. ECS-240-20-5PX-TR LMK61E2EVM User's Guide SNAU188 – October 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated...
