Community Design No.
001713280-0008
COMPATIBLE
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................7
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
INSTALLATION TOOLS REQUIRED
13mm (1/2") spanner
or socket
B-TECH AUDIO VIDEO MOUNTS

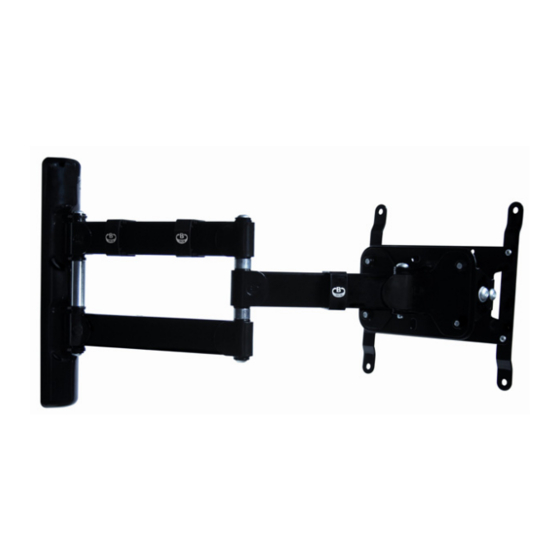

BT7515
FLAT SCREEN WALL MOUNT
WITH DOUBLE ARM EXTENSION, TILT & SWIVEL
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
Drill
10mm (7/16") masonry bit
or 6mm (1/4") wood bit
www.btechavmounts.com
FEATURES
● Designed for medium flat screens up to 42" (107cm) / 25kg (55lbs)
● Fits screens with VESA mounting patterns:
75 x 75mm, 100 x 100mm, 200 x 100mm and 200 x 200mm
● Incorporates post installation screen levelling at wall plate
and screen mount
● Easy tilt adjustment +/-40°
● Features three swivel points: 180° at wall, 360° at central pivot
and 240° at interface
● Security locking screws and Allen key provided for secure installation
● Simple 'hook-on' installation with all mounting hardware included
Pencil
Stud finder
(optional)
Advertisement
Related Manuals for B-Tech Mountlohic BT7515
Summary of Contents for B-Tech Mountlohic BT7515
- Page 1 CONTENTS Installation Safety Notes........................2 Parts List.............................4 Installation Instructions........................7 Product Dimensions..........................11 B-Tech Contact Details........................12 INSTALLATION TOOLS REQUIRED Drill Pencil 13mm (1/2") spanner Stud finder 10mm (7/16") masonry bit or socket (optional) or 6mm (1/4") wood bit B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com...
- Page 2 Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
- Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
- Page 4 BT7515 PARTS LIST WALL PLATE, ARMS & TILT PLATE ASSEMBLY Suitable for loads up to 25kg (55lbs)
- Page 5 PART NAME WALL PLATE ASSEMBLY LONG EXTENSION ARM SHORT EXTENSION ARM CONNECTOR PLATE TILT PLATE INTERFACE PLATE ADAPTOR ARM LEFT COVER RIGHT COVER ARM COVER LONG SHAFT SHORT SHAFT LONG SPACER M13 x 12mm METAL SPACER M8 x 12mm PIN HEX SECURITY SCREW WALL FIXING KIT M8 x 20mm PIN HEX SECURITY SCREW (FOR FIXING MOUNT TO WALL)
- Page 6 INSTALLATION INSTRUCTIONS Fix wall plate to the wall using one of the following methods. i. Concrete / brick walls. 10mm (7/10") masonry bit ii. Wood / stud walls. A2 A1 ATTACH COVERS 6mm (1/4") wood bit...
- Page 7 SCREENS WITH M8 FIXINGS Screw parts G into the flat screen fixing holes. Continue with screen mounting steps 2 and 3. Attach the interface to the back of the screen. FLAT SCREEN ii. For 200 x 200mm, attach adaptor arms to interface ATTACH ADAPTORS plate, then attach interface to the back of the screen.
- Page 8 Hook flat screen on wall plate. 5mm (0.2") (APPROX) FLAT SCREEN WALL FLAT SCREEN Secure in position using parts 15 and 17. FLAT SCREEN WALL...
- Page 9 Adjust tilt and fix in position using parts 15 and 22. ° +/- 40 FLAT SCREEN To fix extension arm position, tighten parts 16 and 20. FLAT SCREEN...
- Page 10 FLAT SCREEN CAUTION: Ensure there is adequate cable slack for movement of the screen, and that cables will not be pinched when the mount is closed. OPTIONAL ACCESSORIES B-Tech AV Component Shelves & Cable Management. BT7087 BT7070 BT7077 BT7070 BT7078...
- Page 11 0.9" 7.9" R134mm 100mm (5.3") 3.9" 75mm 3" 8.5mm 0.3" 8.5mm 0.3" 220mm 8.7" 12° 56mm 2.2" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
- Page 12 ©2011 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech, Better By Design, System 2 and Mountlogic are registered trademarks of Bennett Technologies Limited. All other brands and product names are trademarks of their respective owners.
