F70 Series
User Manual
601–426/00
16/06/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F70-W8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco F70-W8

Summary of Contents for Barco F70-W8

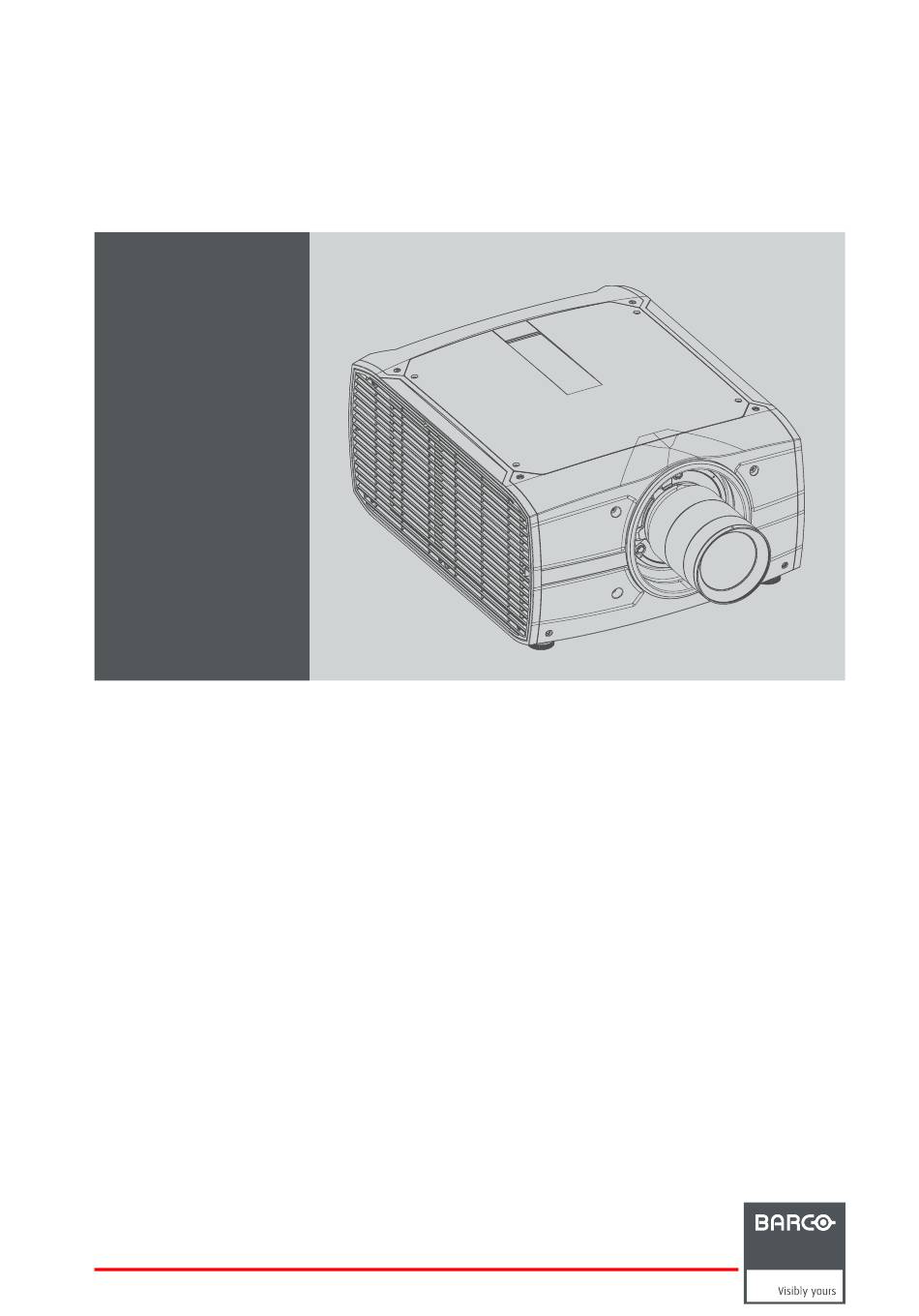

  • Page 1 F70 Series User Manual 601–426/00 16/06/2017...
  • Page 2 Barco Fredrikstad AS Habornveien 53, N-1630 Gamle Fredrikstad, Norway Phone: +47 6930 4550 Fax: +47 6930 4580 Support: Support.fre@barco.com Visit us at the web: www.barco.com Printed in Norway...
  • Page 3 Changes Barco provides this manual ’as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied war- ranties or merchantability and fitness for a particular purpose. Barco may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
  • Page 4 The period of guarantee begins on the date of transfer of risks, in the case of special systems and software on the date of commissioning, at latest 30 days after the transfer of risks. In the event of justified notice of complaint, Barco can repair the fault or provide a replacement at its own discretion within an appropriate period.

  • Page 5: Table Of Contents

    Table of contents TABLE OF CONTENTS 1. Safety ....................... . 3 General considerations.
  • Page 6 Table of contents 7. Image menu ......................49 IR / Night vision functionality .

  • Page 7: Safety

    • F70 — W6 Defining the GP6 platform The F90 series products in general, are all products within the Barco GP6 Platform. Defining the GP7 platform The F70 series products in general, are all products within the Barco GP7 Platform Overview •...
  • Page 8 VOLTAGE ELECTRIC and ELECTRONIC CIRCUITRY and HIGH BRIGHTNESS PROJECTORS) in performing a task, and of mea- sures to minimize the potential risk to themselves or other persons. Only Barco authorized SERVICE PERSONNEL, knowledgeable of such risks, are allowed to perform service functions inside the product enclosure. The term USER and OPERATOR refers to any person other than SERVICE PERSONNEL.

  • Page 9: Important Safety Instructions

    1. Safety Important safety instructions To prevent the risk of electrical shock • This product should be operated from a mono phase AC power source. • This apparatus must be grounded (earthed) via the supplied 3 conductor AC power cable. If none of the supplied power cables are the correct one, consult your dealer.
  • Page 10 Never use water on an electrical fire. • Always have service performed on this projector by authorized Barco service personnel. Always insist on genuine Barco re- placement parts. Never use non-Barco replacement parts as they may degrade the safety of this projector.

  • Page 11: Projector Hazard Distances

    • Unplug this product from the wall outlet and refer servicing to Barco authorized service personnel or technicians under the following conditions: If liquid has been spilled into the equipment.
  • Page 12 1. Safety behavior is reasonably foreseeable, the minimum separation height should be greater than or equal to 3.0 meter to prevent potential exposure, for example by an individual sitting on another individual’s shoulders, within the HD. These values are minimum values and are based on the guidance provided in IEC 62471-5:2015 section 6.6.5. The end user must understand the risk and apply protective measures based upon the hazard distance as indicated on the label and in the user information.

  • Page 13: Hazard Distance For Fully Closed Projection System

    1. Safety RESTRICTED AREA Image 1-2 Hazard Distance for fully closed projection system Hazard Distance (HD) is the distance measured from the projection lens at which the intensity or the energy per surface unit becomes lower than the applicable exposure limit on the cornea or on the skin. The light beam is considered (to be) unsafe for exposure if the distance from a person to the light source is less than the HD.

  • Page 14: Hd In Function Of The Lens Throw Ratio (Tr)

    1. Safety • HD as discussed in "High Brightness precautions: Hazard Distance (HD)", page 6 , relevant for intrabeam exposure. • HDreflection : the distance that has to be kept restrictive related to the reflected light from the rear projection screen. •...

  • Page 15: Safety Symbols

    1. Safety Hazard Distance Thermal Acidental Exposure Throw Ra o Image 1-5 Hazard Distance in meters versus Throw ratio of the lens for the F70 projectors Graphs shows Hazard Distance in meters versus Throw ratio of the lens Safety symbols Description of safety symbols used in product documentation or on product.
  • Page 16 For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/en/AboutBarco/weee...

  • Page 17: Rohs Compliance

    (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
  • Page 18 1. Safety 零件項目（名稱） 有毒有害物質或元素 Component Name Hazardous Substances or Elements 鉛 汞 六價 多 聯 多 二 (Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE) 印製電路配件 Printed Circuit Assemblies 外接電（線）纜 External Cables 部線路 Internal wiring 鏡頭支架 Lensholder 激光發生器 Laser 底架 Chassis 外殼 Enclosure 螺帽，螺釘（栓），螺旋（釘），...
  • Page 19 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求. X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in GB/T 26572. 在中国大陆销售的相应电子信息产品（EIP）都必须遵照中国大陆《电子电气产品有害物质限制使用标识要求》标准贴上环保使用期 限（EFUP）标签。Barco产品所采用的EFUP标签（请参阅实例，徽标内部的编号使用于指定产品）基于中国大陆的《电子信息产品环 保使用期限通则》标准。 601–426 F70 SERIES 16/06/2017...

  • Page 20: Contact Adresses

    Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...

  • Page 21: Getting To Know The Projector

    2. Getting to know the projector. 2. GETTING TO KNOW THE PROJECTOR. Overview • Main Components • Service and Maintenance • LED Status Light • Power on / Standby button backlight indications • LCD panel • Local keypad • Remote control, Battery installation •...

  • Page 22: Service And Maintenance

    Service and Maintenance General The F70 series does not have any user serviceable parts. All service tasks must only be carried out by the manufacturer, or a Barco authorized service personnel or Barco technicians. LED Status Light About The F70 Status Led is located on the rear top of the Projector During normal operation, the LED is not illuminated.

  • Page 23: Power On / Standby Button Backlight Indications

    2. Getting to know the projector. Power on / Standby button backlight indications Indicator In addition to the LED indicator, the projector also displays status indications in the backlight of the Power / Standby button. The table below shows the details regarding this indications. Operating Status Indication Color / Behavior On (active)

  • Page 24: Remote Control, Battery Installation

    2. Getting to know the projector. Image 2-3 Item Name Description LCD Display Shows Projector status and navigation menu. Navigation keys Navigation arrows (up, down, left, right), confirm selection ( ) OSD Display Enables the Home Menu on the LCD screen and the OSD. Standby Power on / standby Back...

  • Page 25: Remote Control, Protocol Setup

    Which protocol to use • The NEC protocol have to be used for Barco projectors based on the Pulse platform: F70, F80, F90, HDX 4K, UDX, ... • The RC5 protocol have to be use all other Barco projectors: HDX W, HDF W, HDQ 2K, ...

  • Page 26: Functionality Overview

    2. Getting to know the projector. Image 2-7 Functionality overview Remote Control Unit buttons Backspace (while entering Button pressed indicator. values) XLR connector. Shutter Open. Decimal mark (while entering Shutter Close. values) Touch Panel On/Off. (Not in Macro button. (Not in use) use).

  • Page 27: Controlling The Projector

    2. Getting to know the projector. Broadcast address Projector will always execute the command coming from a RCU programmed with that broadcast address. 2.10.1 Controlling the projector Why a projector address? As more than one projector can be installed in a room, each projector should be separately addressable with an RCU or computer. Therefore each projector has its own address.

  • Page 28: Color Wheels

    The F70 Projector is delivered with a standard Color wheel, that is suitable for most applications. Other colorwheels are available upon request. Consult Barco sales office or a service partner in order to find the most suitable colorwheel for the specific application. 2.13 Optional Accessories...

  • Page 29: Lenses

    3. Lenses 3. LENSES About Overview • Approved Lenses • Lens range • Replace a lens • Lens shift • Adjust zoom and focus • Adjust Iris Approved Lenses Approved Lenses Partnumber Description For North Amrica Outside North america R9801214 FLD 1.6 - 2.32 : 1 (EN11) approved approved...
  • Page 30 3. Lenses EN11 EN12 EN13 EN14 EN15 EN16 EN33 Image 3-1 Name Description Part number Weight FLD Lens 1.6 - 2.32 : 1 1.6-2.32 : 1 (WUXGA) R9801214 2.2 kg (EN11) FLD Lens 0.74 : 1 (EN12) 0.74:1 (WUXGA) R9801218 1.9 kg FLD Lens 1.24 - 1.6 : 1 1.24 - 1.6 : 1 (WUXGA)

  • Page 31: Replace A Lens

    3. Lenses Name Description Part number Weight FLD+ Lens 1.7 - 2.5 : 1 (EN41) 1.58 - 2.33 : 1 (WUXGA) / 1.7 - 2.5 : 1 R9801216 2.54 kg (WQXGA) FLD+ NV Lens 1.7 - 2.5 : 1 IR Optimized, 1.58 - 2.33 : 1 (WUXGA) / R9801216 2.54 kg (NV41)
  • Page 32 3. Lenses Image 3-3 Install a lens 1. Verify that the projector shutter is activated (shutter is activated when the shutter icon on the projector keypad is red). 2. Verify that the lens release lever is in its default position at the far left of the slide, as illustrated. 3.

  • Page 33: Lens Shift

    3. Lenses Lens shift General Use the Remote control or the keypad on the Projector to adjust the lens shift mechanism. The lenses can be shifted vertically and horizontally to facilitate precise image positioning in single and multiple projector systems. The projector allows for horizontal and vertical shift in both directions.
  • Page 34 3. Lenses Image 3-6 Use the arrow keys to adjust Iris until preferred rendering is obtained. 601–426 F70 SERIES 16/06/2017...

  • Page 35: Physical Installation

    To be linked to a chapter and page Installation conditions Environmental Conditions Barco projectors are manufactured according to specific design standards, which also include environmental conditions. Failing to follow the terms and conditions outlined in this chapter can result in loss of product warranty The table below summarize the physical environments in which the projector may be safely operated or stored.

  • Page 36: Initial Inspection

    Upon receipt of the projector, we recommend that customers inspect the projector for any signs of damage that may have occurred in transit. If damage is found, file a claim with the shipping carrier immediately. Notify the Barco Sales and Service office, or your preferred Barco agent, of the damage as soon as possible.

  • Page 37: Positioning The Projector

    4. Physical Installation The projector lens is delivered in a separate box. Positioning the projector AUTION The position and physical securing of the projector must be sufficient to prevent it from accidental or involuntary movement. Proper securing of the projector is the responsibility of the installer and user. The Projector are heavy, and can cause severe damage and injuries if falling.
  • Page 38 4. Physical Installation Parameter Value Thread size Length 18mm max 18mm max Where possible, the projector lens must be positioned exactly perpendicular to the center of the screen. Use the projector offset (lens shift), rather than physical angling, to correct any off-center positioning. AUTION The position and physical securing of the projector must be sufficient to prevent it from accidental or involuntary movement.

  • Page 39: Projector Safe Attachment Points

    4. Physical Installation If applied in a motion rig, care must be taken to stay within the environmental specifications for vibration and shock. It may also be necessary to use additional, custom means to stabilize the projection lens to make sure that the projected image remains in position and properly focused.

  • Page 40: Throw Distance

    4. Physical Installation Throw distance Calculate the installation throw distance Throw is the distance (D) measured from your projector lens to the screen. To calculate the throw distance for an installation, you will need two pieces of data: the selected lens throw ratio (L) and the horizontal width (W) of the screen. For example, if the screen width (W) is 2.4 meters and the projector lens has a throw ratio (L) of 0.99:1, then the throw distance (D) will be 2.38 meters.
  • Page 41 4. Physical Installation Throw distance, FLD+ WQXGA / 4K UHD Image height Image width Screen diagonal 14.00 12.00 7.50 7.00 13.00 11.00 6.50 12.00 10.00 6.00 11.00 9.00 5.50 10.00 5.00 8.00 9.00 4.50 7.00 8.00 4.00 6.00 3.50 6.00 5.00 3.00 5.00...

  • Page 42: Scheimpflug (Boresight) Adjustment

    4. Physical Installation Throw distance, FLD+ WUXGA Image width Screen diagonal 14.00 12.00 7.50 13.00 7.00 11.00 6.50 12.00 10.00 6.00 11.00 9.00 5.50 10.00 5.00 8.00 9.00 4.50 7.00 8.00 4.00 6.00 3.50 6.00 5.00 3.00 5.00 2.50 4.00 4.00 2.00 3.00...

  • Page 43: Scheimpflug Adjustment Procedure

    Preparation 1. Prepare the test area. Barco recommends a projector-screen distance of 2 metres be used for all Scheimpflug adjustments. Verify that the throw ratio of the installed lens matches the requirements of the installation area (projection distance and screen size).
  • Page 44 4. Physical Installation Image 4-8 2. Adjust the left side Scheimpflug adjustment screw (reference 1) until the test image in the top right side of the screen is in focus. Use a size 4 hex key to do this. Note: This process may cause the other areas of the image to slide out of focus. This is totally normal. Image 4-9 3.

  • Page 45: Getting Started

    5. Getting started 5. GETTING STARTED About this chapter This chapter describes how to set up and optimize your projector setup when the physical installation process is complete. Overview • Projector source and control connections • Power up the projector •...

  • Page 46: Display Port 1.2

    5. Getting started Parameter Value Max. pixel rate 330 MHz (dual link), 165 Mhz (single link) Progressive Scan format Max. input data resolution 1920x1200 60Hz (Single link), 2560x1600 60Hz (Dual Link).1920x2400 @60Hz Bit depth 8 bit EDID Supported HDCP Supported 5.1.2.2 Display Port 1.2 Specifications...

  • Page 47: Sdi

    5. Getting started 5.1.2.4 3G-SDI Specifications Parameter Value Standard SMPTE 424M-2006 10bit level A Connectors 1x) BNC 75 ohm type IEC 60169-8, Amendment 2 1997, A Bandwidth >3 GHz Return loss >10dB at 3GHz Impedance 75 ohm resistive 5.1.2.5 HDBase T Specifications Parameter Value...

  • Page 48: Lan/Ethernet

    5. Getting started 5.1.3.1 RS-232 Specifications Parameter Value RS-232 connector 1 female DB9 connector (RS232-in) for projector control and debug 5.1.3.2 LAN/Ethernet Specifications Parameter Value Ethernet connector 1 RJ45 Connector for projector control (not content) Protocols DHCP, TCP/IP, UDP/P Speed 10/100 Mbit/1000Mbit 5.1.3.3 USB-A port...

  • Page 49: Power Modes

    5. Getting started Power modes General The table below details the F70 power modes. Mode Description Normal Projector is booted up and the light source is on Ready Projector is booted up but the light source is off ECO Standby Light source is switched off and projector electronics are powered down Customize projector settings...
  • Page 50 5. Getting started Press the OSD button to deactivate the OSD on the screen. Only critical warnings will be displayed. Some menu options are reserved for Power or Service Users; these will be grayed out and not available for selection when in standard user mode. To access these features, enter your Power or Service Code in the Service Menu or contact your support representative for more information.

  • Page 51: Source Menu

    6. Source menu 6. SOURCE MENU About the Source menu This menu is used to select, review and configure sources into the projector. Enables either via the source menu, or the shortcut key. By navigate through the Home/Source menu, it will be visible also on the OSD. By using the shortcut key, the menu occurs only on the LCD display.
  • Page 52 6. Source menu 3840 1920 1920 2400 2400 Dual Link DVI 2 Dual Link DVI 1 Image 6-1 An example of this is feeding a WQXGA (3840 x 2400)source with 1920 x 2400 source resolutions at each DVI-I interfaces. For Images to be displayed in this mode, the resolution must be the same on both channels Signal source setup.

  • Page 53: Image Menu

    7. Image menu 7. IMAGE MENU Overview • IR / Night vision functionality • Output Resolution • Contrast • Brightness • Saturation • Advanced image adjustments IR / Night vision functionality About IR / Night Vision functionality is only available for the FS 70 Projector.. The IR/Night Vision functionality is implemented in the FS70 projector.

  • Page 54: Output Resolution

    7. Image menu Image 7-2 Enable the Laser slider, and move the slider to the left by the arrow keys to almost 0% to reduce the laser LED intensity. (Daylight visibility). By this, the IR LED will be dominant, and the image on the screen will be visible with the night googles. Put on the night googles, and adjust the IRLED slider to obtain an optimal night vision rendering.

  • Page 55: Saturation

    7. Image menu Default value: 0.00 Saturation About Image / Saturation Saturation levels impact on the white levels and the intensity of the color display; the higher the value, the more vivid the color display will be. Available range: —1.00 to 1.00 Default value: 0.00 Advanced image adjustments About...
  • Page 56 7. Image menu 601–426 F70 SERIES 16/06/2017...

  • Page 57: Installation Menu

    8. Installation menu 8. INSTALLATION MENU Overview • Lens • Orientation • Warp • Warping – Bow • Basic Blend • Illumination Lens About Installation / Lens Manage lens functions: focus, zoom, shift, and iris. All changes occur dynamically. Focus and zoom Installation / Lens / Zoom Use the navigational arrows, up and down, to adjust zoom.

  • Page 58: Warp

    8. Installation menu Warp About Image warping is the process of digitally manipulating an image to compensate for the distortion of the screen, typically by non perpendicular alignment of the projector versus the screen. The image will then typically occur as shown inimage 8-2. While an image can be transformed in various ways, pure warping doesn’t affect the colors.

  • Page 59: Warping - Bow

    8. Installation menu Image 8-3 Warping – Bow About bow adjustment A bow distortion can be adjusted so that a normal image is displayed. Positive adjustments introduce more outside bow distortion. Negative adjustments introduce more inside bow distortion. Image 8-4 Bow distortion How to adjust 1.

  • Page 60: Basic Blend

    8. Installation menu Image 8-5 Installation menu, Warp 2. In the Warp menu, select Bow. Image 8-6 Warp menu, Bow A check symbol at the bottom right corner indicates that the bow function is activated. 3. To enable Bow correction, make sure the Bow slider is set to On. The slider is enabled when set to the right and when it is colored blue.
  • Page 61 8. Installation menu Width, Projector 1 Width, Projector 2 Picture frame Picture frame Projector 1 Projector 2 Overlap / Blend Zone Image 8-8 How to set up the system In this chapter, the setup procedure for the projectors is explained, but a setup procedure must also be performed for the picture source.

  • Page 62: Illumination

    8. Installation menu Enable Show lines Top offset Top height Right offset Left offset Left width Right width Bottom height Bottom offset Image 8-9 How to calibrate the Blend Zone with pictures side by side. Use the up/down/left/right arrow key on the remote control or key pad to navigate in the menu. For Blend adjustment in side by side configuration, the steps are as follows, starting with the left picture: •...

  • Page 63: Settings Menu

    9. Settings menu 9. SETTINGS MENU Overview • Communication • Apply a menu theme • Service Communication About System settings / Communication Current Ethernet communication information is given, and can be edited in this menu. Default mode for Ethernet communications are: Automatic ON / IP Version 4 DHCP mode. Setting Description Automatic...
  • Page 64 9. Settings menu 601–426 F70 SERIES 16/06/2017...

  • Page 65: Status Menu

    10. Status menu 10. STATUS MENU Overview • Source status • Product • Illumination • Communication 10.1 Source status About Home / Status / Source Displays active source information: This is a status menu only. No changes can be made to settings from this menu. 10.2 Product About Home / Status / Product...
  • Page 66 10. Status menu Lists the projector IP address. 601–426 F70 SERIES 16/06/2017...

  • Page 67: Reset Menu

    11. Reset Menu 11. RESET MENU Overview • Factory Reset • Selectable Reset 11.1 Factory Reset Reset Enter Reset menu, Select Factory Reset, and confirm. This will turn back all settings to factory standard. 11.2 Selectable Reset Reset Enter the Reset Menu, Select the items to be reset, and Confirm. This will turn the selected items to factory standard. 601–426 F70 SERIES 16/06/2017...
  • Page 68 11. Reset Menu 601–426 F70 SERIES 16/06/2017...

  • Page 69: User Maintenance

    • Go to www.barco.com and select your product. All available firmware downloads are filed under the Technical Downloads tab. Download the firmware. Extract and save the file to a USB stick with FAT file system. Use the eject function on your PC to •...
  • Page 70 12. User Maintenance 601–426 F70 SERIES 16/06/2017...

  • Page 71: Cleaning The Projector

    13. Cleaning the projector 13. CLEANING THE PROJECTOR 13.1 Projector lenses General guidelines for cleaning projector lenses Blow off dust with clean compressed air (or pressurized air cans) . Use lens cleaner and a clean lens cleaning cloth to remove the dust and contamination. Wipe in broad strokes, in one direction only.
  • Page 72 13. Cleaning the projector 601–426 F70 SERIES 16/06/2017...

  • Page 73: Technical Specifications

    14. Technical Specifications 14. TECHNICAL SPECIFICATIONS About The information in this section is subject to changes without any notice. For current technical information, visit the product website, or contact your sales support representative. 14.1 F70 — 4K6C F70 — 4K6C Projector type 1DLP laser phosphor Resolution...
  • Page 74 Power cord, wireless remote control Standard accessories Certifications CE, FCC Class A and cCSAus Warranty Limited 3 years parts and labor. Extendable up to 5 years Notes * SW upgradable. Please contact an authorized Barco representative for details. 601–426 F70 SERIES 16/06/2017...
