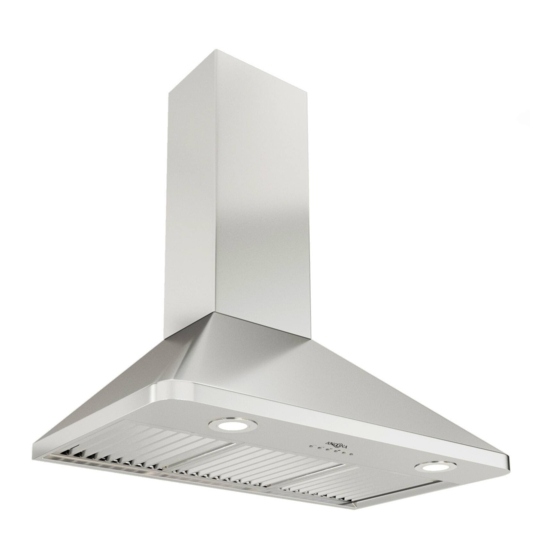

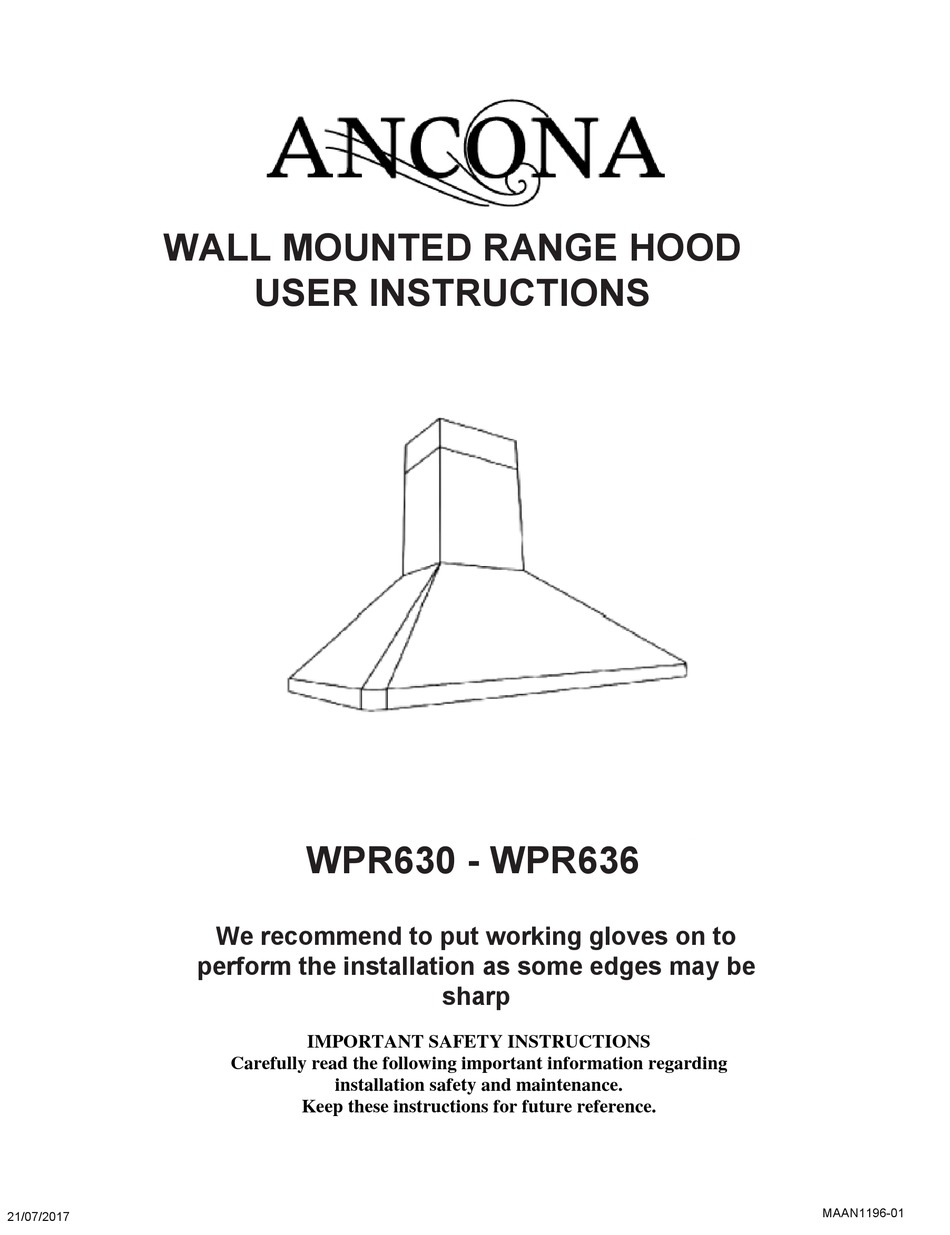

WALL MOUNTED RANGE HOOD
USER INSTRUCTIONS
WPR630 - WPR636
We recommend to put working gloves on to
perform the installation as some edges may be
sharp
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the following important information regarding
installation safety and maintenance.
Keep these instructions for future reference.
MAAN1196-01
21/07/2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ancona WPR636
Summary of Contents for Ancona WPR636
- Page 1 WALL MOUNTED RANGE HOOD USER INSTRUCTIONS WPR630 - WPR636 We recommend to put working gloves on to perform the installation as some edges may be sharp IMPORTANT SAFETY INSTRUCTIONS Carefully read the following important information regarding installation safety and maintenance.
-
Page 2: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 3 • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
- Page 4 Parts Supplied :...
- Page 5 Chimney- • Vent system must terminate to the outside mounting (roof or side wall). bracket Maximum ceiling • DO NOT terminate the vent system in an clearance 110" at attic or other enclosed area. Upper 30"...
-
Page 6: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separate- ly) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 7: Venting Methods
Venting methods: • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. -
Page 8: Electrical Requirements
Electrical Requirements : IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility: To contact a quali ed electrical installer. If codes permit and a separate ground wire is used, it is recommended that a quali ed electrician determine that the ground path is adequate. - Page 9 Preparation: Advanced Preparations: • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12. • Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (120-Volt, 60Hz, AC only) and turn on the range hood.
-
Page 10: Installation
Installation: Installations (refer to Page 4 for parts): 1. Measure the distance between stove top and the bottom of range hood. A distance of 24” to 30” is recommended with a minimum of 30” for gas stove tops. 2. Using references in Height & Clearance on Page 5 and Measurements and Diagrams on Page 16, mark the leveling point of the hood. - Page 11 Installation (Continued): 8. Connect the range hood to a designated standard outlet (120-Volt, F F i i g g u u r r e e 8 8 60Hz, AC only) or cut off the plug and connect three wires (black, white and green) to house wires and cap with wire connectors.
-
Page 12: Range Hood Operations
Range Hood Operations: Control Panel Layout and Buttons Configurations: LED Light LED Speed Indicator Indicators Power Control Light Control Speed Control (On/Off) This range hood is equipped with six electronic controls, oversized powerful centrifugal squirrel cage motor with stainless steel baffle filters and spacers, two bright 3 W LED lights. The six electronic buttons control the intensity of the Lights, Speeds (Quiet, Low, Medium and High) and Power (On/Off). - Page 13 Range Hood Operations (Continued): Control Panel Layout and Buttons Configurations: Quiet Medium High Speed Speed Speed Speed LED Light LED Speed Indicator Indicators Light Control Power Control (On/Off) • During this 3-minutes delay, changing speeds will not affect the countdown. Immediate Power-off •...
-
Page 14: Troubleshooting
Troubleshooting 1. If the range hood or LED light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 15: Specifications
Use and Care Information: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. - Page 16 Measurements and diagrams: Instal at lation ion Over Over vi view ew: :...
- Page 17 • All measurements in parenthesis are in centimeter. • All inch measurements are converted from centimeters, thus inch measurements are estimated. Overall:...
- Page 18 • All measurements in parenthesis are in centimeters. • All inch measurements are converted from centimeters, thus inch measurements are estimated. Overall without Chimney:...
- Page 19 Hood-mounting Bracket: Circuit Diagram:...
-
Page 20: Range Hood Assembly
Range Hood Assembly: Description Description Hood Casing Control Hood-Mounting Bracket LED Light Power Cable Light Panel Top Panel Oil Tunnel Motor Baffle Filter (30-in: 2pcs / 36-in: 3pcs) Capacitor Chimney Set Control Bracket... -
Page 21: Electrical Assembly
Electrical Assembly: Description Description Screws (3/16” x 3/8”) Electrical Panel Electrical Box Cover Capacitor Processor Board Screws (3/16” x 3/8”) Screws (3/16” x 3/8”) LED Light Transformer Electrical Box Base... -
Page 22: Maintenance
Maintenance: SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •... - Page 23 Subject to the limitations, exclusions and disclaimers hereof, AMS warrants exclusively to the original purchaser (the “Purchaser”) of this Ancona Range hood product (the “Product”) that it shall be free from defects in material or workmanship (the “Limited Product Warranty”). The duration of the Limited Product Warranty is 12 months from the date of original purchase (the “Warranty Period”).
