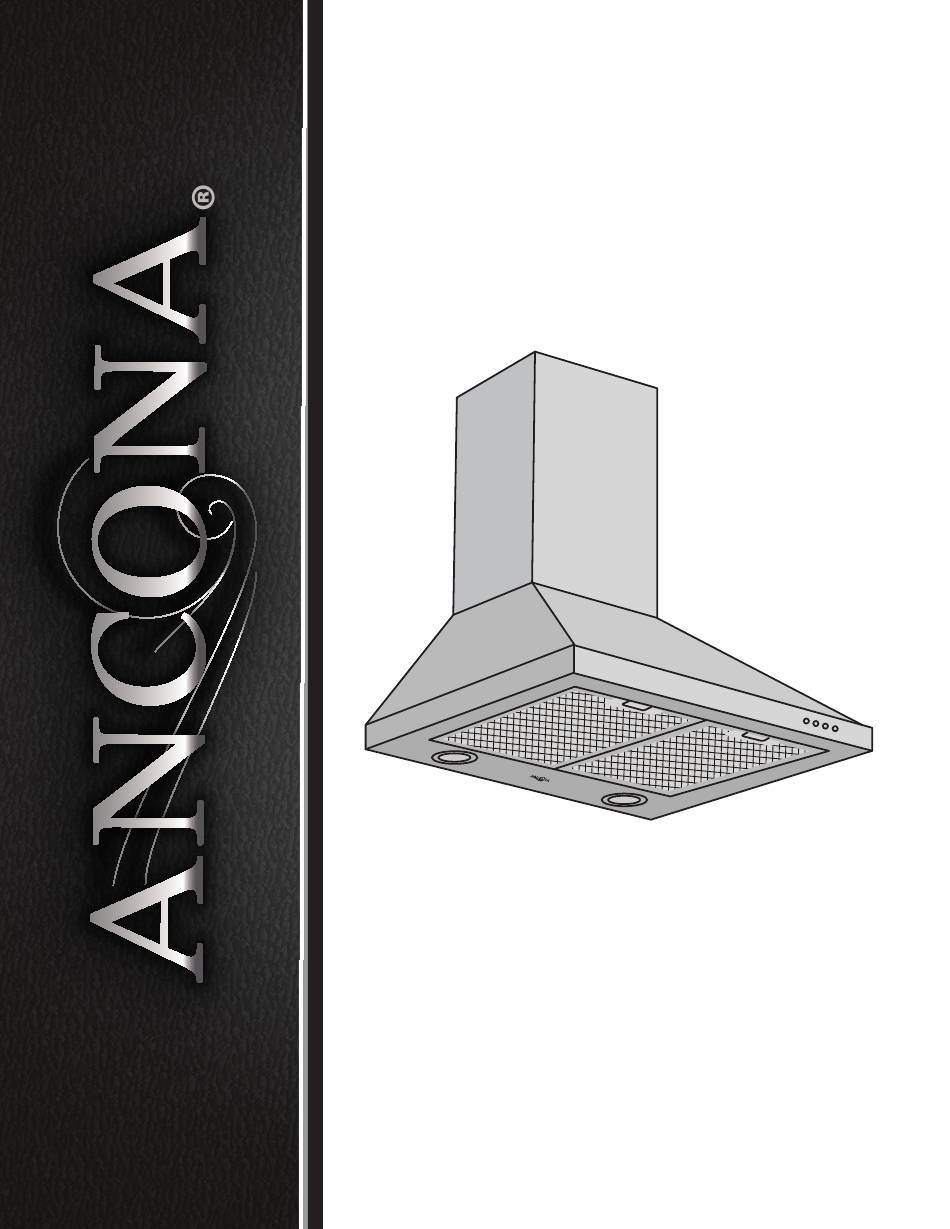

- Page 1 Range Hood WPP424 User Manual Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1166-01 2019-03-29...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 9 to 15. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Mounting Brackets ..........................8 Installation ............................9 Step 1 - Read the Safety Instructions .................... 9 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Main Housing 2 Filters Lower Chimney Damper Hood Mounting Bracket Upper Chimney Bracket Lower Chimney Bracket Upper Chimney 10 + 1 Screws Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. -
Page 7: Range Hood Dimensions
Range Hood Dimensions 17.2 cm (6.7 in.) 22.2 cm (8.75 in.) 43 - 84 cm (16.9 - 33 in.) 43 cm (16.9 in.) Ø15 cm 6 cm (5.9 in.) (2.3 in.) 24.5 cm (9.6 in.) 3.5 cm (1.3 in.) Specifications Body Design Stainless Steel Power Rating... -
Page 8: Mounting Brackets
Mounting Brackets Upper Chimney Bracket 4.96” (126 mm) 1.3” (35 mm) 8.58" (218 mm) Lower Chimney Bracket 7.99” (203 mm) 4.72” (120 mm) 1.5” (38 mm) 8.58” (218 mm) Mounting Bracket Hook 7.8” (200 mm) 3.9” (100 mm) 3.9” (100 mm) ”... -
Page 9: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools •... -
Page 10: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. If you require a ductless installation, please visit anconahome.com to purchase a recirculation kit. • For the most efficient and quiet operation: IMPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). vertically through the roof through 6 in. - Page 11 Installation IMPORTANT: electric cook tops and minimum of 30-inch (76.2 cm) • A minimum of 6 in. (15.3 cm) round or 3-1/4 x 10 in. (8.3 for gas stove tops and no higher than 30-inch (76.2 cm) cm x 25.4 cm) rectangular duct must be used to maintain for electric cook tops.
-
Page 12: Step 6 - Preparations
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the center line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the ceiling or wall. -
Page 13: Step 9 - Venting
Installation STEP 9 Venting • Fix the damper on the top vent of hood with 4 screws. • If ventilation system is equipped with an external air duct with a different diameter, apply a reduction fitting. However, for maximum performance and safety, a 6 in. round ducting is recommended. Fig #2 STEP 10 Mount Range Hood onto Wall... -
Page 14: Step 13 - Install Chimney
Installation IMPORTANT: • Observe all governing codes and ordinances. • It is the customer’s responsibility to contact a qualified electrical installer. • If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. • DO NOT ground to a gas pipe. • Check with a qualified electrician if you are not sure that the range hood is properly grounded. • DO NOT have a fuse in the neutral or ground circuit. IMPORTANT: Save this Installation Guide for electrical inspector’s use. GROUNDING INSTRUCTIONS: • This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. -
Page 15: Step 14 - Install Filters
Installation STEP 14 Install Filters To install filters for the following four steps (See Figure #7): • Angle the filter into slots at the back of the hood. • Push the button on handle of the filter. • Release the handle once the filter fits into a resting position. • Repeat to install all filters. -
Page 16: Operation
Operation Increase Decrease Timer Light Speed Speed Power Settings Lights Press the button once and the motor starts to Press the light button to turn LED lights on and operate at Low speed. off. Press the button and the motor will reach Medium speed. -
Page 17: Maintenance
Maintenance Replacing the Light Pucks IMPORTANT: ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN PANEL BEFORE CARRYING OUT ANY OPERATION ON THE APPLIANCE. Make sure the range hood is unplugged or turn OFF Replace with a 10.2 Volt, 2.5 Watt max, LED lights. breaker. -
Page 18: Range Hood Assembly
Range Hood Assembly Number Part Upper chimney Lower chimney Upper chimney bracket Lower chimney bracket Hood mounting bracket Power cord Round duct or valve (Exhaust) Housing assembly Bracket of switch Switch plastic box Switch board Rear bracket Transformer box Transformer Cover of transformer box Base of transformer box Capacitor... -
Page 19: Assembly
Assembly Assembly Circuit Diagram Circuit Diagram Capacitor 120V 60Hz Main PCB Driver Blower Assembly Blower Assembly Number Part Number Part Grid Grid Motor Motor Impeller Impeller Blower Blower Wind drum inlet Wind drum inlet Electrical Assembly Electrical Assembly Number Part Number Part Junction box cover... -
Page 20: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 21 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 888-998-2011 Website: www.mrappliance.com MAAN1166-01 © 2019 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 21 —...
- Page 22 Notes — 22 —...
