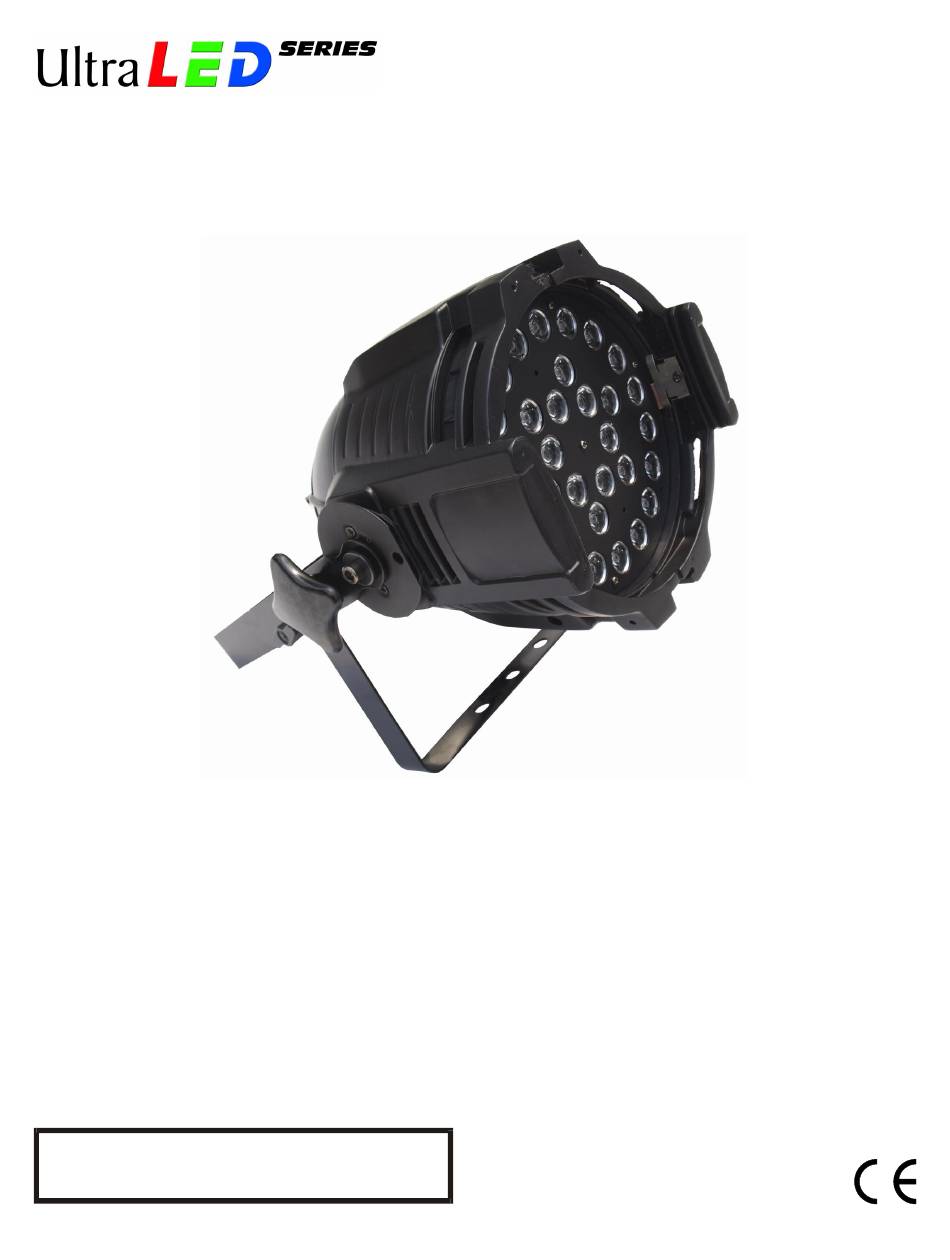

- Page 1 Information specifically for: DL-FLEXILED3C30/B - Black This manual contains important information. Please read before operating fixture.
- Page 2 If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment. All shipping will be paid by purchaser. This warranty does not cover lamps, fuses,...
-
Page 3: Table Of Contents
Table of Contents Specifications ..........................4 Unpacking ...........................5 Power............................5 Mounting .............................5 Basic Reference..........................6 Setup and Operation Modes (LCD Display)................6 Control Panel Menu ........................7 DMX-512 Control.........................7 DMX Data Connection ......................8 Data Terminator ........................8 Adapter 5-to-3 pin ........................8 DMX Start Address ........................9 DMX Channel Assignments .......................9 4 Channel Mode........................9 5 Channel Mode........................9 6 Channel Mode........................10... -
Page 4: Specifications
Specifications Fixture Overview • RGBW color mixing with intensity and strobe effects • 30 x 3 watt LED - 8 Red, 8 Green, 8 Blue and 6 White • Beam Angle – 15° • Rugged Aluminum Housing • Operating modes: DMX, Scene Memory, Chases, Sound Active, Master/Slave •... -
Page 5: Unpacking
Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection. -
Page 6: Basic Reference
Basic Reference Power/Data Indicator Digital LCD Display Audio Indicator Menu Setting Buttons Microphone Power Input Cable Fuse Holder Female XLR 5-pin Male XLR 5-pin Data Output Cable Data Input Cable Setup and Operation Modes (LCD Display) This fixture includes a filter frame. This frame can be used to hold a gel or filter to better assist in controlling your light beam. -
Page 7: Control Panel Menu
Control Panel Menu Use the fixture’s Control Panel to access the Control Menu. The MENU Key puts the fixture in the settings menu itself and also acts as a BACK key between options, UP/DOWN moves through the menu options and allows the assignment of a value. The ENTER key is used to enter that option and confirms the selection once the UP/DOWN is used to adjust the value. -
Page 8: Dmx Data Connection
Note: For DMX to operate on this unit, all STANDALONE options must be set to Off. DMX Data Connection This fixture uses 5 pin XLR type connectors and shielded twisted pair cable approved for EIA-422/EIA485 use. Fixtures are connected in Daisy Chain topography: Connection is made from the controller to the DMX-IN of the first light, then from the DMX-OUT to the DMX-IN of the next light and so on. -
Page 9: Dmx Start Address
DMX Start Address To place the fixture in DMX mode, press the MENU key, then using the UP/DOWN keys get to the Address Menu Option. Press ENTER and using the UP/DOWN buttons, set the start address number for this particular unit in the DMX chain. Once selected, press ENTER again to save your selection. -
Page 10: Channel Mode
6 Channel Mode Channel Function Red (0-255) Green (0-255) Blue (0-255) White (0-255) Master Dimmer (0-255) Strobe (0-255) 7 Channel Mode Channel Function Master Dimmer (0-255) Red (0-255) Green (0-255) Blue (0-255) White (0-255) No Function 5-84 Color Macro 85-169 Color Snap 170-255 Color Fade Strobe (0-255) -
Page 11: 4 : Blue
CH 4 : Blue Sets relative intensity of Blue. CH 4 – Blue Actual value is subject to Master DMX Value Function Dimmer channels. The Color No Output Macro/Scroll Channel will 5-255 Intensity - Off to Full On override this channel. CH 5 : White Sets relative intensity of White. -
Page 12: 7 : Strobe
130-134 Color Scroll Snap Speed 10 135-139 Color Scroll Snap Speed 11 140-144 Color Scroll Snap Speed 12 145-149 Color Scroll Snap Speed 13 150-154 Color Scroll Snap Speed 14 155-159 Color Scroll Snap Speed 15 160-164 Color Scroll Snap Speed 16 165-169 Color Scroll Snap Speed 17 (Slowest) 170-174... -
Page 13: Maintenance
Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance. -
Page 14: Troubleshooting
Data Negative (S- or Cold) are common in the audio industry. In either case, pin numbers are the same and Data Positive (S+ or Hot) carry the same signals. n/c (not used) n/c (not used) 10900 Palmbay Drive • Orlando, FL 32824 U.S.A. www.techni-lux.com...
