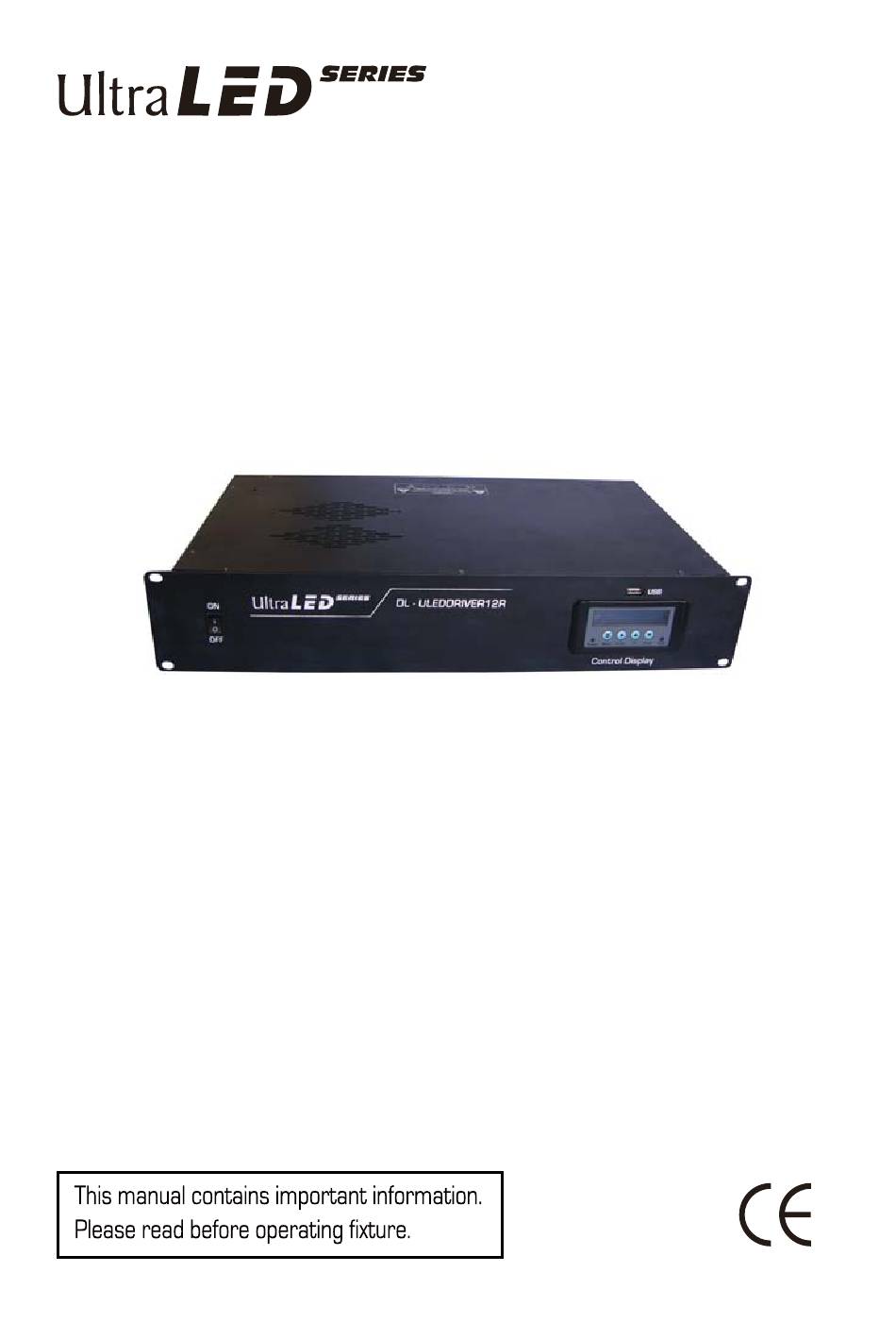

- Page 1 Information specifically for: DL-ULEDDRIVER12R...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT INFORMATION................UNPACKING......................SAFETY INSTRUCTIONS..................INTRODUCTION....................FEATURES......................SPECIFICATIONS....................PRODUCT VIEW....................SETUP........................Installation....................... Unit Linking....................DMX Background.................... Adapter 5-to-3pin..................... AC Power......................OPERATING INSTRUCTIONS................Menu Map....................... System Setup....................System mode....................DMX mode..................... Auto mode..................... Sound mode..................Master/Slave..................Fuse Replacement....................Specifications...................... -
Page 3: Important Information
DL-ULEDDRIVER12R... -
Page 4: Unpacking
UNPACKING Immediately upon receipt, carefully unpack and inspect the unit to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, retain all packing material for inspection and notify the shipper immediately. -
Page 5: Introduction
▪ Make sure power cord is never crimped or damaged. INTRODUCTION DL-ULEDDRIVER12R is a 12 output power and control unit for the UltraLED series range of products. It is compact and and easy to use. Please read this user guide thoroughly before operation. -
Page 6: Unit Linking
Unit Linking DL-ULEDDRIVER12R is designed for the UltraLED series range of products. To run your light shows of one or more units using a DMX-512 controller or to run synchronized shows on two or more units in master/slave operating mode, you need DMX cables to link the units from DMX IN to DMX OUT. -
Page 7: Adapter 5-To-3Pin
AC Power The unit is designed to either work on 120vAC/60hz or 240vAC/50hz. However, the input voltage MUST be selected on the back of the unit, prior to applying power to the mains. Warning: The unit must be connected to a circuit with a suitable Earth Ground. Caution: Wrong voltage will cause permanent damage to the unit which is not covered in warranty. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS This Driver offers 4 working modes: Auto, Sound, DMX and Master/Slave mode 1. Connect the unit to mains supply. 2. Turn on power switch and and wait a few seconds until LCD display reads: 3. Use buttons on Control Panel to set up and operate. UltraLED System Ready Menu Map... -
Page 9: System Setup
► System Setup [new software] This mode is designed for factory to upload software through USB port. Your product has been tested before shipment. Check with local distributor or dealer’s web site if updated software is available. ► System Mode [ xxx ] Press MENU button until display reads “System Mode [XXX]”, then use UP/DOWN button to scroll through”... -
Page 10: Auto Mode
► Auto Mode In this mode, you can select one of 18 preset static colors or 6 color-changing/cross fade/chasing programs to run the whole system. 1. Press Menu button until display reads “System Mode [ xxx ]”, use Up/Down button to select System Mode [Auto] and press Enter button. -
Page 11: Specifications
SPECIFICATIONS ▪ Output Port 1-8: 48V DC 350mA, 36W / Port Max. Port 9-12: 48V DC, 144W / Port Max. ▪ Total load (12 ports): 450W Max. ▪ Power Input: AC 120 60Hz / 240V 50Hz switchable ▪ Size: 19" x 9.9" x 3.46" (2U Rack) 482mm x 252mm x 88mm ▪... - Page 12 10900 Palmbay Drive • Orlando, FL 32824 U.S.A. Voice: 407-857-8770 Fax: 407-857-8771 www.techni-lux.com...
