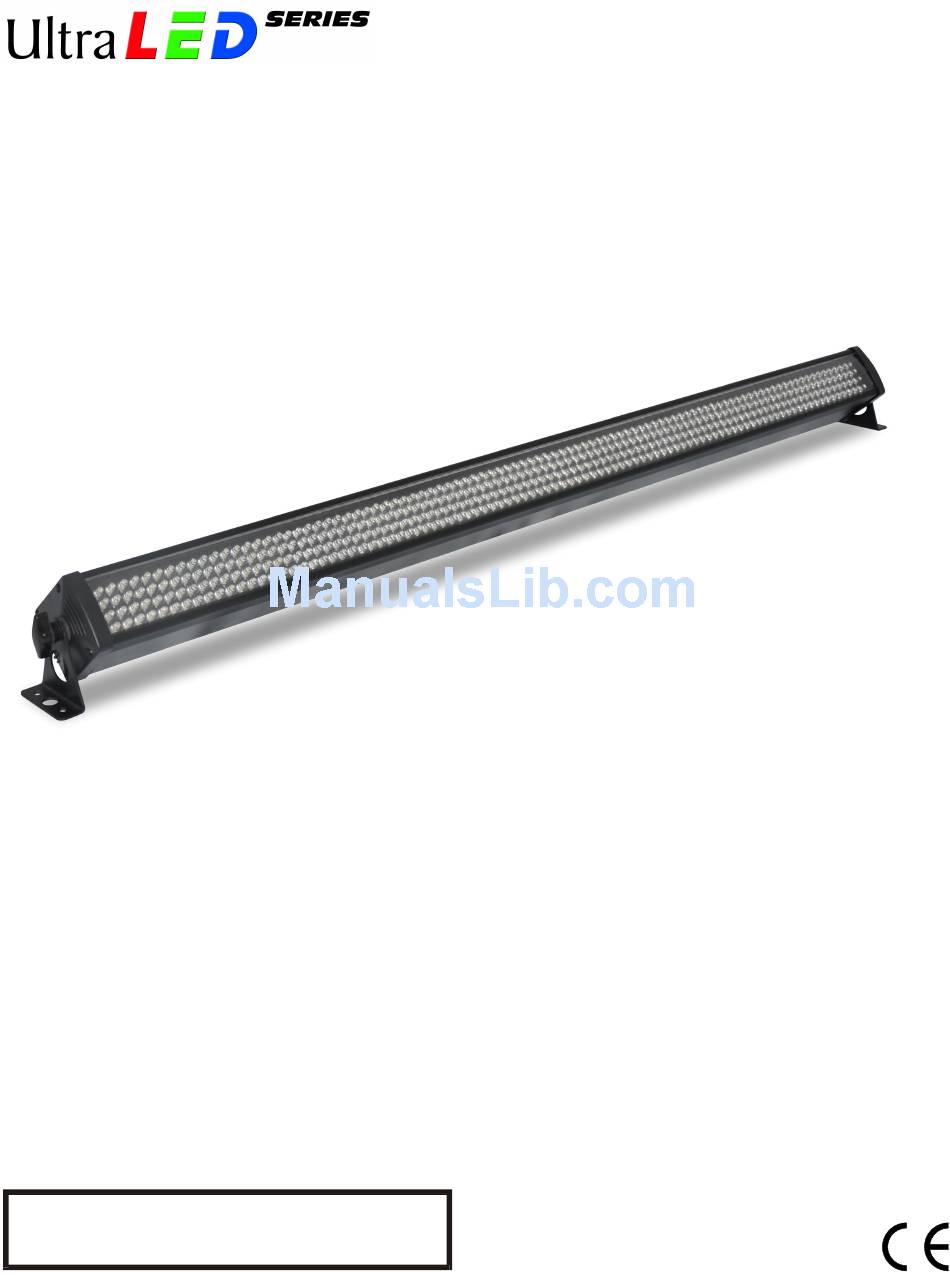

- Page 1 Information specifically for: DL-BAR10C5MM v1.0 This manual contains important information. Please read before operating fixture.
- Page 2 Copyright 2010 Techni-Lux, Inc.
-
Page 3: Important Information
If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment. All shipping will be paid by purchaser. This warranty does not cover lamps, fuses,... -
Page 4: Table Of Contents
Table of Contents Specifications..........................5 Fixture Overview ........................5 Physical ..........................5 Environmental........................5 Electrical ..........................5 Control ..........................5 Optics............................ 5 Rigging..........................5 Unpacking........................... 6 Power ............................6 Mounting............................. 7 Basic Reference ......................... 7 Setup and Operation Modes (LCD Display) ................7 Control Panel Menu Navigation.................... -
Page 5: Specifications

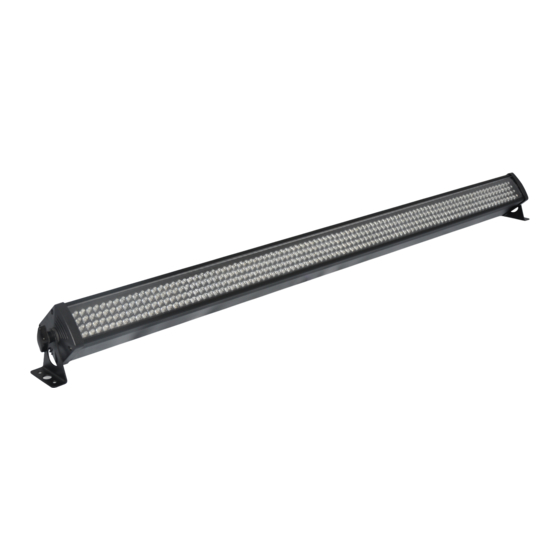

Specifications Fixture Overview • RGB color segments with intensity and strobe effects • 384 ultra bright 5mm LEDs: 128 red, 128 green, 128 blue • Long Life LED light source • Controllable as one bar or in 8 sections • Operating modes: DMX, Color Changing, Sound Active, Master/Slave •... -
Page 6: Unpacking
Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection. -
Page 7: Mounting
Mounting Always consult a qualified professional when rigging. Consider access for routine maintenance when selecting a mounting position. This fixture may be mounted in any position provided there is adequate room for movement and ventilation. Mount the fixture securely using proper hardware, clamps and a safety cables. -
Page 8: Control Panel Menu Navigation
Control Panel Menu Navigation... -
Page 9: Menu Definitions And Functions
Menu Definitions and Functions Note: To operate using DMX requires the use of a DMX output controller of your choice that is compatible with this type of LED unit. DMX and master/slave modes require data cables to be connected between fixtures. Manual and some stand- alone modes do not require data cables for independent use of the fixture Auto Run Operation In Auto Mode you may select one of the three built-in programs. -
Page 10: Dmx-512 Control
DMX Operation The DMX operation mode allows you to control the bar using a Addr Chnd standard DMX controller. In this mode you set the start address at which the fixture will respond to the controller on. Also the channel assignment mode to be used is set. -
Page 11: Data Terminator
Data Terminator A Data Terminator can be connected to the DMX-OUT of the last fixture to reduce the effects of signal noise; it is not required for all installations. To make a Terminator, connect a 120-ohm ¼ watt resistor across pin 2, Data Negative (S-) and pin 3, Data positive (S+). -
Page 12: Dmx Channel Overview
DMX Channel Overview This fixture features 6 different DMX Channel modes. A 3, 5, 8, 14, 24, and 26 channel mode. Using the 3 channel mode provides the least granular control, and relatively uses the least number of DMX channels. The different channel assignments and values are shown below in the following tables. -
Page 13: 26 Channels
26 channels : Bar is divided into 8 individual sections with 2 additional controls channels. 3,4,5 6,7,8 9,10,11 12,13,14 15,16,17 18,19,20 21,22,23 24,25,26 DMX Channel Table channel channel channel channel channel channel Functions mode mode mode mode mode mode Green Blue Green Blue... -
Page 14: Dimmer, Internal Programs And Function Dmx Values
Dimmer, Internal Programs and Function DMX Values Decimal Percentage Effect Feature 000 – 007 0% – 3% Dimmer 008 – 015 3% – 6% Strobe Effect 016 – 023 6% – 9% Internal Program 1 024 – 031 9% – 12% Internal Program 2 032 –... -
Page 15: Maintenance
Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance. -
Page 16: Troubleshooting
Data Negative (S- or Cold) are common in the audio industry. In either case, pin numbers are the same and Data Positive (S+ or Hot) carry the same signals. n/c (not used) n/c (not used) 10900 Palmbay Drive • Orlando, FL 32824 U.S.A. www.techni-lux.com...
