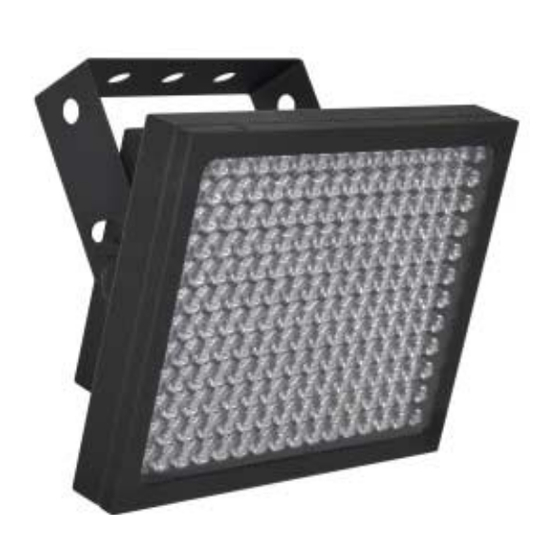

- Page 1 Information specifically for: DL-PANEL1-192U This manual contains important information. Please read before operating fixture.
- Page 2 If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment. All shipping will be paid by purchaser. This warranty does not cover lamps, fuses,...
-
Page 3: Table Of Contents
Table of Contents Specifications ..........................4 Unpacking ...........................5 Power............................5 Mounting .............................5 Basic Reference..........................6 Setup and Operation Modes ......................6 Stand-Alone Mode ........................6 DMX Controlling Mode ......................7 DMX-512 Control.........................7 DMX Data Connection ......................7 Data Terminator ........................8 Adapter 5-to-3 pin ........................8 DMX Start Address ........................8 DMX Channel Assignment ......................9 CH 1 : Dimmer ........................9 CH 2 : Macro ...........................9... -
Page 4: Specifications
Specifications Fixture Overview • Ultraviolet Blacklight output and strobe flash effects • 192 Ultraviolet 10mm LEDS • Medium flood UV wash beam angle of 25 degrees • Operating modes: DMX & Sound Active • DMX512 using 2 channels • DMX input/output via 3 pin XLR •... -
Page 5: Unpacking
Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection. -
Page 6: Basic Reference
Basic Reference Dip Switch 3 Pin Male XLR Data 3 Pin Female XLR Data Out Mounting Bracket Fuse Holder Power Input Cable Setup and Operation Modes The following refers to the different modes that are available on this fixture via the Dip Switch Settings. -
Page 7: Dmx Controlling Mode
DIP 5, 6, 7, 8: Set strobe flash speed from slow to fast by combining Dips 5-8 in the On position. Dip 5 On equals slow flash speed. Dips 5 and 6 On equals fast flash speed. Dips 5, 6, and 7 On equals faster flash speed. Dips 5, 6, 7, and 8 On equals fastest flash speed. -
Page 8: Data Terminator
Data Terminator A Data Terminator can be connected to the DMX-OUT of the last fixture to reduce the effects of signal noise; it is not required for all installations. To make a Terminator, connect a 120-ohm ¼ watt resistor across pin 2, Data Negative (S-) and pin 3, Data positive (S+). -
Page 9: Dmx Channel Assignment
Example2 Select Start Addresses for 4 fixtures each requiring 2 channels of DMX. For this example, start with the first unit set to the first possible Start Address = 1. This fixture occupies DMX channels 1 thru 2. The next DMX channel available for a Start Address is found by adding the previous fixture’s Start Address to its channel requirement: 1+2=3. -
Page 10: Maintenance
Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance. -
Page 11: Troubleshooting
Data Negative (S- or Cold) are common in the audio industry. In either case, pin numbers are the same and Data Positive (S+ or Hot) carry the same signals. n/c (not used) n/c (not used) 10900 Palmbay Drive • Orlando, FL 32824 U.S.A. www.techni-lux.com...
