Summary of Contents for Techni-Lux DL-LEDBANK4-3TC

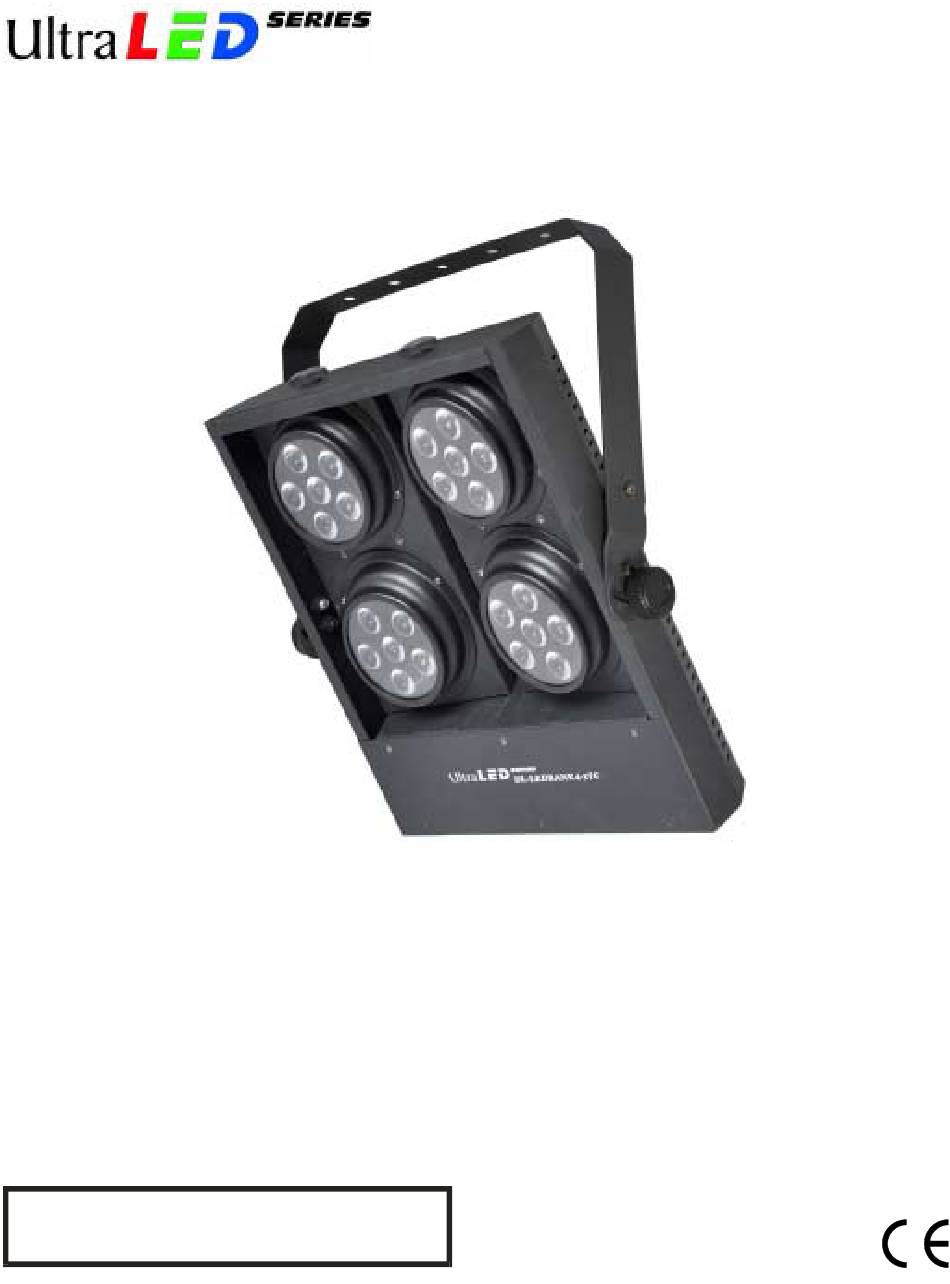

- Page 1 Information specifically for: DL-LEDBANK4-3TC v1.0 This manual contains important information. Please read before operating fixture.
- Page 2 If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment. All shipping will be paid by purchaser. This warranty does not cover lamps, fuses,...
-
Page 3: Table Of Contents
Table of Contents Specifications ..........................4 Unpacking ...........................5 Power............................5 Mounting .............................6 Basic Reference..........................6 Optional Mounting Yoke ..............Error! Bookmark not defined. Setup and Operation Modes (LCD Display)................7 Control Panel Menu & Operation Settings ................7 Built-in Program Chase Operation (P01-P14) ................7 Auto Run Operation ........................8 Slave Operation ........................8 Sound Active Operation ......................8 DMX Operation .........................9... -
Page 4: Specifications
Specifications Fixture Overview • 3 watt tri-chromatic RGB color mixing LED elements • 24 TriLEDs divided into 4 sections of 6 • Beam Angle – 25° • Operating modes: DMX, Auto Run, Chases, Sound Active, Master/Slave • Precise DMX control using 6, 9, 12, or 15 channels •... -
Page 5: Unpacking
Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection. -
Page 6: Mounting
Mounting Always consult a qualified professional when rigging. Consider access for routine maintenance when selecting a mounting position. This fixture may be mounted in any position provided there is adequate room for movement and ventilation. Mount the fixture securely using proper hardware, clamps and a safety cables. -
Page 7: Setup And Operation Modes (Lcd Display)
A program is a sequence of different steps that will be called up one after another in a continuous loop. With the DL-LEDBANK4-3TC fixture, you can select up to 14 different program chases. Each program is described in the table below. -
Page 8: Auto Run Operation
Speed 00-99 Strobe 00-99 Speed & Strobe adjustable P8 FLOW 3 Seven color relay chase in 1 direction Speed 00-99 Strobe 00-99 Speed & Strobe adjustable P9 FLOW 4 Seven color relay chase in 2 direction Speed 00-99 Strobe 00-99 Speed &... -
Page 9: Dmx Operation
DMX Operation The DMX operation mode allows you to control the bank using a standard DMX controller. In this mode you set the start address at which the fixture will respond to the controller on. Also the channel assignment mode to be used is set here. To address simply press the MODE button until the display shows DMX MODE. -
Page 10: Data Terminator
Data Terminator A Data Terminator can be connected to the DMX-OUT of the last fixture to reduce the effects of signal noise; it is not required for all installations. To make a Terminator, connect a 120-ohm ¼ watt resistor across pin 2, Data Negative (S-) and pin 3, Data positive (S+). -
Page 11: Dmx Channel Assignments
DMX Channel Assignments This fixture features 4 different DMX Channel modes. A 6, 9, 12, and 15 channel mode. Using the 6 channel mode provides the least granular control, and relatively uses the least number of DMX channels. The different channel assignments and values are shown below in the following tables. -
Page 12: Channel Mode
6 Channel Mode This 6 channel mode fully describes the function of channels 1,2,3. Reference this table for all other DMX channel modes. CH 1 CH 2 0-10 Blackout Blackout Blackout Blackout Blackout 11-21 Master dimmer Strobe (0-255) Green Blue (0-255) (0-255) (0-255) -
Page 13: Maintenance
Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance. -
Page 14: Troubleshooting
Data Negative (S- or Cold) are common in the audio industry. In either case, pin numbers are the same and Data Positive (S+ or Hot) carry the same signals. n/c (not used) n/c (not used) 10900 Palmbay Drive • Orlando, FL 32824 U.S.A. www.techni-lux.com...
