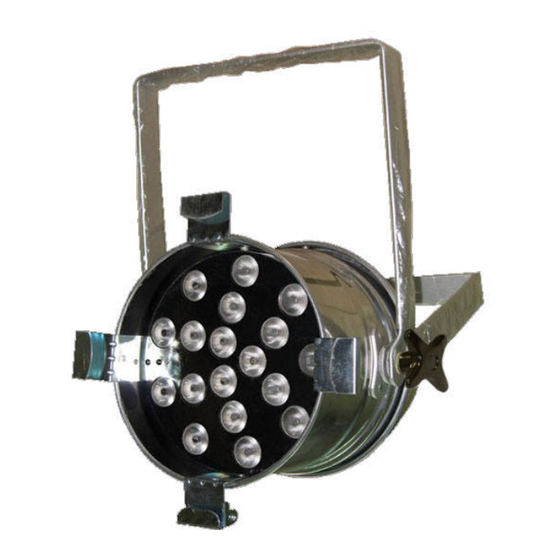

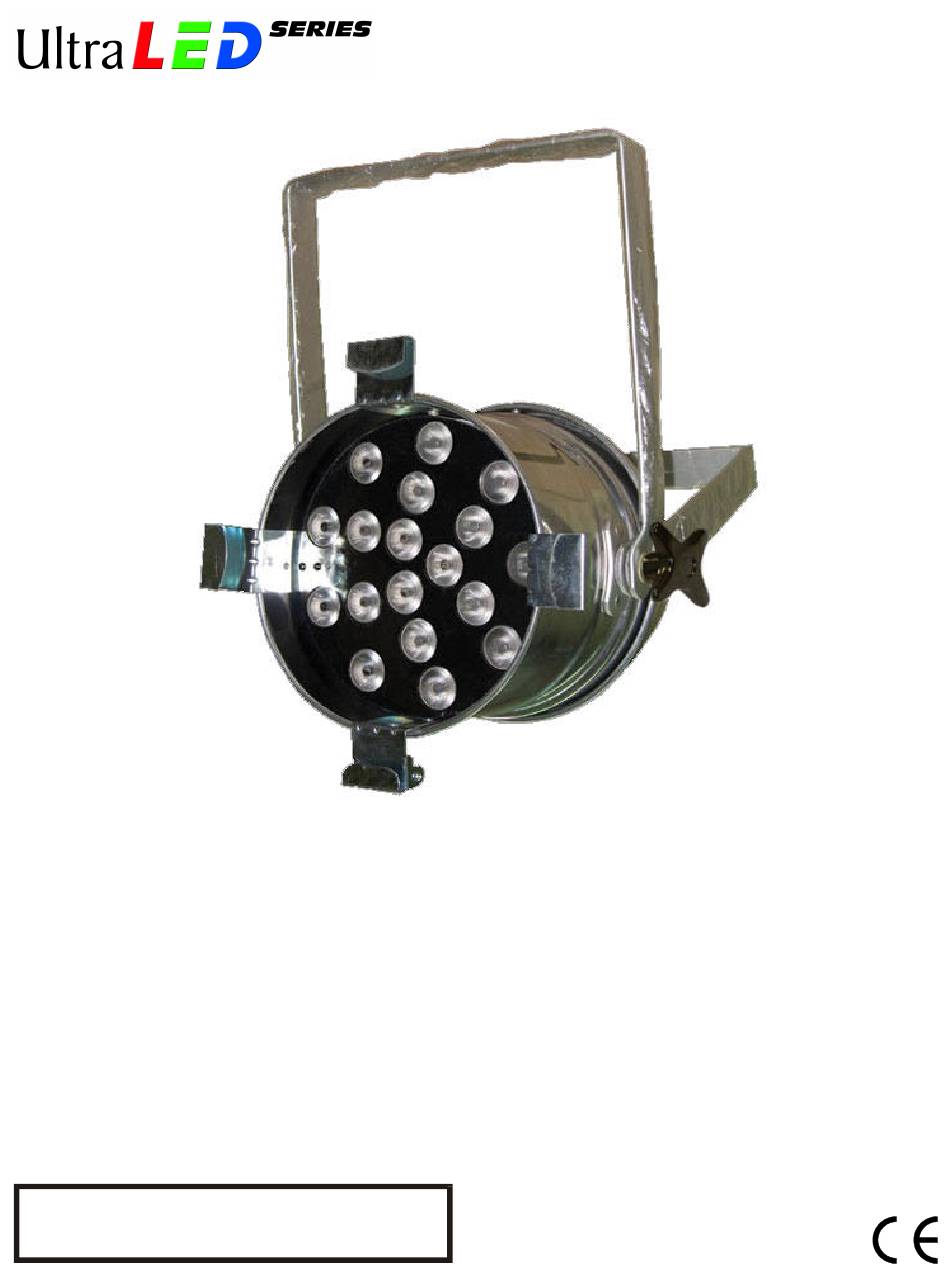

- Page 1 Information specifically for: DL-PAR64TC18/B - Black DL-PAR64TC18/P - Polished This manual contains important information. Please read before operating fixture.
- Page 2 If purchase date can not be provided, warranty period will start at manufacture date. It is the sole discretion of Techni-Lux to repair or replace parts or equipment. All shipping will be paid by purchaser. This warranty does not cover lamps, fuses,...
-
Page 3: Table Of Contents
Table of Contents Specifications..........................4 Unpacking........................... 5 Power ............................5 Mounting............................. 5 Basic Reference ......................... 6 Setup and Operation Modes (LED Display) ................6 Mode 1: Static Color Selection ....................7 Mode 2: Color Change Jump/Stepped ..................7 Mode 3: Color Fade........................7 Mode 4: Sound Active ...................... -
Page 4: Specifications
Specifications Fixture Overview • RGB color mixing with intensity and strobe effects • 18 RGB 3 in one, 1 watt LEDs (3 watts per tri-chromatic LED element) • Beam Angle – 25° • Light Weight Aluminum Housing • 7 Operating modes: DMX, Static Color, Color Changing, Color Fading, Sound Active, Master/Slave •... -
Page 5: Unpacking
Unpacking Immediately upon receipt, carefully unpack and inspect the fixture to verify that all parts are present and have been received in good condition. If any parts appear damaged from shipping or the shipping carton shows signs of mishandling, notify the shipper immediately. Retain carton and all packing material for inspection. -
Page 6: Basic Reference
Basic Reference Digital LED Segment Fuse Holder Display Menu Setting Buttons Female XLR 3-pin Data Male XLR Output 3-Pin Data Input Setup and Operation Modes (LED Display) This fixture includes a filter frame. This frame can be used to hold a gel or filter to better assist in controlling your light beam. -
Page 7: Mode 1: Static Color Selection
Mode 1: Static Color Selection C000 – Display shows The C stands for color. This mode allows user to create a specific static color by allowing you to adjust the level of each RGB color independently. By setting different levels of the RED, GREEN and BLUE LEDS, you will be able to create millions of color combinations. -
Page 8: Dmx-512 Control
DMX-512 Control Fixtures require a "Start Address" from 1 to 512, setting the first DMX channel containing data for the fixture (see DMX Background). Before addressing fixtures, consult the manual of the system’s DMX controller to select a desirable addressing scheme. Valid Start Addresses range from 1 to 512. -
Page 9: Dmx Start Address
DMX Start Address To place the fixture in DMX mode, press the mode key until Addr is displayed. Press enter and using the Up/Down buttons, set the start address number for this particular unit in the DMX chain. Once selected, press ENTER again to save your selection. More than one fixture may have the same start address, but they will behave the same. -
Page 10: 3 : Green
CH 3 : Green Sets relative intensity of Green. CH 3 – Green Actual value subject DMX Value Function Master Dimmer channels. The No Output Color Macro/Scroll Channel will 5-255 Intensity - Off to Full On override this channel. CH 4 : Blue Sets relative intensity of Blue. -
Page 11: 6 : Shutter
140-144 Color Scroll Snap Speed 12 145-149 Color Scroll Snap Speed 13 150-154 Color Scroll Snap Speed 14 155-159 Color Scroll Snap Speed 15 160-164 Color Scroll Snap Speed 16 165-169 Color Scroll Snap Speed 17 (Slowest) 170-174 Color Scroll FADE Speed 1 (Fastest) 175-179 Color Scroll FADE Speed 2 180-184... -
Page 12: Maintenance
Maintenance Make sure fixture is cool and disconnected from power mains before any service. Weekly operating hours and environmental conditions will establish how often the fixtures need cleaning. Fixtures should be cleaned and inspected at least once a month to maintain optimum performance. -
Page 13: Troubleshooting
Data Negative (S- or Cold) are common in the audio industry. In either case, pin numbers are the same and Data Positive (S+ or Hot) carry the same signals. n/c (not used) n/c (not used) 10900 Palmbay Drive • Orlando, FL 32824 U.S.A. www.techni-lux.com...
